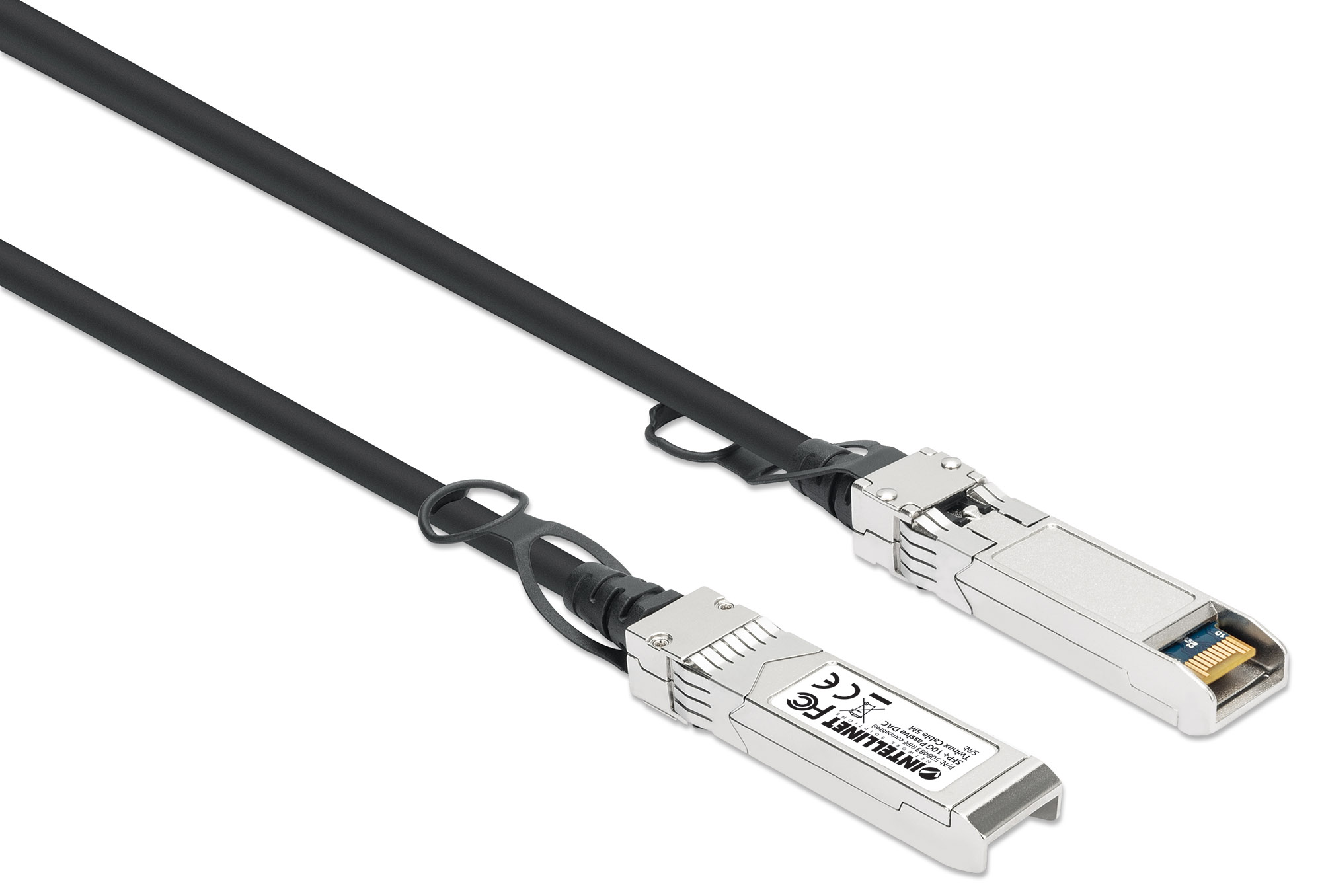

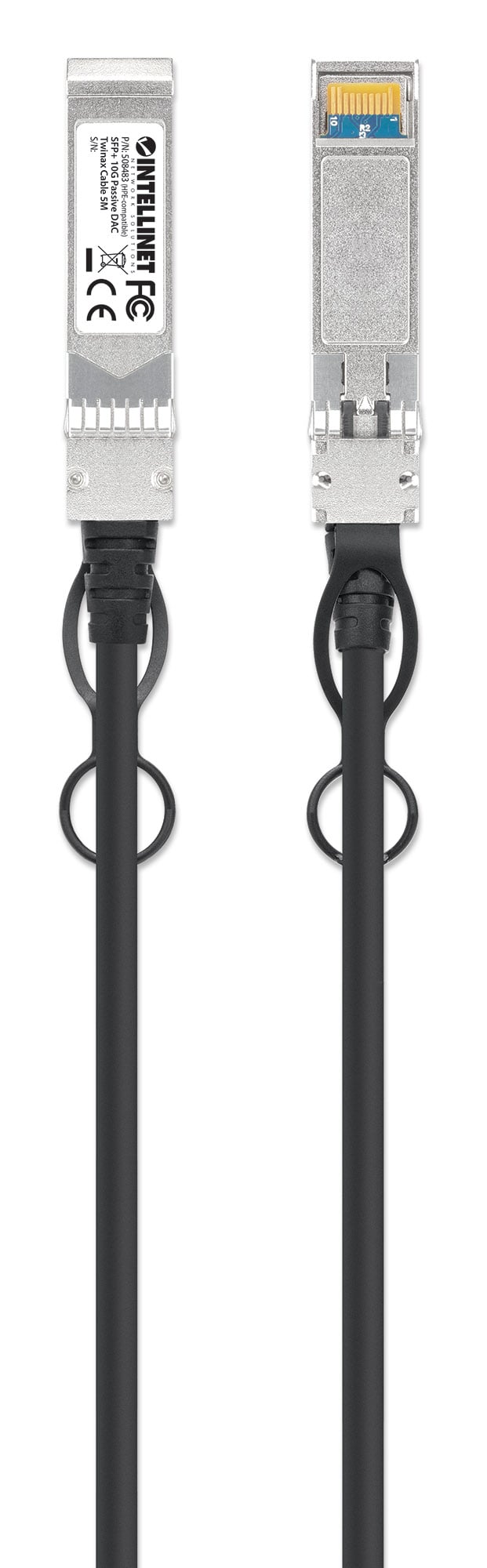

Twinax DAC cable SFP+ 10 G 5 m for HPE - Intellinet ICOC SFP- 050 HP

· Two-axis passive copper cable with direct connection (DAC) for economic, low latency and energy saving connections
· Compatible with HPE Switch and Router (Hewlett Packard Enterprise)
· Two SFP + connectors for data transfer speeds à up to 10 Gbps
· Equivalent to HPE X 242 DAC cable series
· Energy consumption and price significantly lower than optical fibre cables
· Lower signal latency compared to RJ 45 connections
· Simpler ù Cable Implementation in Optical Transmitters with Less Components That Have To Match
· Passive DAC as an ideal option in structured wiring for many applications within short distance up to 7 m
· Does not produce heat and can be used at high operating temperatures up to 70 °C
· Hot-swap for updates or network replacements without interruption

Standards and certifications
· RoHS
· EC
· FCC

General information
· Power consumption: < 0,1 W (for extremeà)
· Applications: 10 Gigabit Ethernet
· Maximum data transfer speed à: 10 Gbps
· Minimum curvature radius: 30 mm (1,18 inch)
· Impedance: 100 Ohm
· Length: 5 m
· Weight: 285 g

Compatible marks
· HPE
· Tested to work with the HPE Aruba switch series, J 9145 , J 9150 , J 9151 , J 9281 , J 9283 and JG 326

Connections:

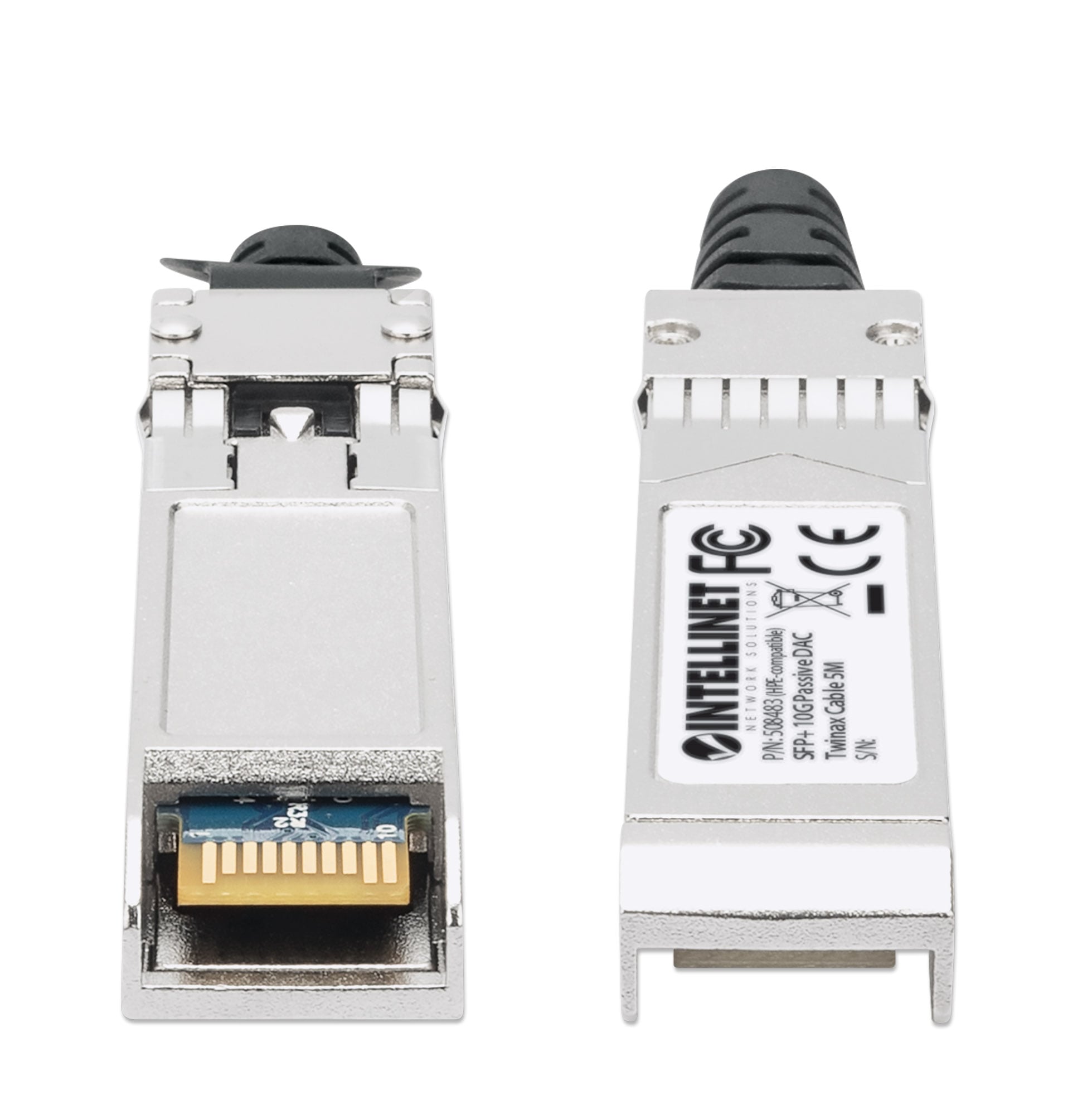

· Two SFP + males

Cable:
· 30 AWG
· Type: passive copper, biaxial
· Coating material: PVC

Environmental features
· Operating temperature: 0 - 70 °C
· Storage temperature: - 40 - 80 °C

Package contents
· Passive Twinax DAC cable
