- Data transfer speed: 100 Mbps
- One 10/100Base-TX RJ45 port, maximum distance 100 m
- RJ45 port with Auto MDI/MDI-X and auto-negotiation support
- ST duplex 100Base-FX multimode fiber optic port
- Supported fiber distance: up to 2 Km (cable 62.5/125 or 50/125 µm)
- Wavelength: 1310nm
- Flow control
- Power status and Link/TX LEDs for both ports
- External power supply, 5V DC
- Three-year warranty
Standard
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
Features - 100Base-TX Cat3 or higher UTP/STP RJ45, EIA/TIA 568
- 100Base-FX multimode with fiber 62.5/125 or 50/125 µm
- One RJ45 port, 100Base-TX
· Distances: - 2 km (fiber cable 62.5/125 or 50/125 µm)
- 100 m (RJ45 cable)
- Wavelength: 1310 nm
- Min. TX power: -22 dBm
- Max. TX power: -12 dBm
- RX sensitivity: -30 dBm
- Signal loss: 2 dB/km
- Certifications: FCC Class B, CE Mark

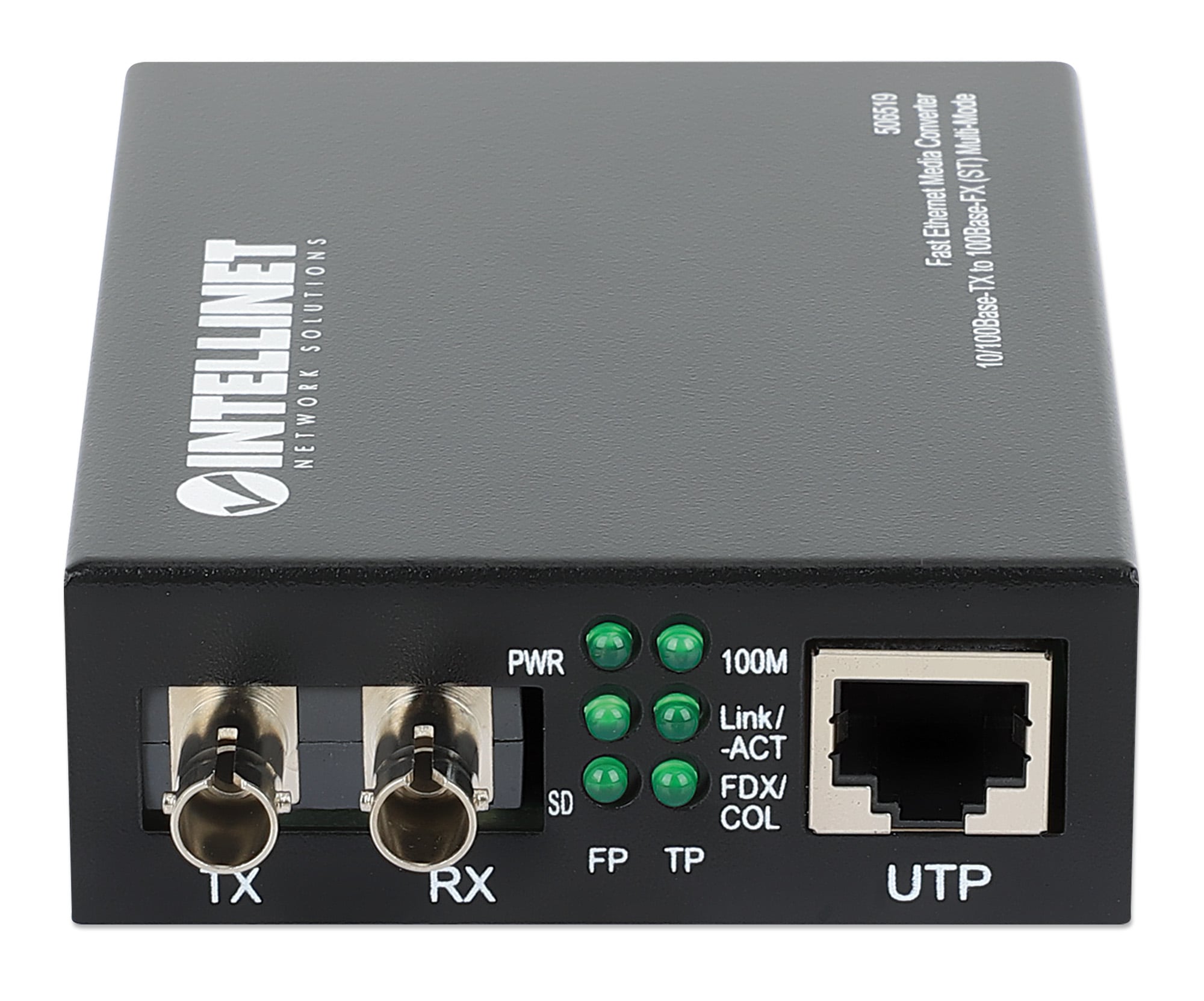

LED- Power
- LINK/ACT for RJ45 port
- LINK/ACT for ST fiber port
- Connection speed indicator 100 Mbps per RJ45 port
- Optical signal input LED
- Full-/Half-Duplex

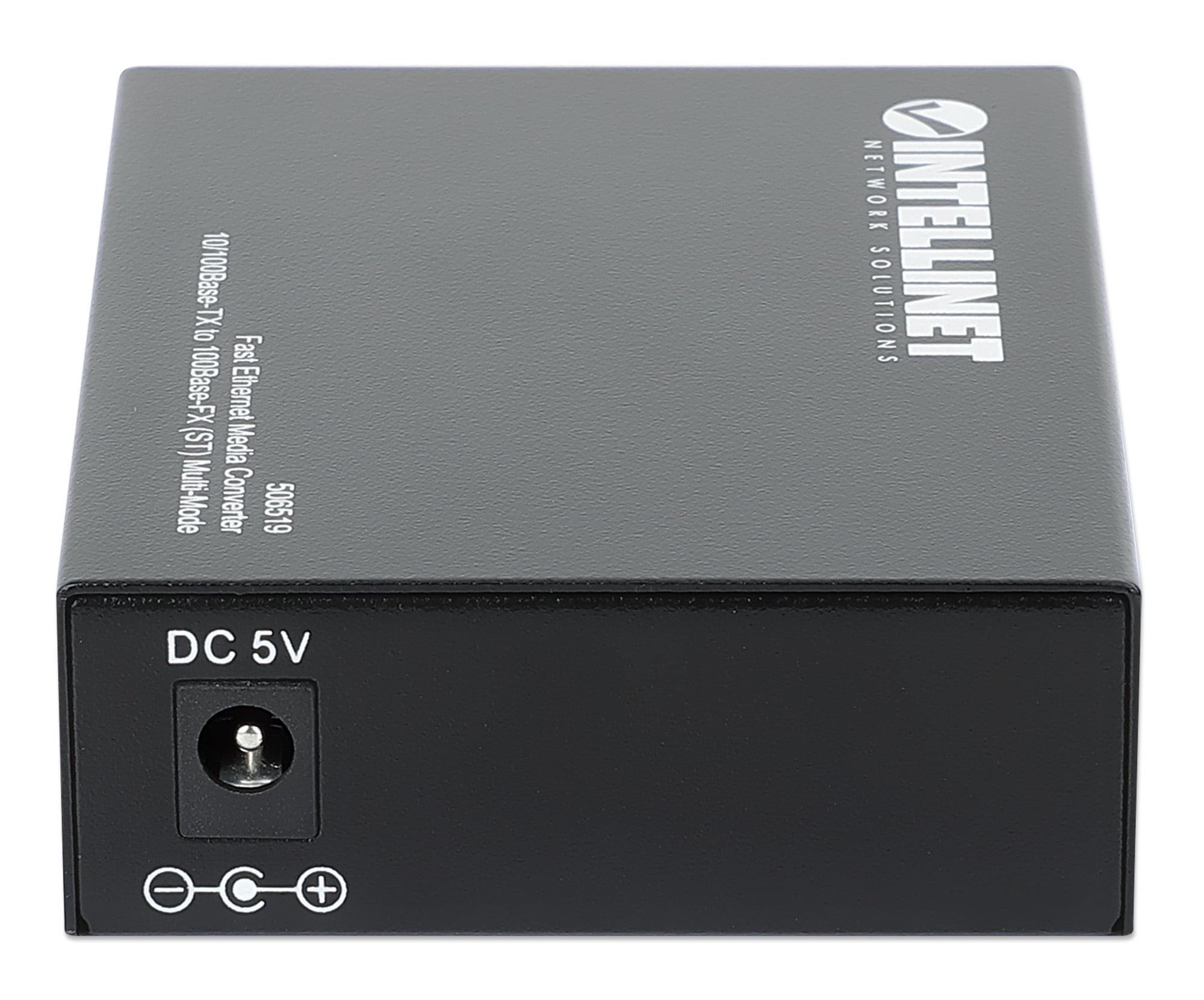

Power- External power supply, 5 V DC, 1 A
- Power consumption: 2.5 Watt (maximum)
Physical information- Metal structure
- Dimensions: 107 (W) x 70 (D) x 26 (H) mm
- Weight: 500 g
- Operating temperature: 0° to 70°C
- Operating humidity: from 10% to 90% RH, non-condensing
- Storage temperature: -45° to 80°C
Package contents- Fast Ethernet Media Converter
- External power supply
- Setting CD
