RG 59 Coaxial Cable for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT- 501 - 150

RG 59 Coaxial Cable for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT- 501 - 150

Name: RG 59 Coaxial Cable for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT- 501 - 150
Brand: CAVEL
SKU: ICOC SAT-501-150
Price: 109.48 EUR
Availability: InStock

€109.48

Tax included

Coaxial cable RG 59 Cavel, 150 meters, 75 Ohm, for SAT and DVB-C systems. Double shielding, white PVC sheath, CPR class Eca. For internal laying.

Return policy

Delivery policy

Direct contact for info

Secure Payment

RG 59 coaxial cable for SAT and DVB-C digital systems in 150 coil mt; 75 Ohm
Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal
For internal laying
For connection or extension of cable or radio TV systems, for example
The cable of the TV antenna è compliant with the CPR (Regulation on construction products), then corresponds to the class of fire protection Eca
Double shielding TV cable for interference-free transmission
With metric indication on the cable itself

Technical Specifications

Type of cable: coaxial cable RG 59
Impedance: 75 Ω
CPR-compliant sec. EU 305 / 2011 (DoP), Eca Class
Standards: EN 50117 - 9 - 2 ; CEI-UNEL 36762
Reaction to fire: EN 50575
Markings: ECA_CPR, CE, Rohs

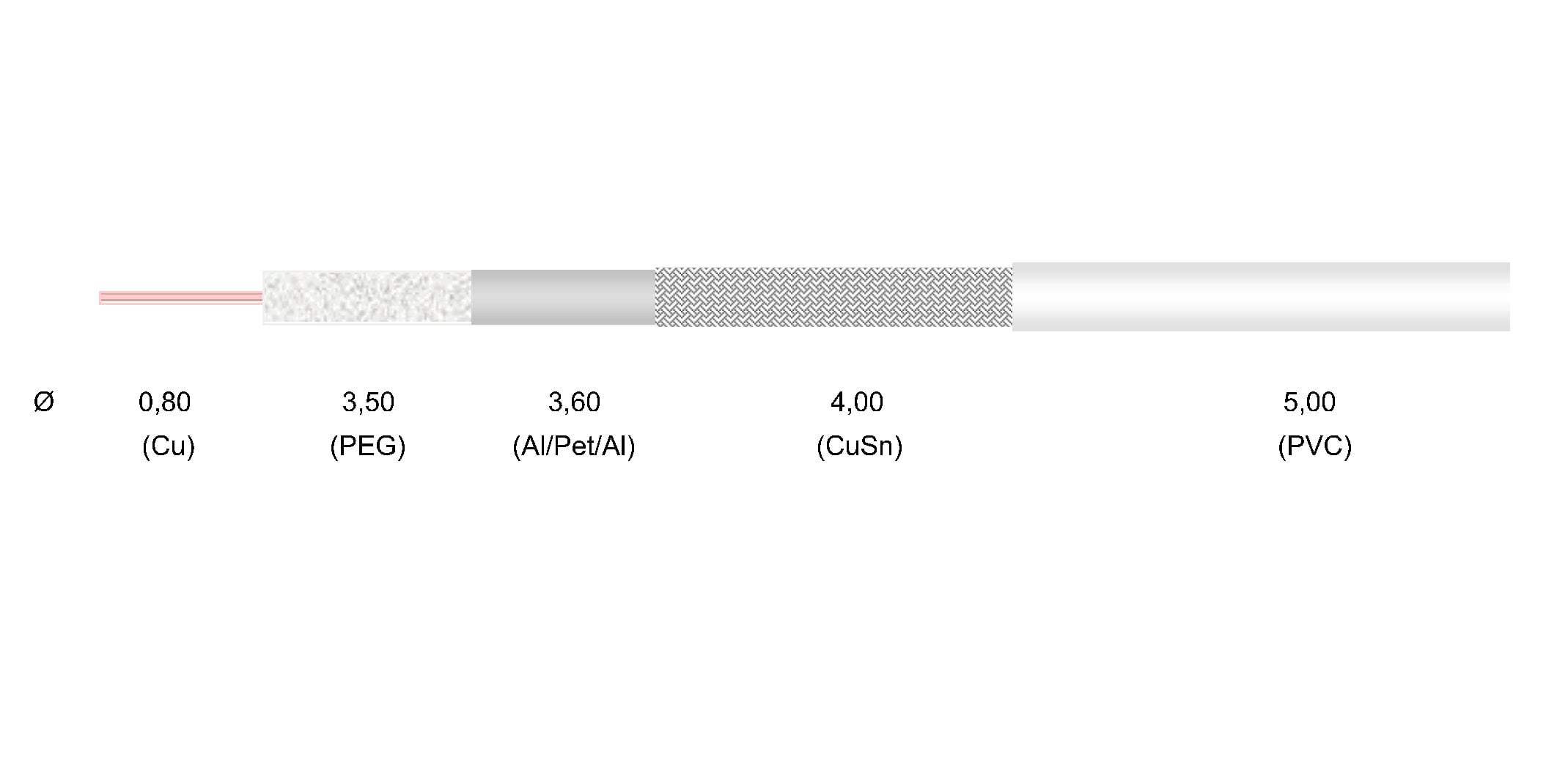

Inner conductor in red copper ø 0,80 mm
Dielectric diameter: ø 3,5
Double aluminium shielding: strip in aluminium/polyester/aluminium wrapped longitudinally (Al/Pet/Al) with diameter 3,60 mm and braid in tinned copper wire (CuSn) with diameter 4 mm
Outer sheath material: PVC
Cable sheath diameter: 5 mm approx.
Minimum laying temperature - 5 °C
Operating temperature: - 20 / 70 °C
With metric scale
Color: white
Length: 150 meters
