Coaxial cable RG 59 4 K-UHD for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT-DG 80 - 150

Coaxial cable RG 59 4 K-UHD for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT-DG 80 - 150

Name: Coaxial cable RG 59 4 K-UHD for Satellite and Digital Reception in Matassa 150 m - Cavel IOC SAT-DG 80 - 150
Brand: CAVEL
SKU: ICOC SAT-DG80-150
Price: 128.3 EUR
Availability: InStock

€128.30

Tax included

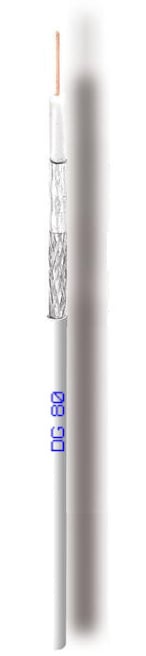

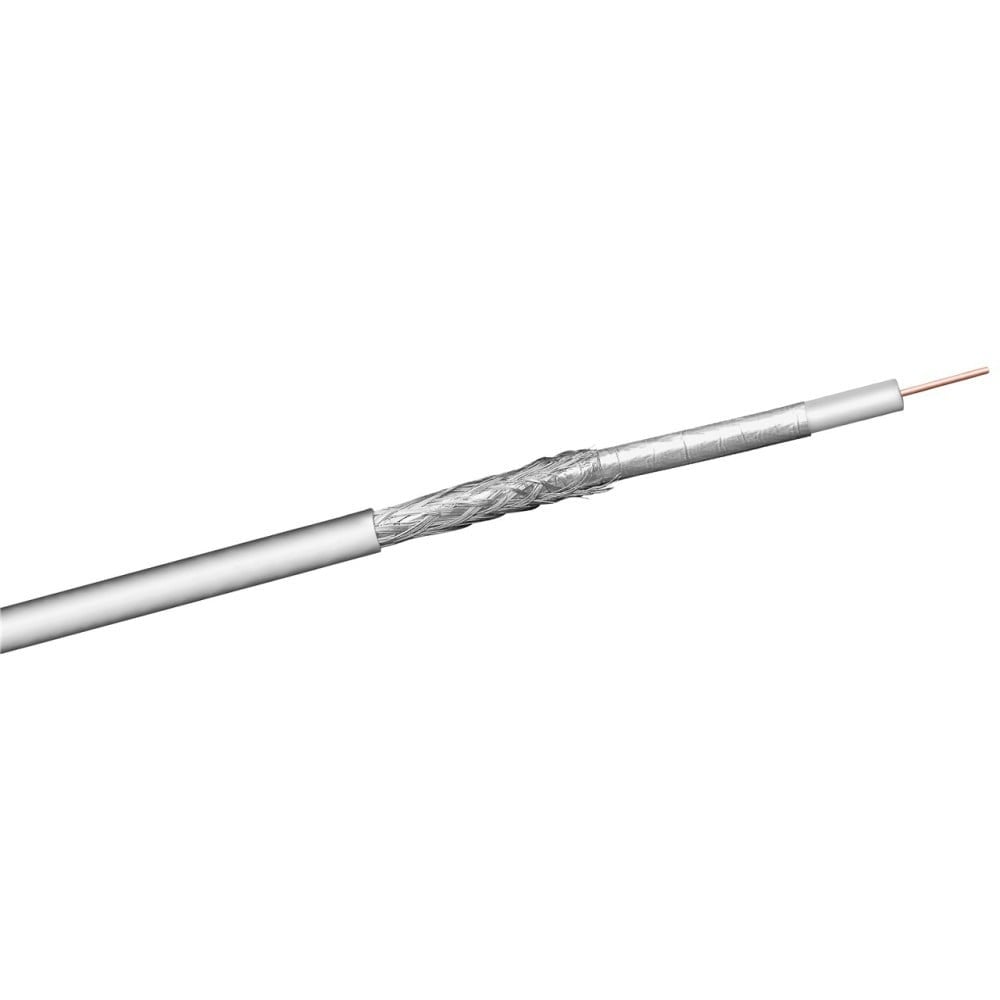

Coaxial cable RG 59 Cavel, 150 meters, 75 Ohm, for SAT and DVB-C 4 K-UHD systems. Double shielding (class A), white PVC sheath, class CPR Eca. For internal laying.

Coaxial cable RG 59 , 4 K-UHD, for digital coil systems from 150 mt; 75 Ohm
Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal
For internal laying, 4 K-UHD
For connection or extension of cable or radio TV systems, for example
The cable of the TV antenna è compliant with the CPR (Regulation on construction products), then corresponds to the class of fire protection Eca
Double shielding TV cable for interference-free transmission (Class A shielding attenuation)
With metric indication on the cable itself

Technical Specifications

Type of cable: coaxial cable RG 59
Impedance: 75 Ω
CPR-compliant sec. EU 305 / 2011 (DoP), Eca Class
Standards: EN 50117 - 9 - 2 ; CEI-UNEL 36762
Reaction to fire: EN 50575
Markings: ECA_CPR, CE, Rohs,

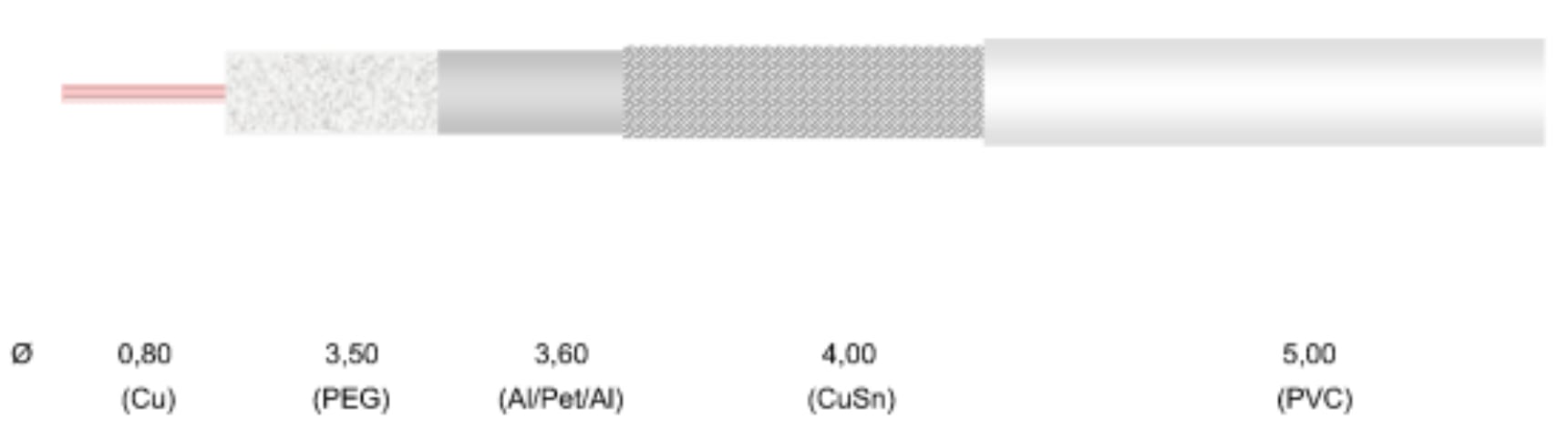

Inner conductor in red copper ø 0,80 mm
Dielectric diameter: ø 3,5
Aluminum double shielding: aluminium/polyester/aluminium tape wrapped longitudinally (Al/Pet/Al) diameter 3,60 mm and tinned copper wire braid (CuSn) diameter 4,00 mm
Outer sheath material: PVC
Cable sheath diameter: 5 mm approx.
Minimum laying temperature - 5 °C
Operating temperature: - 20 / 70 °C
With metric scale
Color: white
Length: 150 meters
