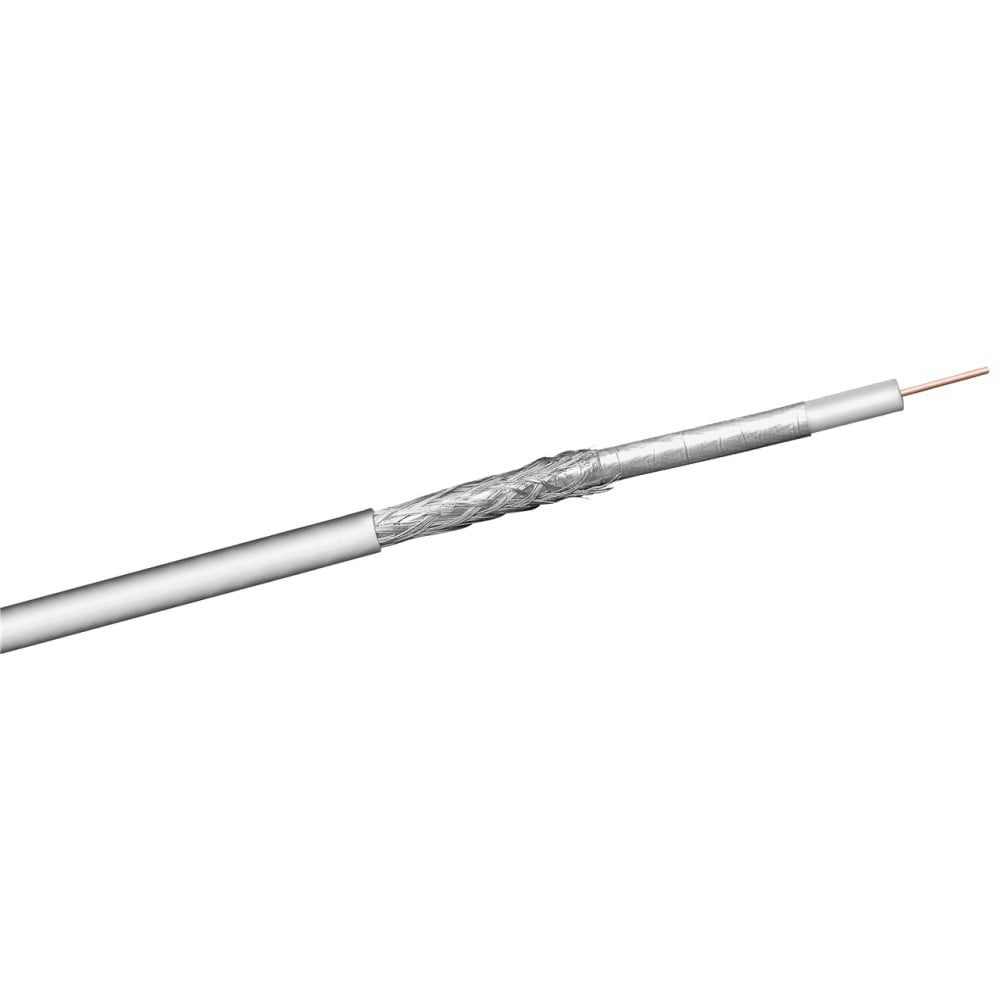

RG 6 + Coaxial Cable for Satellite and Digital Reception in Matassa 100 m - Cavel IOC SAT- 703 - 100

•

• RG 6 + coaxial cable for SAT and DVB-C digital systems in 100 coil

• Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal

• For internal laying

• For connection or extension of cable or radio TV systems, for example

• The cable of the TV antenna è compliant with the CPR (Regulation on construction products), then corresponds to the class of fire protection Eca

• Double shielding TV cable for interference-free transmission

• With metric indication on the cable itself


Technical Specifications

•

• Type of cable: coaxial cable RG 6 +

• Impedance: 75 Ω

• CPR-compliant sec. EU 305 / 2011 (DoP), Eca Class

• Standards: EN 50117 - 9 - 2 ; CEI-UNEL 36762

• Reaction to fire: EN 50575

• Markings: ECA_CPR, CE, Rohs

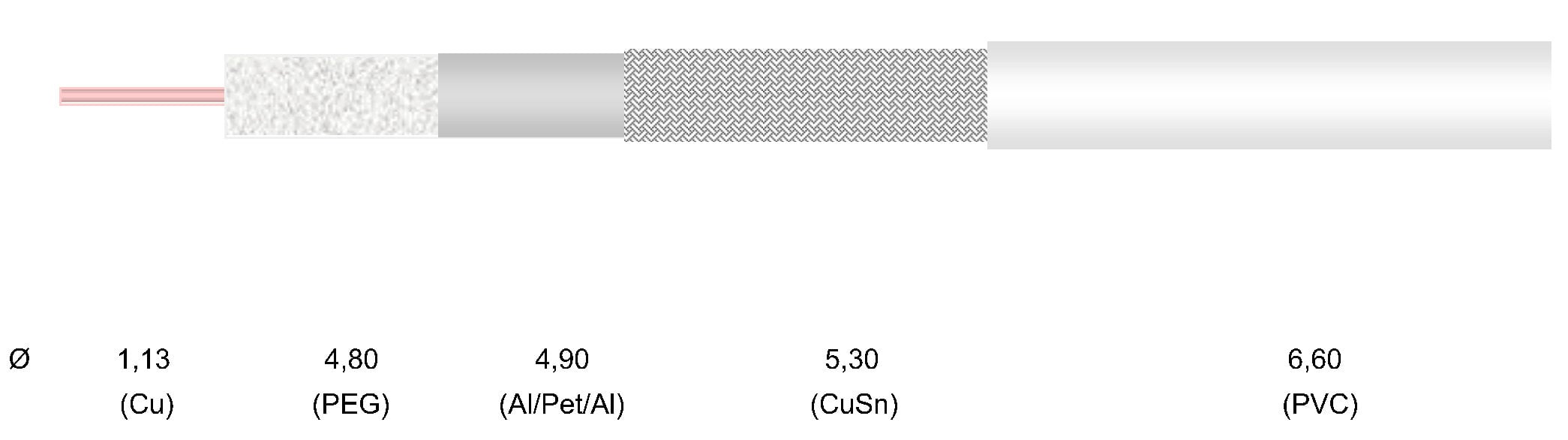

• Inner conductor in red copper ø 1,13 mm

• Dielectric diameter: ø 4,8

• Aluminum double shielding: aluminium/polyester/aluminium tape wrapped longitudinally (Al/Pet/Al) diameter 4,90 mm and tinned copper wire braid (CuSn) diameter 5,30 mm

• Outer sheath material: PVC

• Cable sheath diameter: 6,6 mm approx.

• Minimum laying temperature - 5 °C

• Operating temperature: - 20 / 70 °C

• With metric scale

• Color: white

• Length: 100 meters
