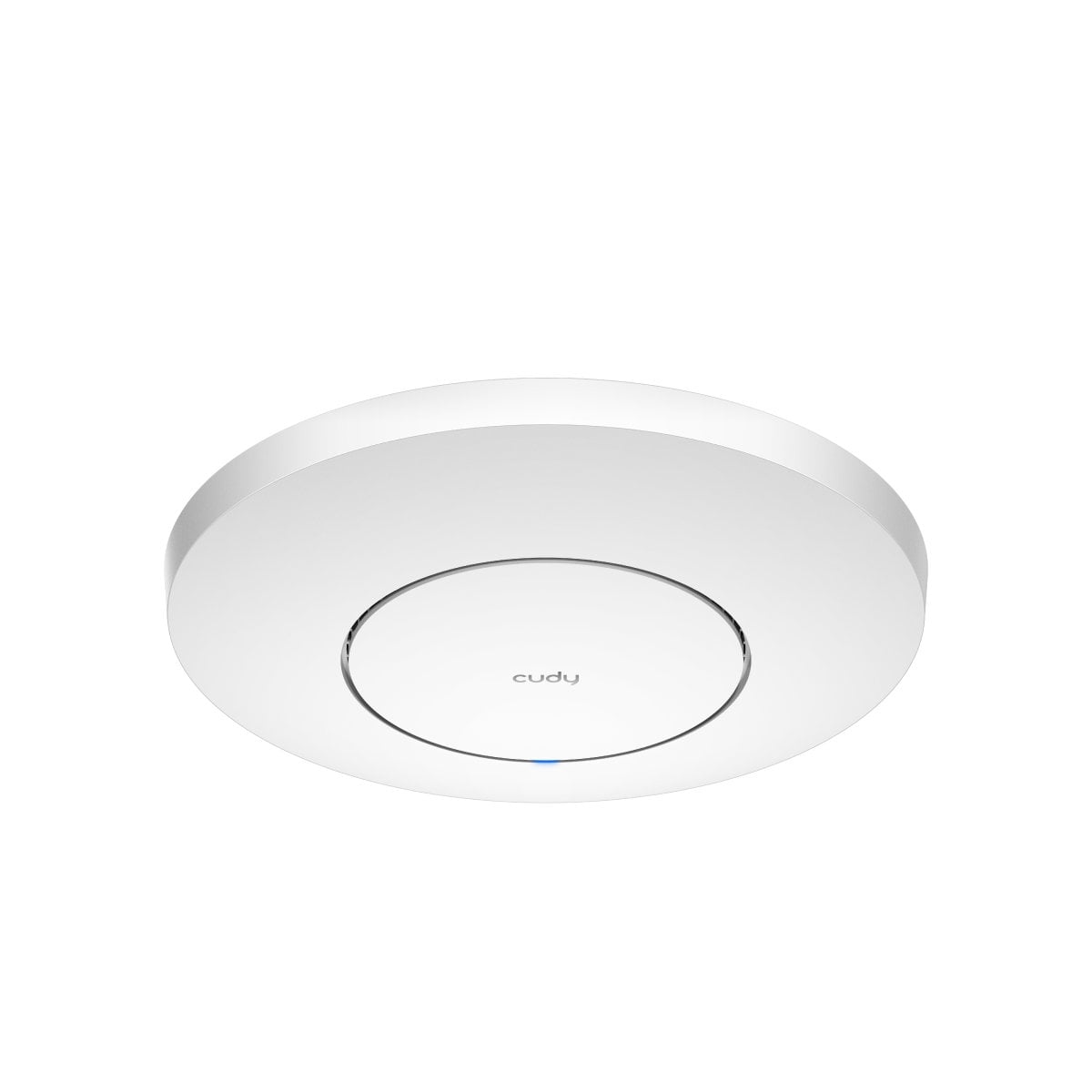

Wireless Access Point Multi-Gigabit Tri-band WiFi 7 BE 11000 Mesh in Wall/Suffering, AP 11000 - Cudy ICU-AP 11000

•

• Access Point multi-Gigabit 11000 Mbps Tri-band WiFi 7 Mesh

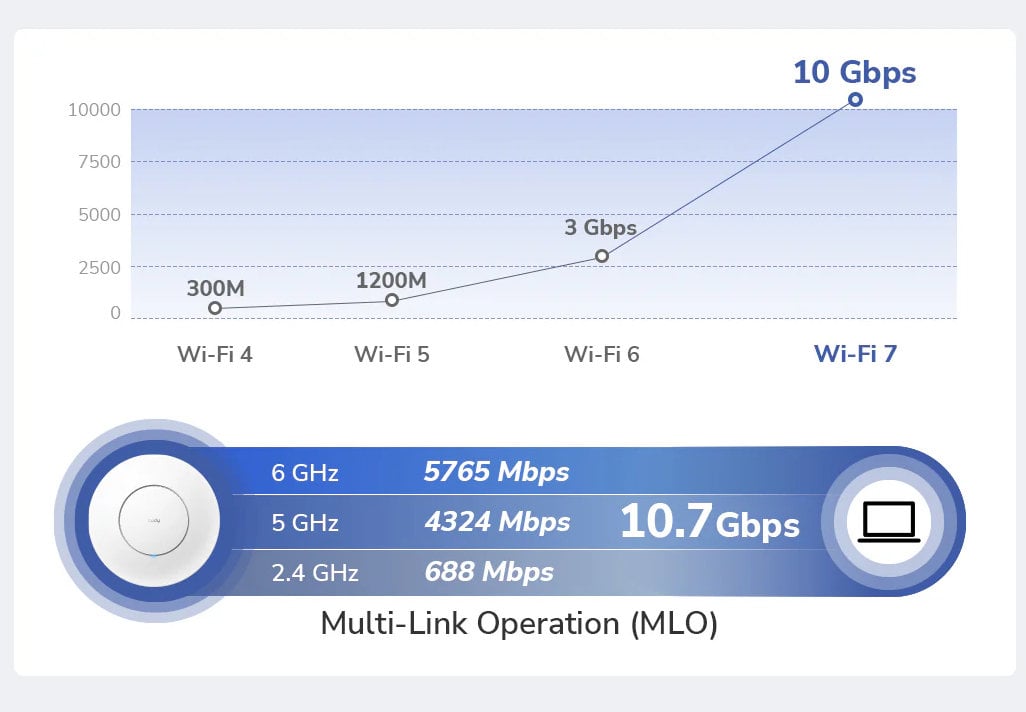

• 5765 Mbps simultaneous on 6 GHz, 4324 Mbps on 5 GHz, 688 Mbps on 2,4 GHz for a total of speed à 10777 Mbps Wi-Fi (the actual speedà wireless varier&agrave data; based on network conditions, client limitations and environmental factors including building layout, obstacles and client position)

• The 6 GHz extended band offers up to 2,4 times more ù channels compared to the 5 GHZ band, allowing the AP 11000 to achieve speed à unprecedented and manage more ù client devices in interference-free environments. Perfect for high density business environmentsà

• 1 Slot SFP+ from 10 G, 1 Poe input shielded by 2,5 G; max channel from 320 MHz

• Flexible power supply: supports 802.3 at, PoE passive 48 - 57 V or DC 12 V 2 A

• Multi SSID for increased security

• Advanced wireless technology: optimizes network performance with MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color, Beamforming technologies

• Watchdog hardware: automatically restarts the AP when the software crashes; reboot schedule

• Cudy Mesh: connect with Cudy Mesh/AP Controller to enable fast roaming; up to 300 connected devices

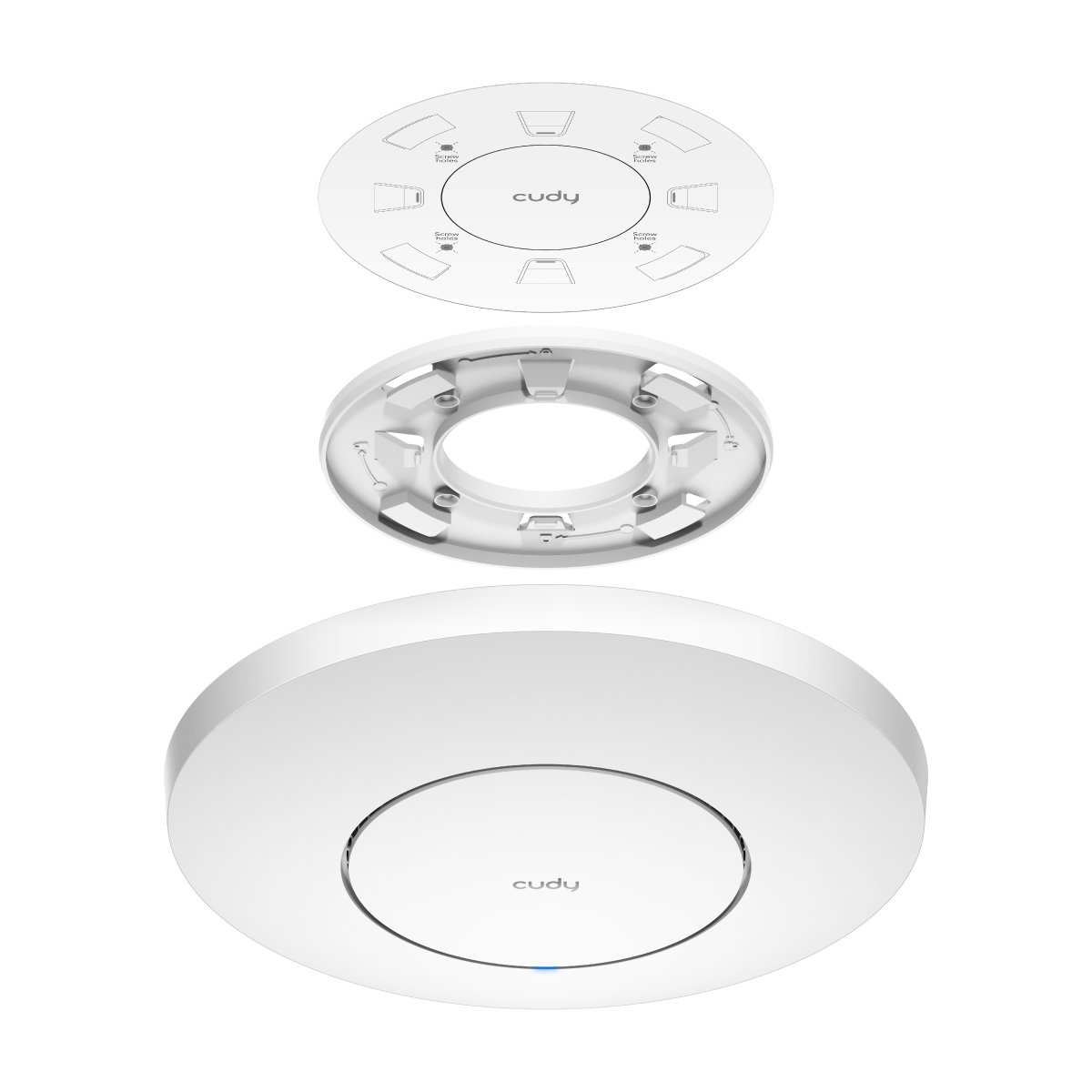

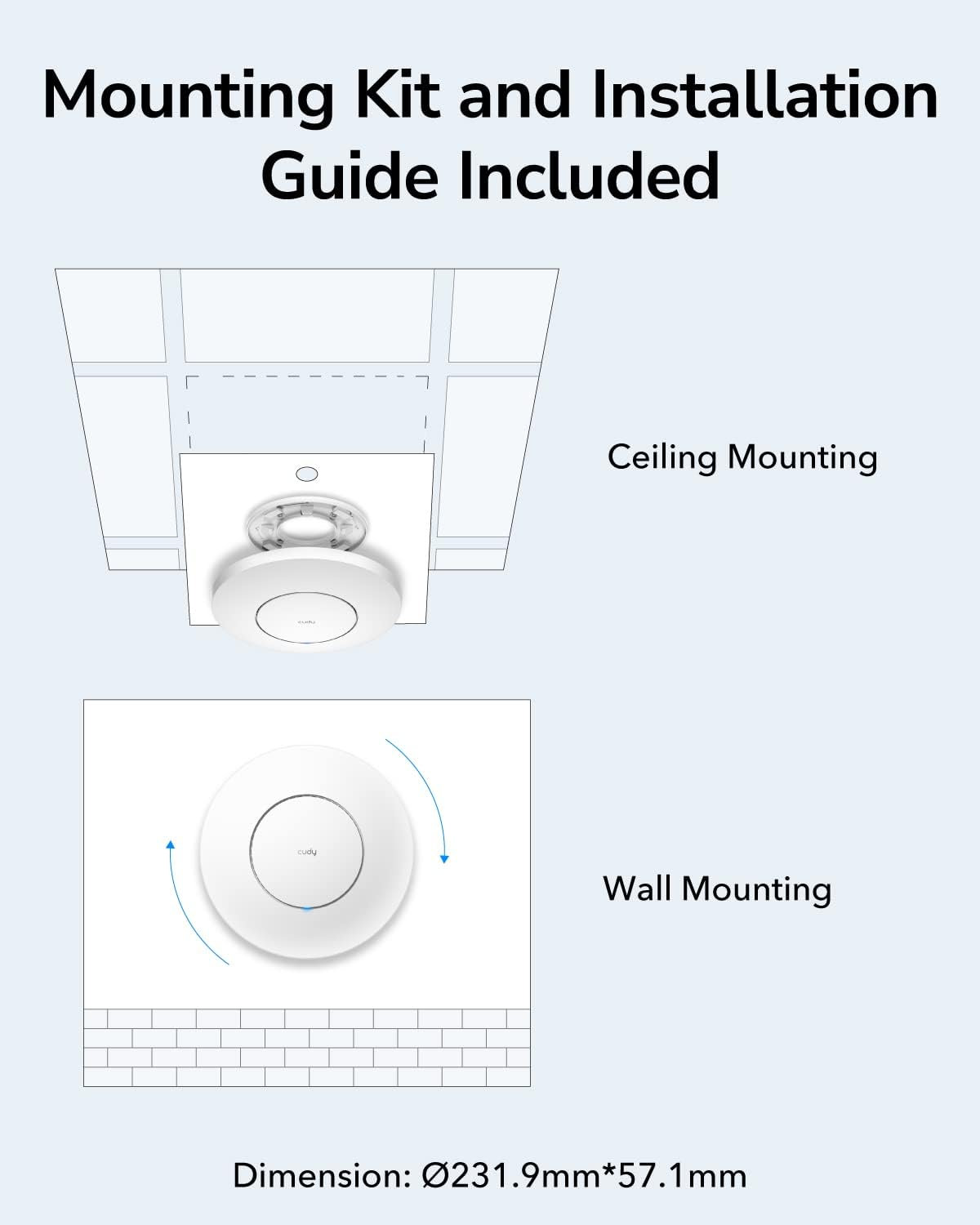

• Ceiling/wall mounting (kit included)

• Color: white


Technical specifications

•

• Wi-Fi 7

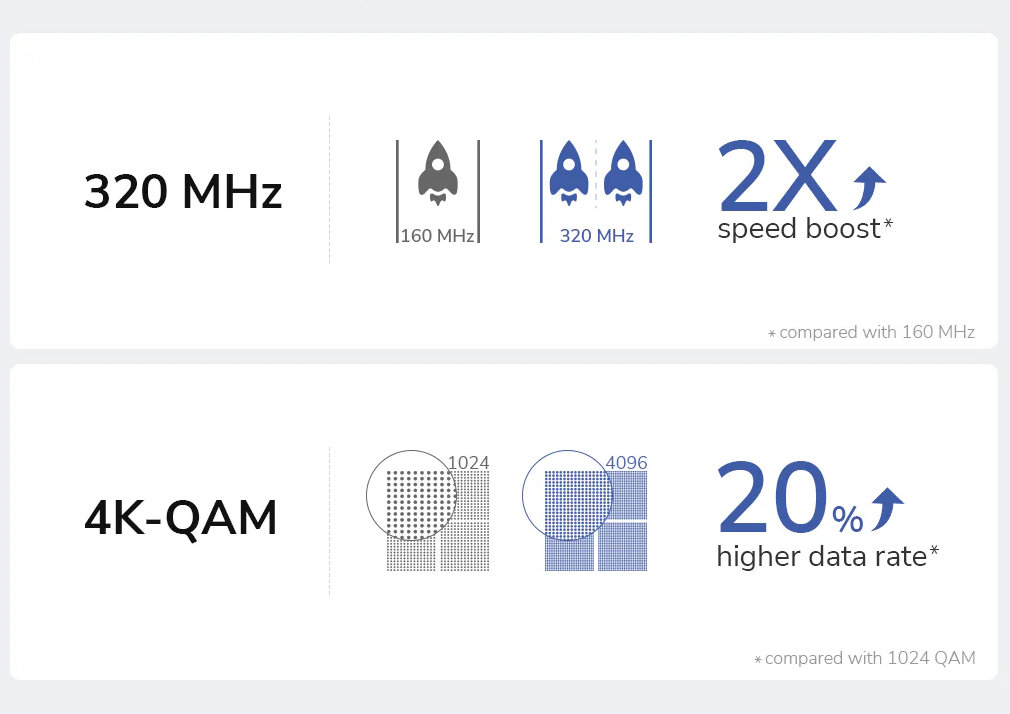

• Maximum Wi-Fi Modulation: 4 K-QAM

• 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, 688 Mbps on 2,4 GHz

• Maximum Wi-Fi channel width: 320 MHz

• CPU: Quad-Core from 1,5 GHz

• Flash/ROM: NAND from 128 MB (1 Gbit)

• DDR/RAM: 512 MB (4 Gbit) DDR 4

• Wi-Fi flows at 6 GHz: 2 T 2 R (2 × 2 MIMO)

• Wi-Fi flows at 5 GHz: 2 T 2 R (2 × 2 MIMO)

• 2,4 GHz Wi-Fi Flows: 2 T 2 R (2 × 2 MIMO)

• 6 internal antennas

• Maximum antenna gain 6 GHz: 5,5 dBi

• Maximum antenna gain 5 GHz: 4,9 dBi

• Maximum antenna gain 2,4 GHz: 5,8 dBi

• Autonomy performance: max: 260 m (tested in open environments with minimal interference; the actual WiFi flow can & grave; vary depending on the layout and materials of the walls. Refer to the specifications on the performance of the walls for positioning tips)

• Wall performance: two wooden walls with thickness < 10 cm (4); one concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)

• Maximum energy consumption: 20 W; Inactive energy consumption: 12 W


Wireless functions

•

• Fast Roaming

• Transmission of power control

• MLO

• MRU

• Puncturing

• OFDMA

• MU-MIMO

• BSS Color

• Reboot Planning

• Wireless programming


Wireless Encryption

•

• WPA

• WPA 2

• WPA 3


Modelità operational

•

• Modelità Wi-Fi router

• Modelità access point

• Wireless Extension Modelità

• Cudy Mesh, with automatic mesh optimization: automatically creates backhaul mesh via less congested paths


Environmental features

•

• Operating temperature: 0 ~ 40 °C

• Storage temperature: - 40 ~ 70 °C

• Humidità operating: 10 ~ 90 % without condensation

• Storage humidità 5 ~ 95 % without condensation


Dimensions

•

• Width: 231,9 mm

• Depthà: 231,9 mm

• Height: 57,1 mm


Package contents

•

• Wireless Access Point BE 11000 WiFi 7 ICU-AP 11000

• Power adapter

• Assembly kit

• Ethernet cable

• Installation Guide
