Switch Gigabit PoE+ 8 Doors with 2 Uplink GbE and 2 SFP - Cudy ICU-GS 1010 PS 2

•

• Switch 8 ports Gigabit PoE+, 2 ports Uplink GbE and 2 slots Uplink SFP Gigabit

• Power supply from 120 W (52 V 2.3 A) and silent cooling system

• Consistent with the IEEE 802.3 af standard (15.4 W) / 802.3 at (30 W); each PoE port delivers up to 30 W of power making it suitable for access points, IP cameras, digital signage and most other PoE devices

• PoE port priorityà simplifies device power management

• For long distance networks, è can enable the mode à Extend to connect clients up to 250 meters away, limiting the speed à ports 7 - 8 to 10 Mbps

• Watchdog hardware è active on all PoE ports (reset PoE clients not reactive when mode à Extended è active)

• Plug and Play

• Solid metal housing that supports desktop or rack positioning via brackets (not included in the package)


Technical specifications

•

• Power supply: AC 100 - 240 V 50 / 60 Hz; 120 W

• Maximum power excluding PoE: 10 W

• Protocols Poe: IEEE 802.3 (10 Base-T); IEEE 802.3 u (100 Base-TX); IEEE 802.3 ab (1000 Base-TX); IEEE 802.3 x (Flow control); IEEE 802.3 z (Gigabit Ethernet Fiber Standard)

• Maximum power for each door: 30 W

• Velocità and supported distance:

• 10 Base-T: Cat 3 , 4 , 5 or higher UTP (≤ 100 m)

• 100 Base-TX: Cat 5 or higher UTP (≤ 100 m)

• 1000 Base-TX: Cat 5 or higher UTP (≤ 100 m)

• Multimodal optical fibre: 50 / 125 , 62,5 / 125 , 100 / 140 um

• Single-mode optical fibre: 8 / 125 , 8.7 / 125 , 9 / 125 , 10 / 125 um

• MAC: 2048 (2 K)

• Bandwidth: 24 Gbps

• Velocità Package Forwarder: 17856 Mpps

• Memory Cache: 448 Kbit

• Jumbo Frame: 15 KB

• Package buffer memory: 448 Kbit


Environmental features

•

• Operating temperature: - 10 ~ 50 °C

• Storage temperature: - 40 °C ~ 70 °C

• Umidità operating: 10 ~ 90 %, without condensation

• Storage humidità 5 ~ 90 %, without condensation


Dimensions

•

• Width: 220 mm

• Depthà: 161 mm

• Height: 44,5 mm

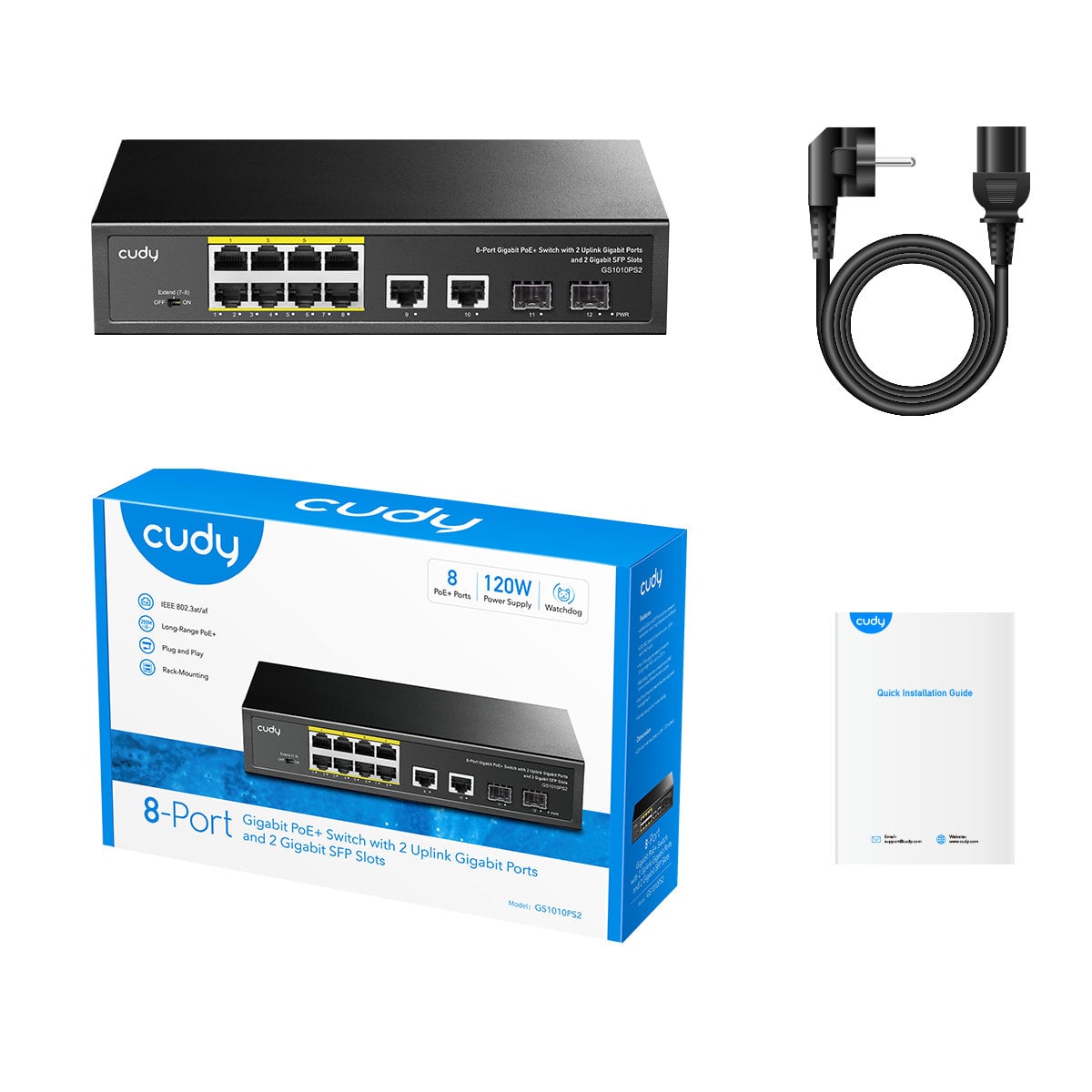

Package contents

•

• Gigabit PoE+ 8 Switch Doors with 2 GBE 2 and 2 Gigabit SFP ICU-GS 1010 PS 2

• Power cable

• User manual
