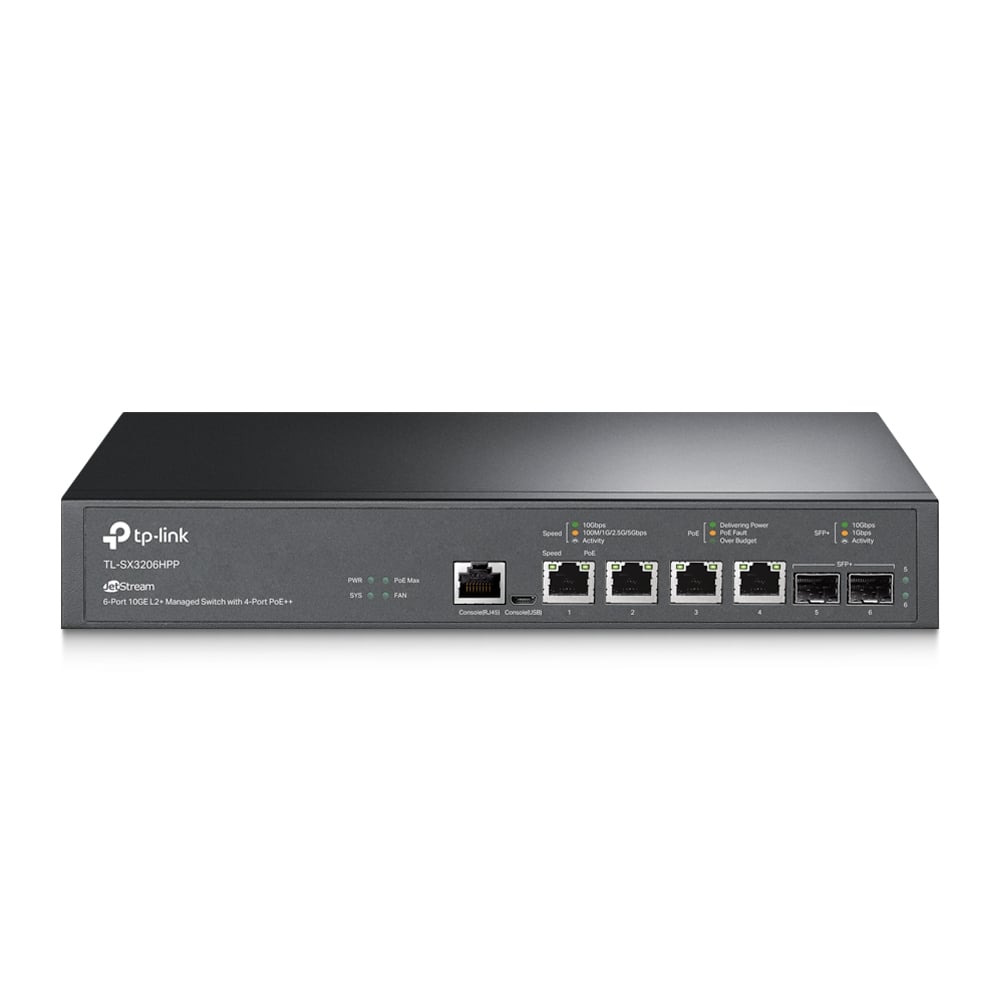

Switch Managed L 2 + with 2 Doors 10 GE SFP+ and 4 Doors 10 GE PoE++ Jet Stream - TP-Link ICTP-TL-SX 3206 HPP

•

• Connectivityà 10 GE - 4 Porte RJ 45 10 G PoE++ and two slots 10 G SFP+, ideal for enterprise-level installations in scenarios that require high bandwidth.

• High Power Budget PoE++; 4 doors 10 G PoE++ 802.3 af/at/bt PoE++ with total power budget up to 200 W, up to 60 W for single door. The ideal choice for connecting Access Point Wi-Fi 6 and Wi-Fi 6 E

• Functionalityà L 2 and L 2 +; Supports a complete lineup of functionalityà L 2 and L 2 + as Static Routing, QoS enterprise level, IGMP Snooping and much more.

• Advanced security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1 X Authentication and more

• Static Routing: Static routing allows you to optimize network resources by setting internal connection paths predefined by the administrator

• Omada SDN integrated device: Omada Software-Defined Networking solution allows you to manage Omada networks with modes à Hybrid-Cloud and Full-Cloud. Integra Access Point of the EAP series, VPN router and Switch

• Standalone Management: Web Support, CLI (Port Console, Telnet, SSH), SNMP, RMON, and Dual Image

• Design with 2 fans

• Resistant metal housing, for rack or desktop installation


Technical specifications

•

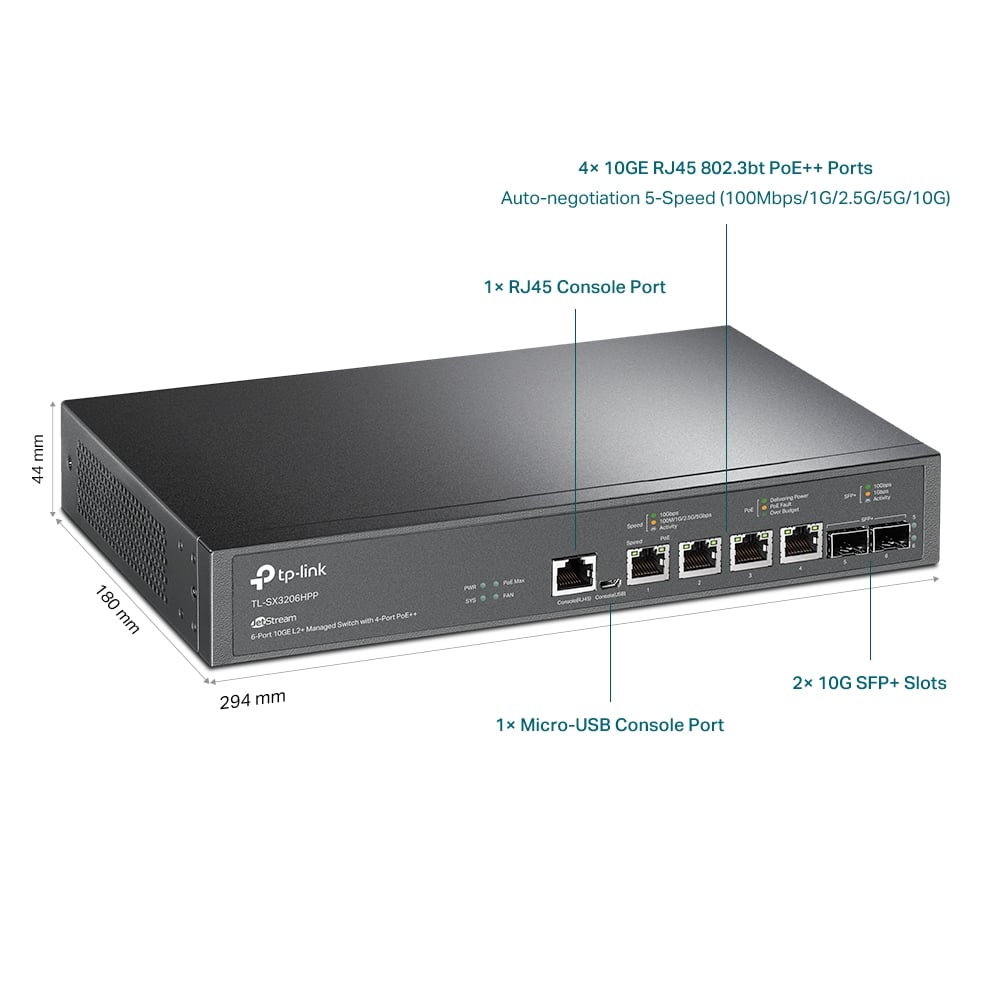

• Interfaces: 4 doors 100 M/ 1000 M/ 2.5 G/ 5 G/ 10 Gbps RJ 45 and 2 Slot 10 GE SFP+

• Console: 1 console holder RJ 45 , 1 console holder micro-USB

• LED: Power supply; Speed/Link/ACT for each port; safety lock

• Flash Memory: 32 Mbit

• DRAM: 256 MB

• Capacità switching: 120 Gbps

• Velocità Package Forwarder: 89,28 Mpps

• MAC Address Table: 32 K

• Transmission method: storage and forwarding

• Frame jumbo 9 KB


PoE

•

• Standard PoE 802.3 af/at

• PoE doors: 4 , up to 60 W per door

• PoE Power Budget: 200 W


Feeding

•

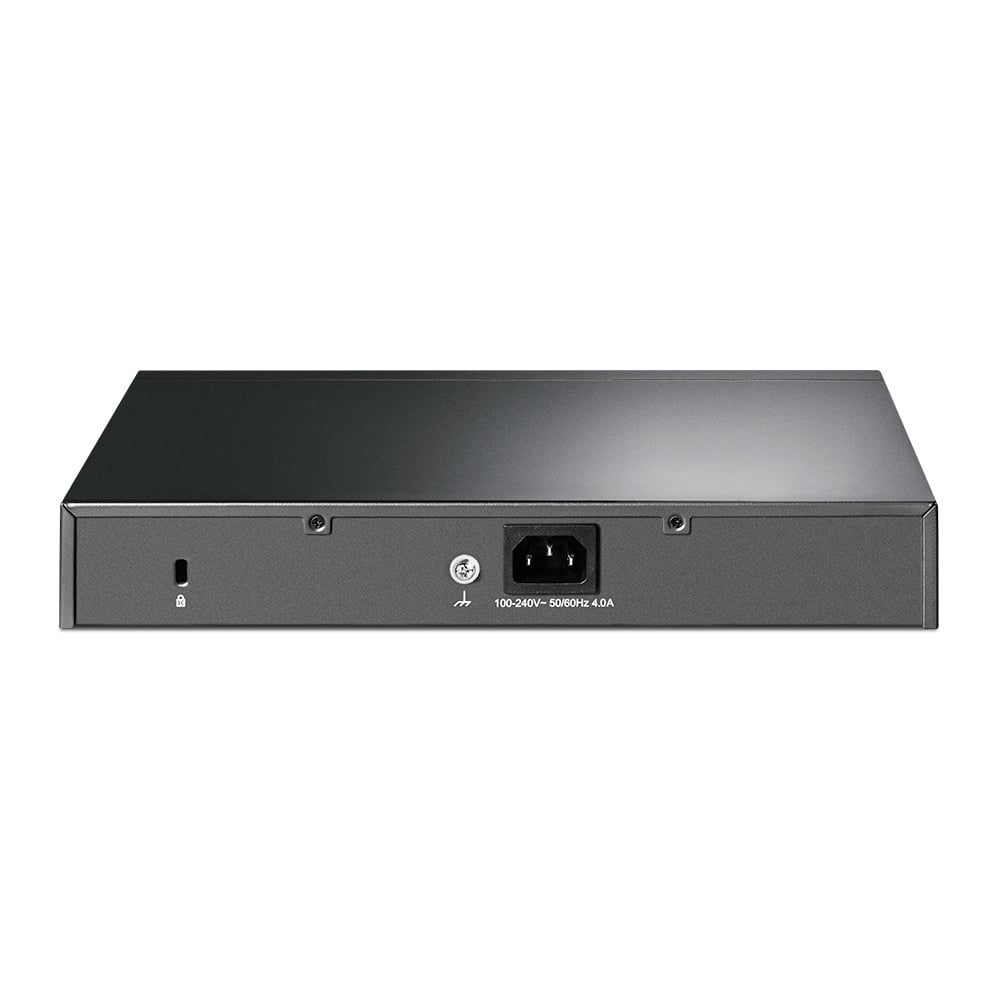

• Power input: 100 - 240 V AC, 50 / 60 Hz

• Maximum power consumption: 27.29 W (110 V/ 60 Hz) (without PD connection); 244.90 W (110 V/ 60 Hz) (with PD connection from 200 W)

• Inactive energy consumption: 13.52 W (110 V/ 60 Hz)


Switching

•

• IEEE 802.3 u: 100 BASE-X Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 bz: 2.5 GBASE-T Ethernet

• IEEE 802.3 an: 10 GBASE-T Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (Optic Fiber)

• IEEE 802.3 ae: 10 Gigabit Ethernet over fiber


SDN Support

•

• Support Hardware Controller, Software Controller

• Automatic Device Discovery

• Batch configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedules


Specifications L 3 /L 2 /L 2 Multicast/ACL/Security/ISP/IPv 6 Support/MIBs

•

• See Datasheet


VLAN

•

• VLAN Group (802.1 q VLAN); Max 4 K VLAN Groups

• 802.1 Q Tagged VLAN

• MAC VLAN: 30 entries (10 entries for TL-SG 3210 XHP-M 2)

• Protocol VLAN: Protocol Template 16 , Protocol VLAN 16 (Protocol Template 16 and Protocol VLAN 12 for TL-SX 3008 F and TL-SX 3016 F)

• Private VLAN

• GVRP

• VLAN VPN; VLAN Mapping; VLAN Replace

• Voice VLAN


QoS

•

• 8 priority queues

• 802.1 p CoS/DSCP priority

• Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR

• Bandwidth Control; Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows; QoS mark (802.1 P Remark, DSCP Remark)


Management

•

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv 1 /v 2 c/v 3 ; Trap/Inform; RMON (1,2 , 3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1 ab LLDP/LLDP-MED

• DHCP Auto Install

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log


Environmental Characteristics

•

• Operating temperature: from 0 °C to 50 °C

• Storage temperature: from - 40 °C to 70 °C

• Operating Humidità from 10 % to 90 % relative humidity without condensation

• Storage humidità from 5 % to 90 % relative humidità without condensation


Dimensions

•

• Width: 294 mm

• Depthà: 180 mm

• Height: 44 mm


Package contents

•

• Switch Managed L 2 + with 2 Doors 10 GE SFP+ and 4 Doors 10 GE PoE++ Jet Stream, ICTP-TL-SX 3206 HPP

• Power cable

• 4 rubber feet

• 2 brackets for rack fastening

• Screws

• User manual
