Extensor KVM on cable Cat 5 150 m - Aten CE 700 A IDATA MTS- 700

Brand new keyboard/mouse/monitor amplifier on Twisted pair cable of Category 5 .

The cable category 5 è the classic used for Ethernet 100 Mbps networks.

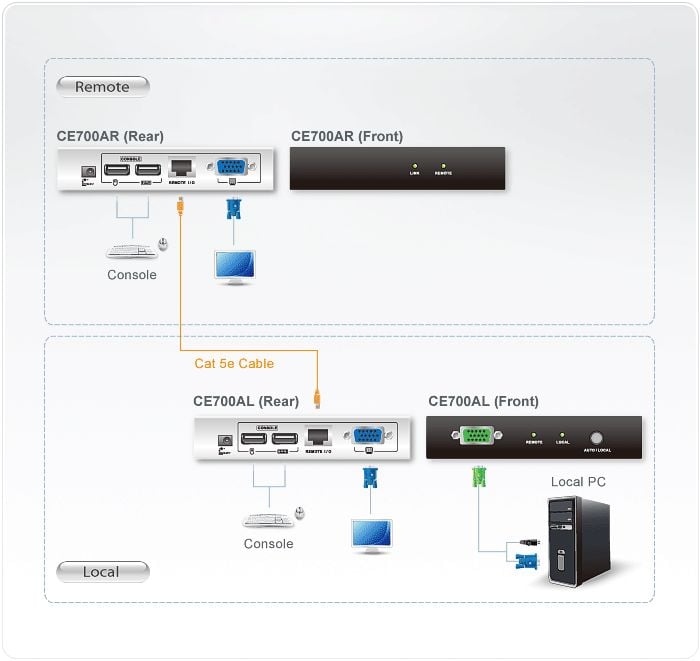

System formed by a local part and a remote part connected by a cable Category 5 up to a maximum distance of 150 meters.



The CE 700 A improves the previous designs: 1 ) incorporating the protection 8 KV/ 15 KV ESD and the protection 2 KV against the current peaks; 2 ) providing higher quality & video & up to 1920 x 1200 resolution; 3 ) using cheap 5 Cat cables and instead of standard cables, more ù expensive and bulky, for a more ù convenient, reliable and stable data connection; 4) being able to detect the distance from the system and automatically adjusting the gain accordingly; and 5 ) having personalized ASIC to ensure maximum reliabilityà and compatibilityà.



Characteristics:

• The system can & grave; connect keyboard/mouse/monitor at a maximum distance of 150 mt.


• Use a Category 5 STP cable indispensably


• Power supply: 100 - 240 V / 5,3 V output


• Dimensions: 125 x 81,5 x 25 mm (LxWxH)


• Weight: 0,32 kg; AR 0,31 kg



Video resolution:

1920 x 1200 @ 60 Hz (30 m)

1600 x 1200 @ 60 Hz (100 m)

1280 x 1024 @ 60 Hz (150 m)

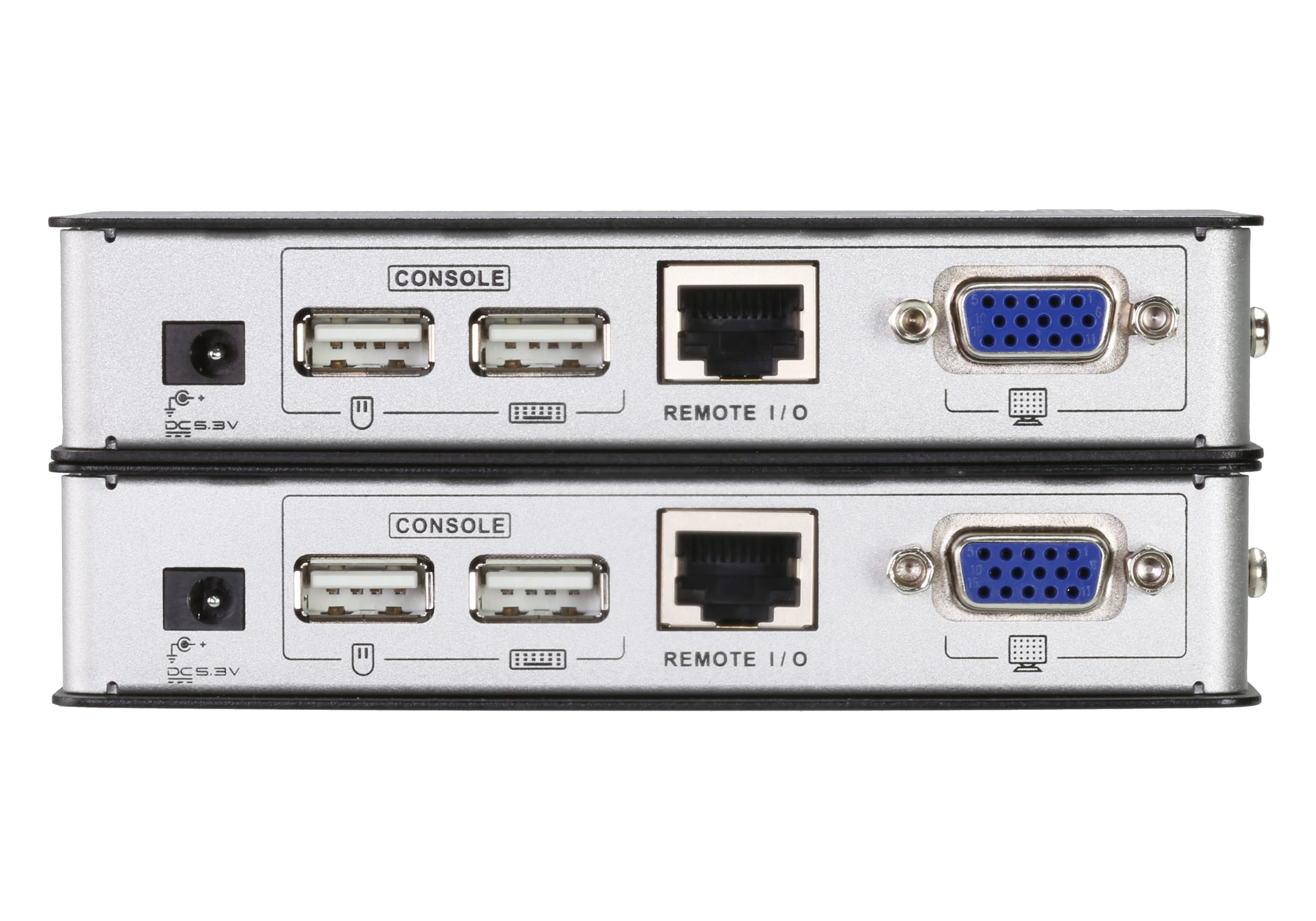

Connections:

• Keyboard: USB A Female


• Mouse: USB A Female


• Video: 15 HDB Female


• Kvm port: SPHD- 17 Female


• Female RJ 45 Port


• Power port


• Connection between units `: Jack 8 poli 8 contacts


• Triple cable included from PC to Extender (Local Unit)

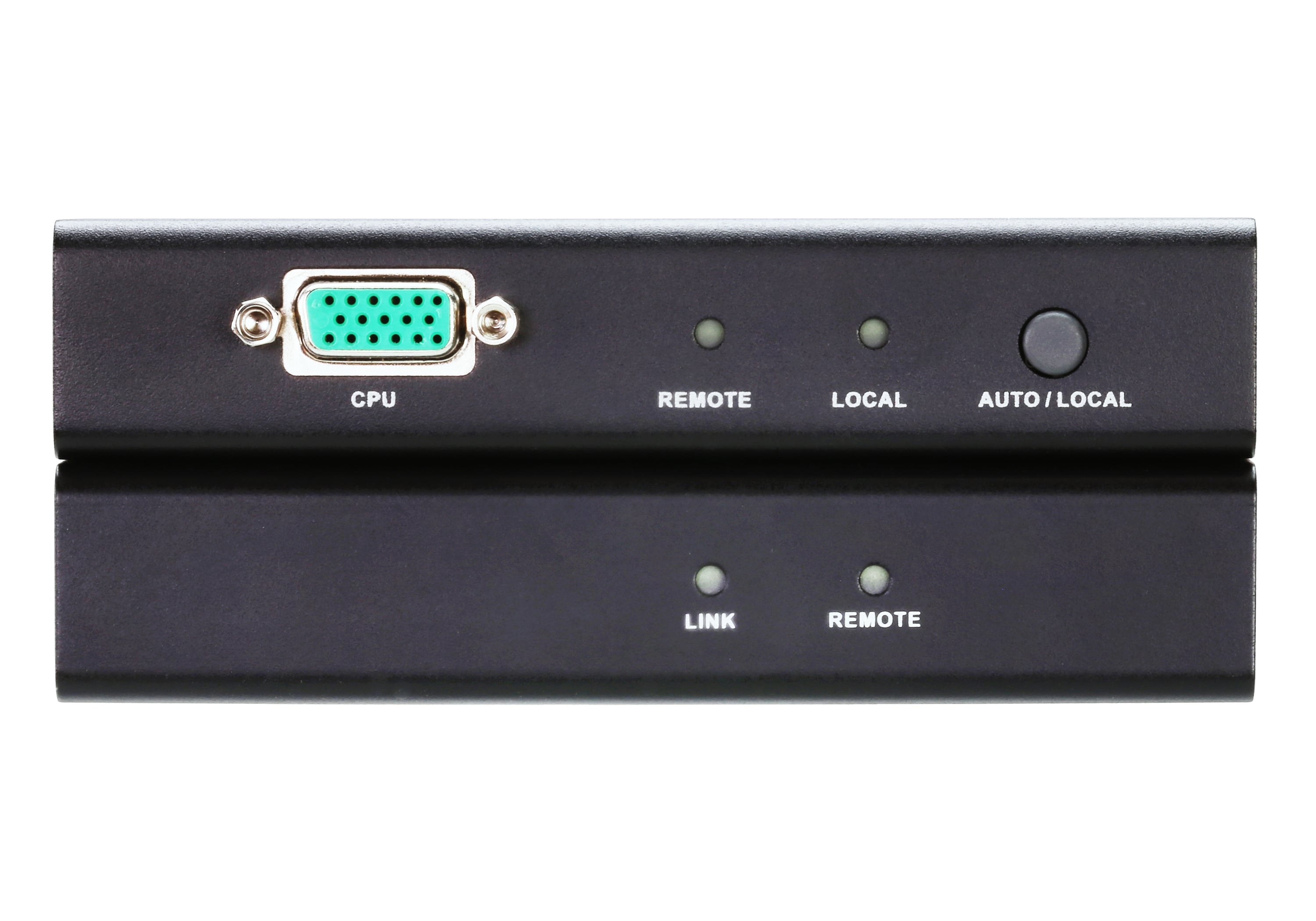

LED:

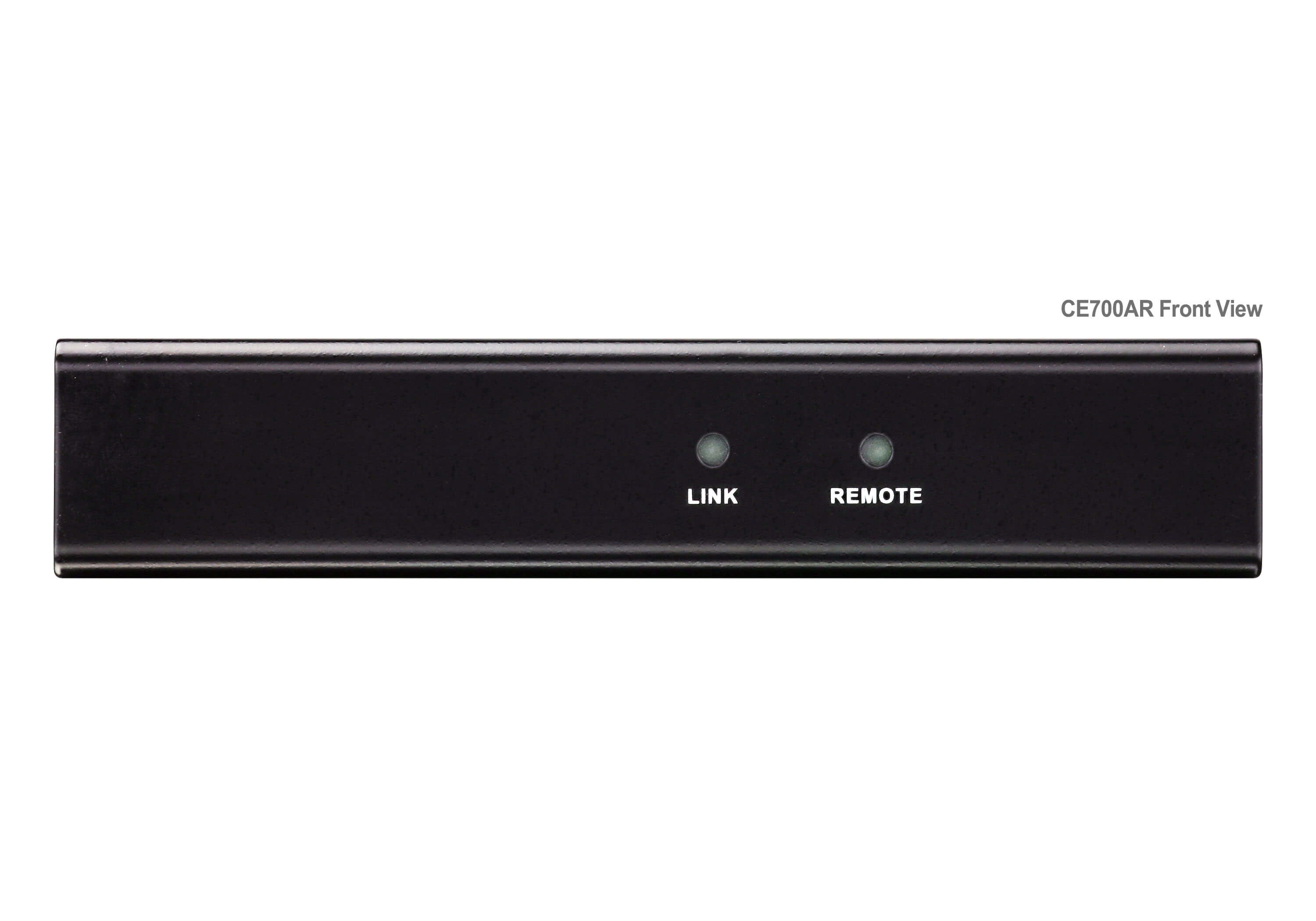

• Local


• Remotes



Package size:

• 1 extender KVM USB CE 700 AL (unità local)


• 1 extender KVM USB CE 700 AR (unità remote)


• 2 power supplies


• 1 USB KVM cable (1.8 m)


• 1 assembly kit


• 1 user guide
