KVMP dual-screen switch Mini DisplayPort 2 USB - Aten IDATA CS- 1942

The KVMP™ USB 2.0 Mini DisplayPort Dual View CS 1942 to 2 ports allows you to access 2 computers from a single keyboard and USB mouse with two screens. The incredible functionality à of the KVM switches combine a Dual View Mini DisplayPort to 2 ports with a USB hub to 2 ports and a USB port on the front panel for fast charging of mobile devices.

IDATA CS- 1942 further improves previous KVM designs with the mostù recent Mini DisplayPort and Mini TOSLINK connectors. It also features digital audio and video with ultra-high resolution, vivid images and surround audio with SPDIF connections.

The CS 1942 è is ideal for multimedia applications and offers maximum in terms of space saving and KVM technology from desk.



Features

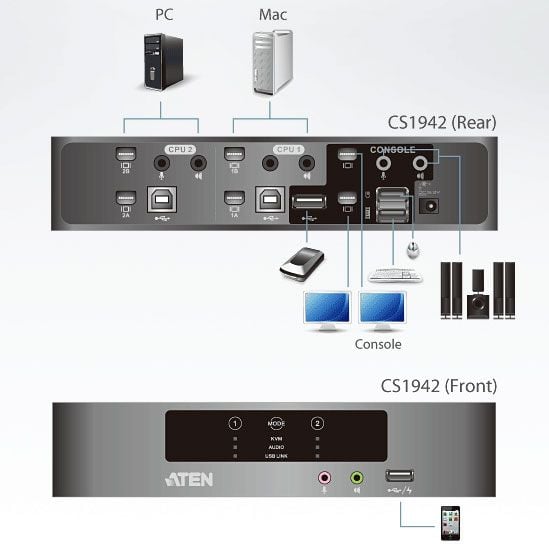

• A dual-screen USB console independently and simultaneously controls two Mini DisplayPort computers and two other USB devices


• Fast USB charging mode (USB port on front panel)


• Compatible Mini DisplayPort 1.1 to & HDCP


• The full bass range offers a rich experience for digital surround systems via Mini-TOSLINK


• Superior video quality à supports resolutions up to 2560 x 1600 and 3 D display up to 1920 x 1080 at 120 Hz


• nVidia 3 D Vision Ready


• 2.0 USB hub with built-in 2 ports, fully compatible with USB 2.0 specifications

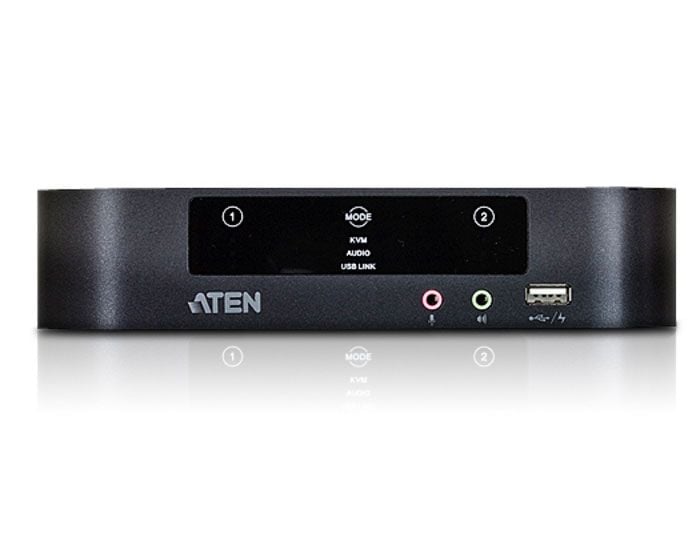

• Select your computer via the buttons on the front panel, the shortcut keys and the mouse*


• Independent switching of USB devices, audio and KVM control


• Support for emulation and keyboard and mouse bypass


• Initiation detection


• Mac keyboard support and emulation**


• Multilingual keyboard keymap: supports English, Japanese and French keyboards


• Multiplatform support: Windows, Linux and Mac



* Switching the port with the mouse only works in mouse emulation mode. Only for USB mouse to 3 keys with wheel.

** Emulation of Mac keyboards via PC keyboard key combinations.

**Mac keyboards only work with their respective computers.



Technical specifications

• Computer connections: 2


• Select Door: Touchpanel, Shortcut, Mouse

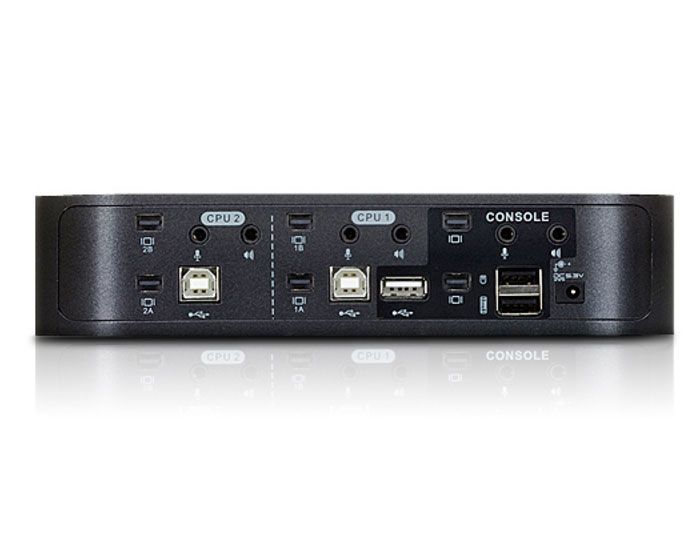

• Connectors



- Console doors:

2 x female type A USB (black, rear panel)

2 x Mini DisplayPort female (black)

2 x Female Mini TOSLINK connector (black)

1 x female audio connector from 3,5 mm (green)

1 x female 3,5 audio connector (pink)

- Doors KVM:

2 x female type B USB (white)

4 x Mini DisplayPort female (black)

2 x Female Mini TOSLINK connector (black)

- U.S. Hub:

2 x USB type A female (white; 1 x front panel, 1 x rear panel)

- Power supply: 1 x DC connector

• Switches



- Selected: 3 x Touchpanel Points

• LED



- KVM: 2 (orange)

- Audio: 2 (green)

2 (green)

• Emulation



- Keyboard / Mouse: USB

• Video: DP: resolution 2560 x 1600 at 60 Hz, or resolution 3 D Display 1920 x 1080 at 120 Hz


• Scan interval: 1 - 99 seconds (default: 5 seconds)


• Consumption: 5,3 V CC, 6,68 W


• Environment



- Operating temperature: 0 – 50 °C

- Storage temperature: – 20 – 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Plastic

- Weight: 0.56 kg (1.23 lb)

- Dimensions (L x P x A): 19.70 x 19.70 x 4.47 cm

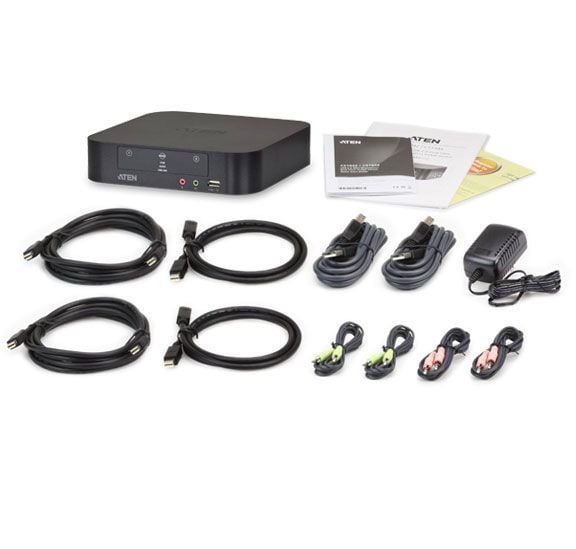

Package contents

• 1 switch KVMP™ USB 2.0 Mini DisplayPort Dual View CS 1942 to 2 ports


• 2 cables Mini DisplayPort 1.1 to 1 m


• 2 cables Mini DisplayPort 1.1 to 2 m


• 2 USB cables 2.0 from 1,8 m


• 2 audio cable set LIN 5 - 0205 - 21 DG from 1,8 m


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 user guide
