Switch KVM 2 ports DisplayPort USB - Aten IDATA CS- 22 DP

The KVM USB Cable DisplayPort switch to 2 ports CS 22 DP è a control unit à that allows you to access two computers from a single USB console and DisplayPort (keyboard, video and mouse) with audio. With CS 22 DP, è you can quickly and easily switch between two DisplayPort computers using a remote port selector push button.

CS 22 DP supports multi-platform operations that allow you to switch from one PC to another with different operating systems running. However, the compact design allows an efficient and tidy installation to offer an ideal space saving solution to keep your desk well organized.

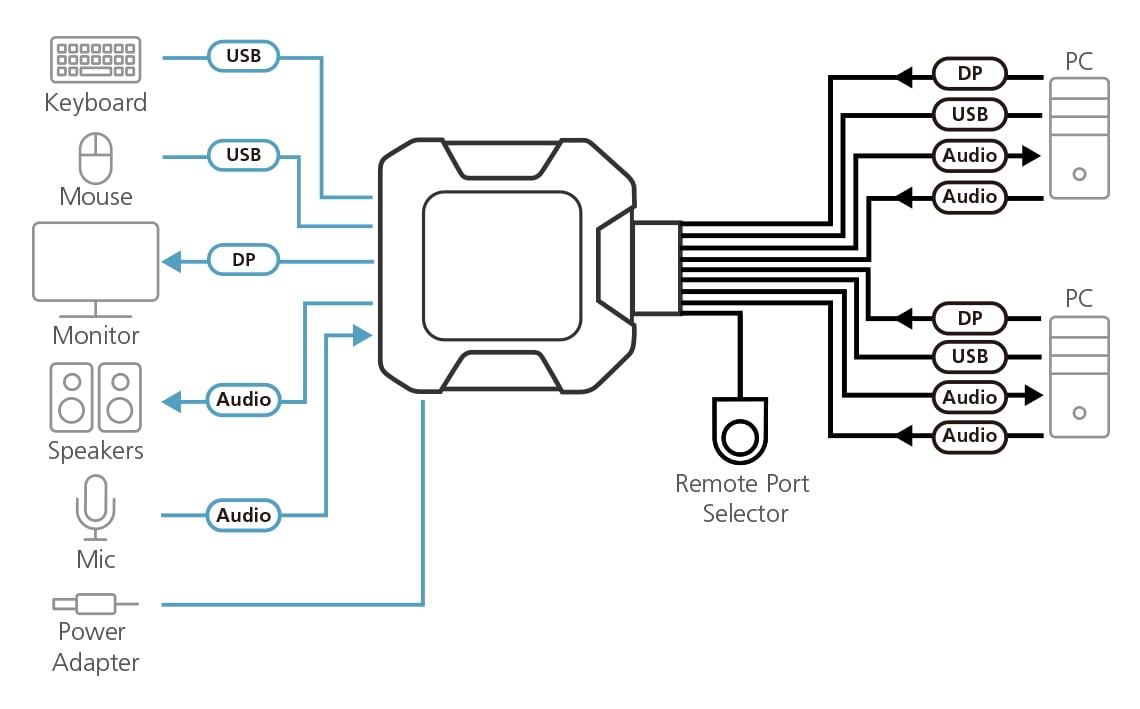

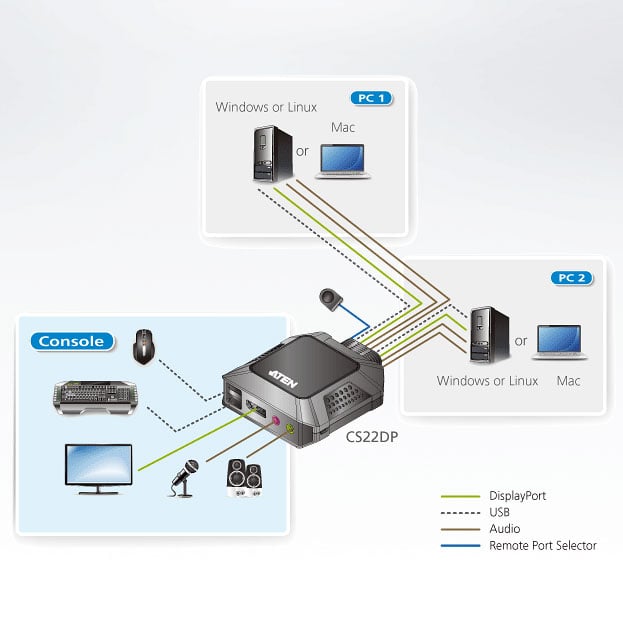

Aten CS 22 DP è easy and quick to configure. Simply connect the KVM cables in their respective ports on the CS 22 DP and on your computers. You don't need to install any software or configure devices (plug and play).



Features

• A KVM console controls two USB DisplayPort computers


• Superior video quality – up to 2560 x 1600 at 60 Hz


• Selecting the computer by remote port selector


• Supported operating systems: Windows, Mac and Linux


• Supports Modelità dual DisplayPort (DP++)* for direct transmission of HDMI and/or DVI single link via an adapter from DisplayPort and HDMI/DVI DP+ externally powered


• Supports microphone and speakers

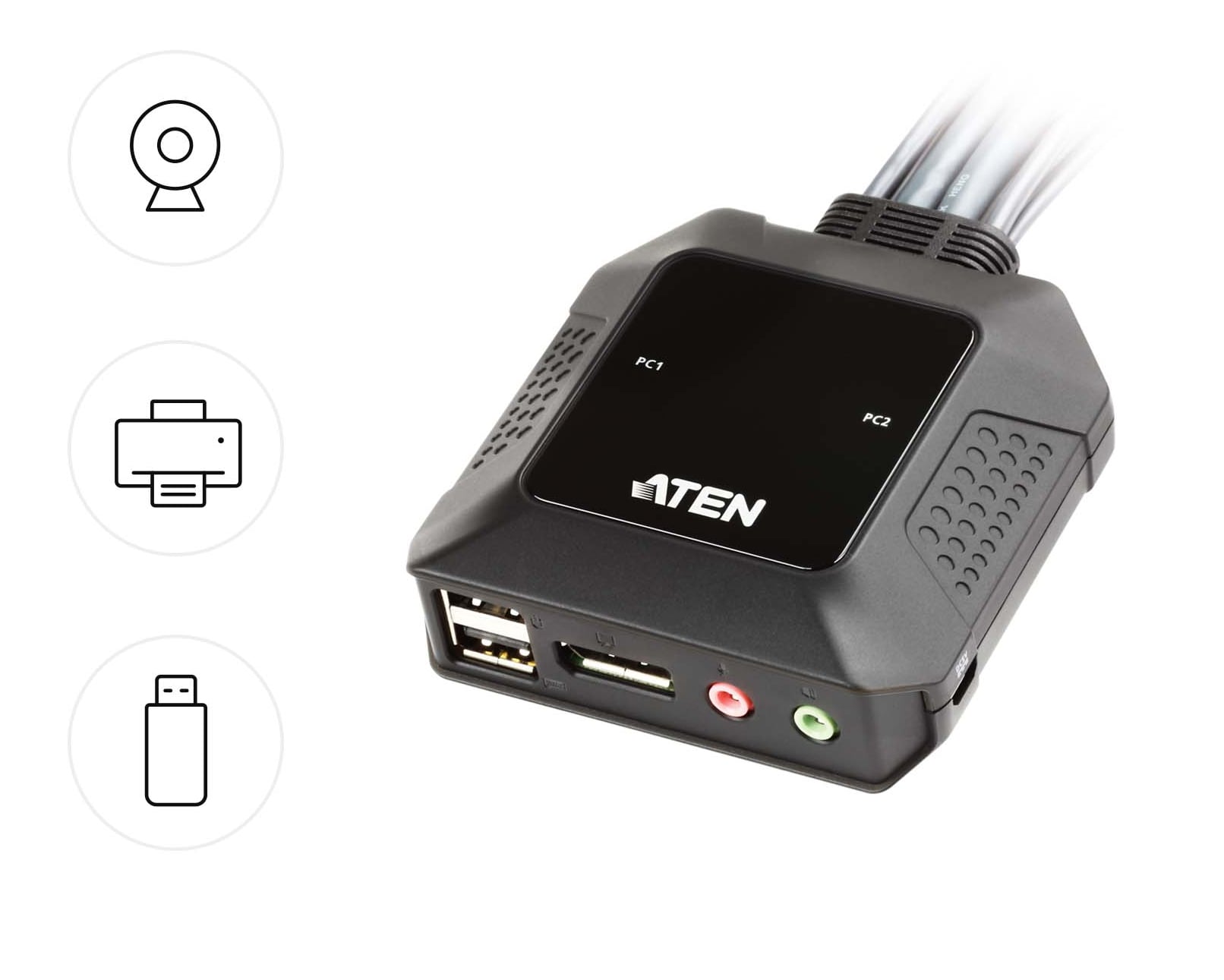

• USB ports can be used for sharing USB devices**


• Supports hot USB connection


• HDCP Conforms


• Powered by bus



*Modalità dual DisplayPort (DP++) which requires the use of a powered DP+ adapter. The graphics source must be DP++ compliant.

** CS 22 DP can ò require an external power supply via a micro USB port



Technical specifications:

• Computer connections: 2


• Select Door: Remote Door Selector


• Connectors

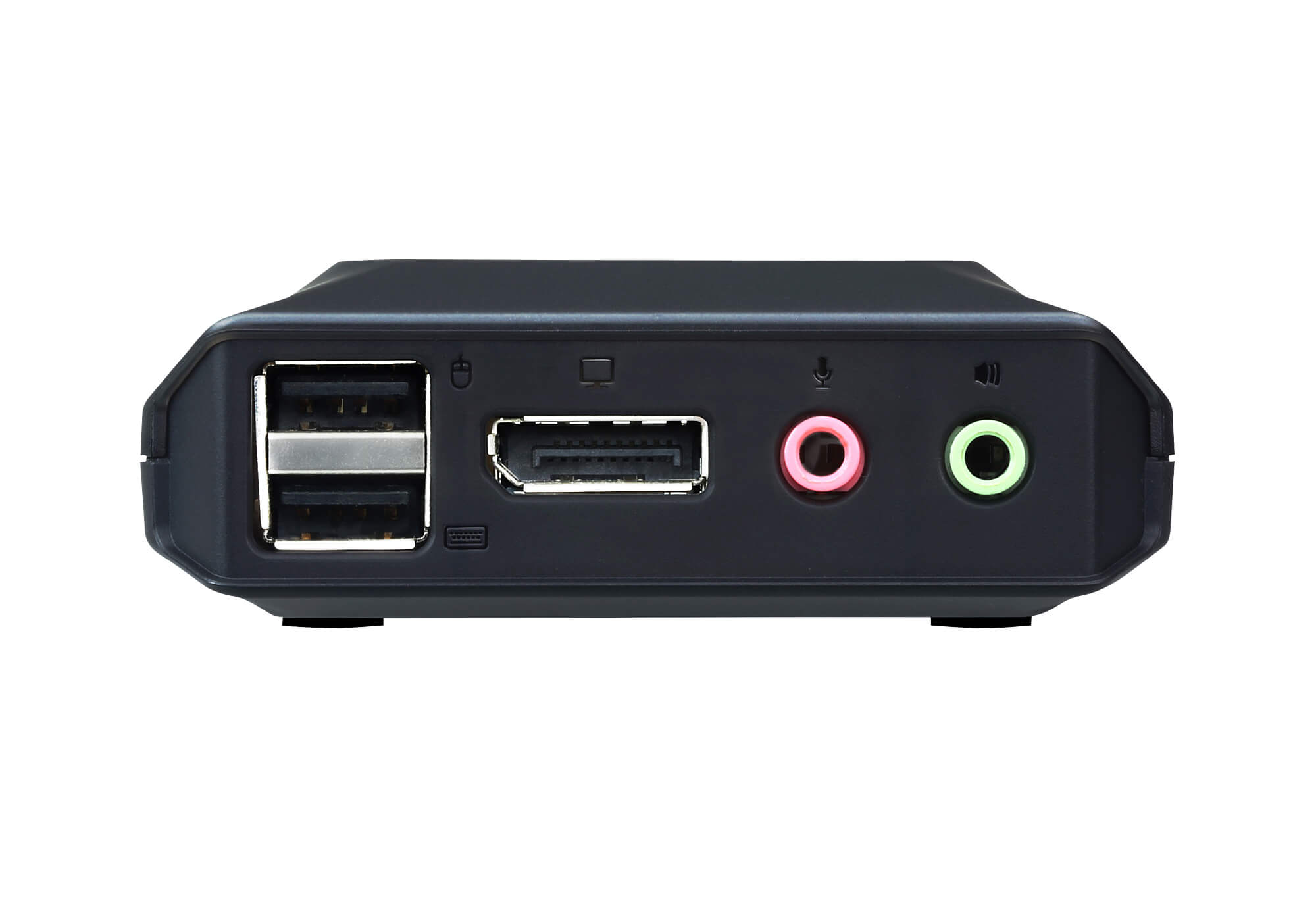

- Console doors: 2 x USB type A female

1 x DisplayPort female

1 x Female audio connector from 3,5 mm (green)

1 x Female audio connector from 3,5 mm (pink)

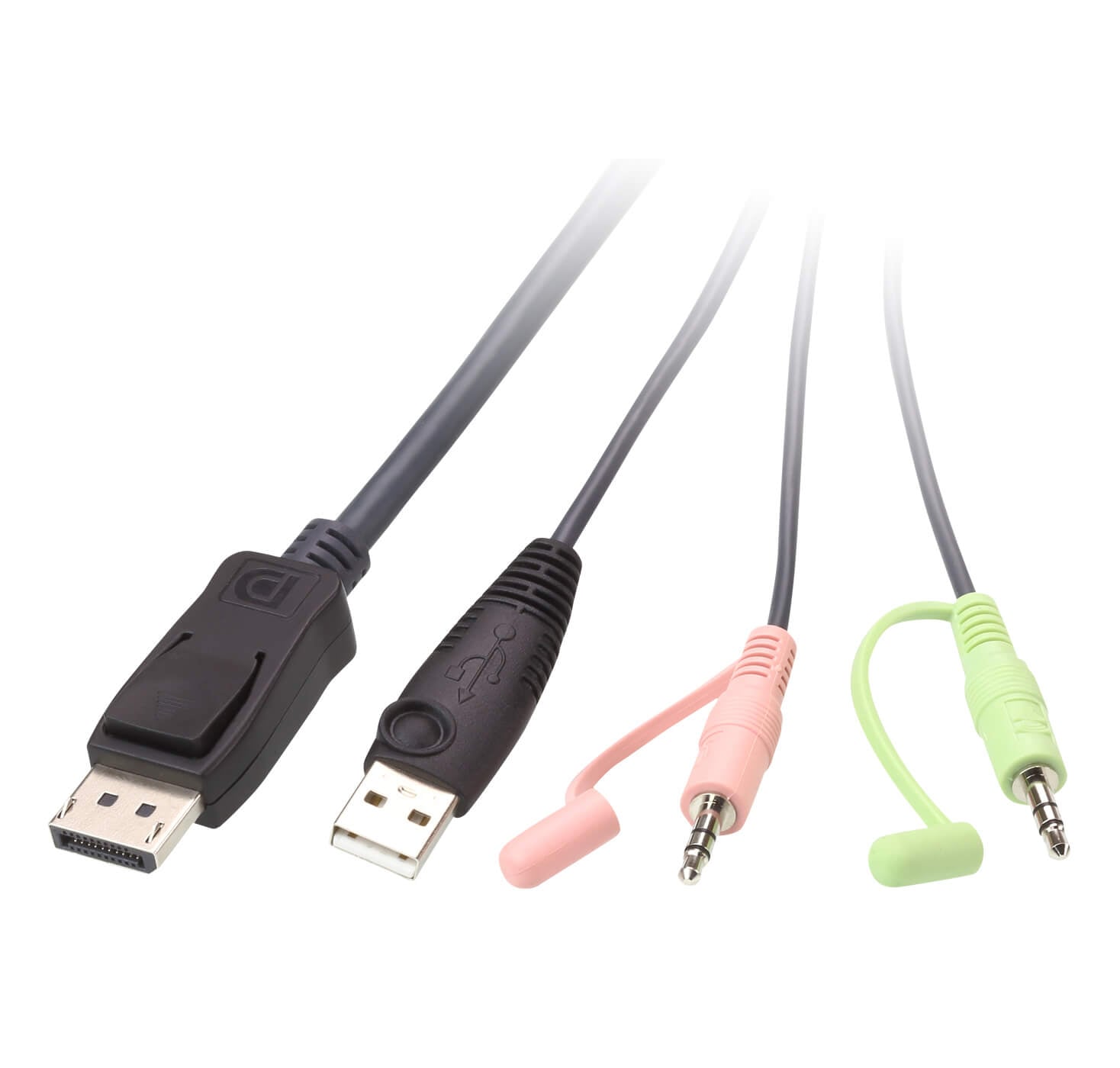

- Computer doors: 2 x USB type A male

2 x DisplayPort male

2 x Male 3,5 mm audio socket (green)

2 x Male 3,5 mm audio socket (pink)

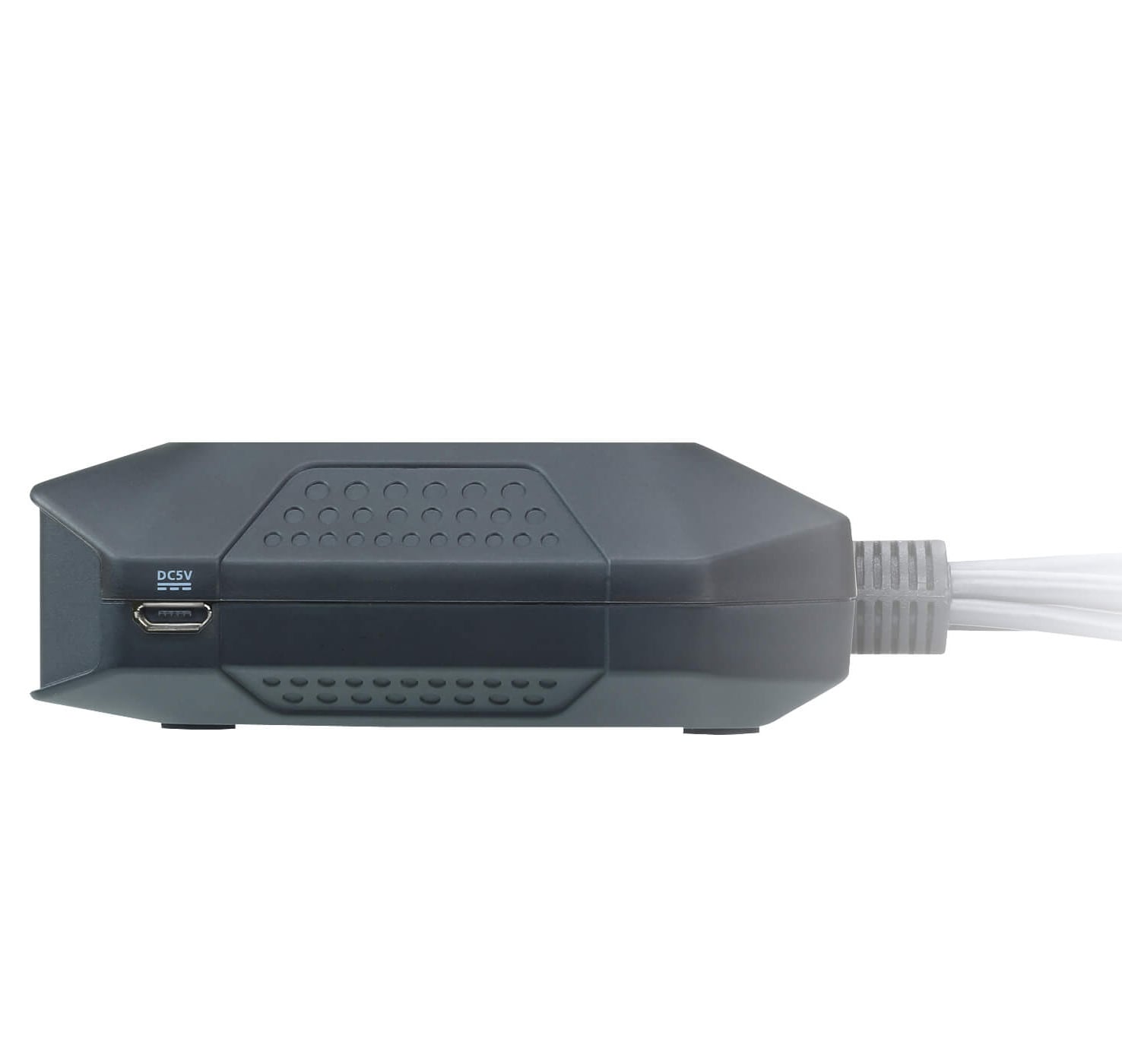

- Power supply (optional): 1 x Micro USB type B female

• LED



2 (white)

- KVM port (online/selected): 2 (white)

• Cable length



- KVM: 2 x 1,2 m

- Remote door selector: 1,8 m

• Emulation



- Keyboard / Mouse: N/D

• Video: 2560 x 1600 at 60 Hz


• Consumption: 5 V CC, 6,5 W


• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

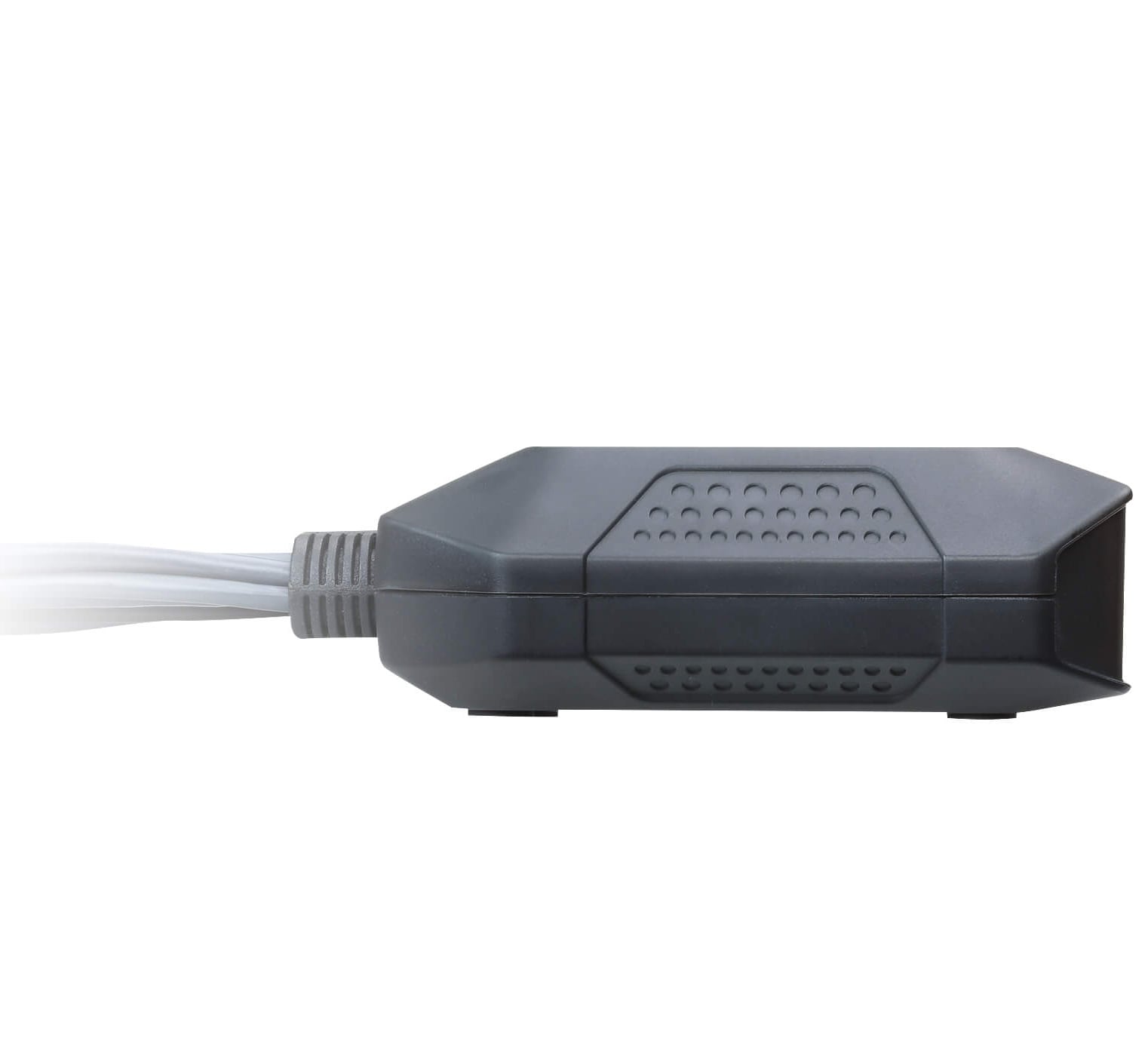

• Proprietà physical



- Structure: Plastic

- Weight: 0.35 kg (0.77 lb)

- Dimensions (L x P x A): 8.34 x 8.42 x 3.04 cm



Package contents

• 1 x CS 22 DP switch KVM USB cable DisplayPort to 2 ports


• 1 x user instructions
