Switch USB USB HDMI to 2 Doors with Audio - Aten IDATA CS- 692

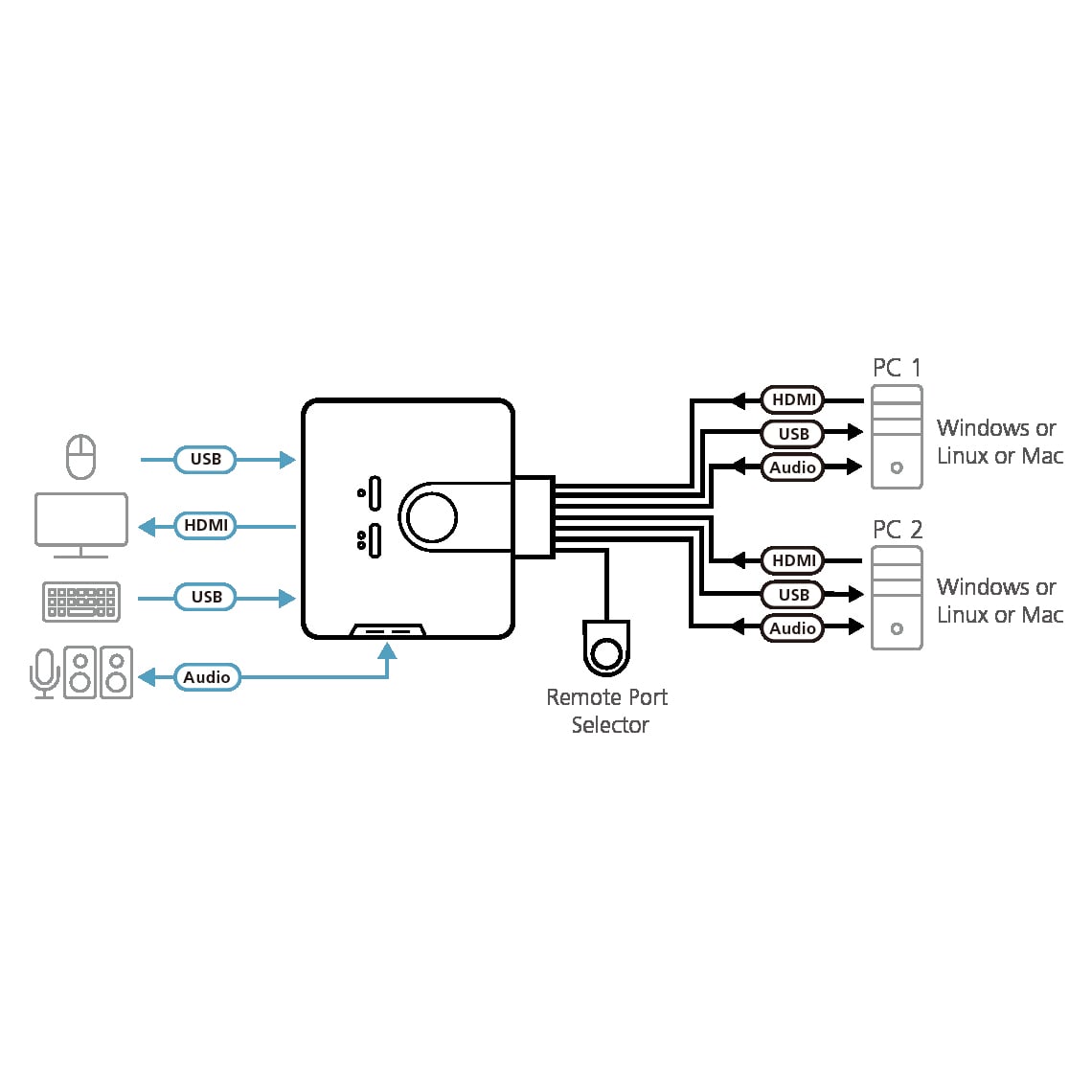

The KVM USB HD IDATA CS- 692 switch connects two PCs or HD devices to a single console with USB keyboard, USB mouse and HD screen. It is a huge step forward compared to the previous cabled KVM models of the Petite series. It offers full functionalityà HDMI, USB 2.0 device sharing (via a hub connected to the USB port for the mouse) and firmware update functions to always have the latest version available.

Equipped with an unbeatable combination of functionalityà HDMI, 2.0 USB device sharing, support for gaming keyboards and extreme simplicityà operation, IDATA CS- 692 allows you to keep up with the latest newsà in terms of desktop multimedia applications.



Features

• One HD video console controls two PCs or HD devices


• HDMI and HDCP compatible


• Computer choice via remote port selector, shortcut keys and USB mouse


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Independent switching of KVM control and audio signals: è can assign KVM control to one computer and audio signals to another*


• Multiplatform support: Windows, Mac, Linux


• Compact design, built-in all-in cables (2 from 1,2 m)


• Qualityà higher video up to 1920 x 1200 ; 1080 p


• Compatible with widescreen LCD monitors


• DynaSync video & trade;: ATEN's exclusive technology that eliminates boot-up display problems and optimizes resolution when switching from port to port


• Detecting ignition: If a computer è is switched off, CS 692 automatically switches to the other computer


• Supports multimedia and gaming keyboards


• Supports multifunction and wireless keyboards and mouse


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Mac keyboard support and emulation**


• The 2.0 USB port of the mouse can be used for USB hub and USB device sharing***


• No need for external power supply


• Updated Firmware


• Plastic housing



Note: * You can't switch HD audio signals independently through the speakers embedded in the HD monitor.

** Emulation of Mac keyboards via PC keyboard key combinations. Mac keyboards only work with their respective computers.

*** You may need an additional power supply. To use the USB 2.0 mouse port as a USB hub, disable the mouse emulation mode first.



Technical specifications

• Computer connections: 2


• Console connections: 1


• Port Selection: Remote port selector, mouse, shortcut keys

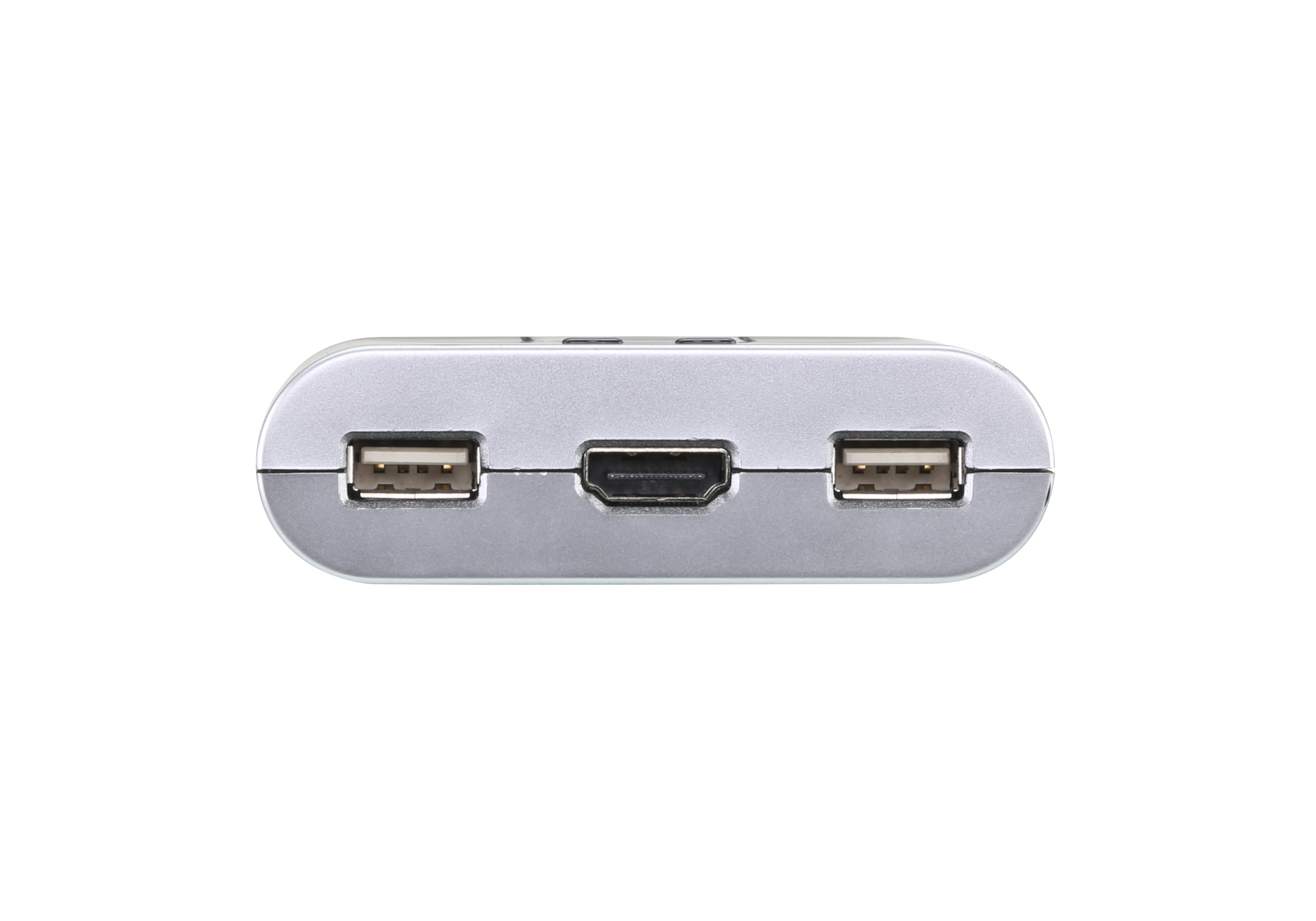

• Connecting doors to the console:



- Keyboard: 1 USB type A female (silver)

- Video: 1 HD type A female (black)

- Mouse: 1 USB type A female (silver)

- Speakers: 1 mini stereo female (green)

- Mic: 1 mini stereo female (pink)

• KVM Doors:



- Keyboard: 2 USB type A male (purple)

- Video: male type A 2 HD (black)

- Mouse: 2 USB type A male (black)

- Speakers: 2 mini stereo male (green)

- Mic: 2 mini stereo male (pink)

• LED: KVM 2 (green)


• Cable length: KVM 2 from 1,2 m; Remote door selector 1,8 m


• Keyboard/Mouse emulation: USB


• Video: 1080 p; 1920 x 1200


• Switching range: 3 , 5 , 10 , 20 sec. (default 5 sec.)


• Power consumption: DC 5 V, 2,65 W



Environmental conditions

• Operating temperature: 0 - 50°C


• Storage temperature: - 20 - 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 8.24 cm


• Depthà: 6.65 cm


• Height: 2.52 cm


• Weight: 0.41 kg



Package contents

• 1 x audio/video KVM switch


• 2 x shortcut button self-adhesive
