Switch USB KVM VGA to 2 Doors - Aten IDATA CS- 22 U

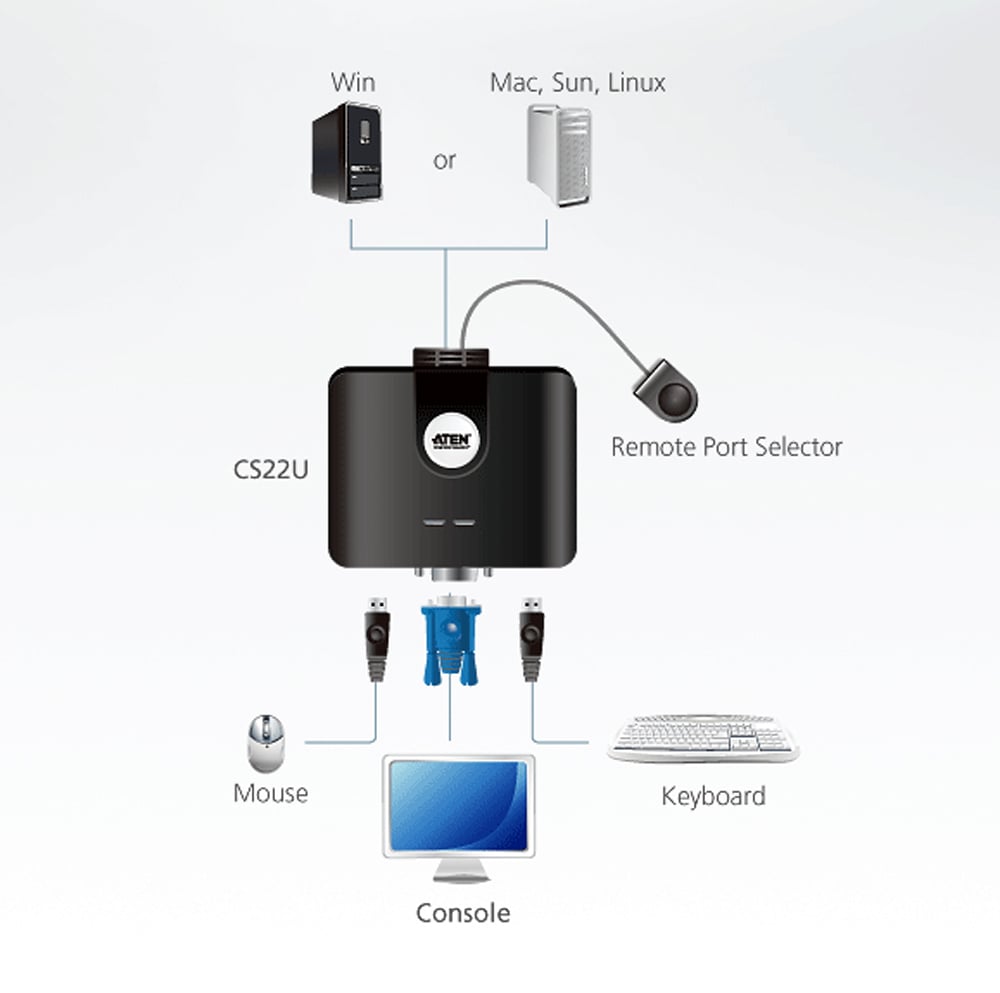

IDATA CS- 22 U è a USB KVM switch wired to 2 ports that provides an easy and quick way to select computers: a remote selector of the built-in port. This ò allows you to hide the switch from view, while the remote port selector can ò stay comfortably on the desk.

The compact all-in-one design of Aten CS 22 U makes it ideal for multi-platform desktop applications that require high-resolution video.



Features

• A USB console controls two USB computers


• Supports multifunction mouse


• Multiplatform support: Windows, Linux, Mac and Sun


• The USB port of the mouse can be used for a 1.1 USB hub and USB device sharing 1.1


• High quality video: up to 2048 x 1536; DDC 2 B


• No need for external power supply



Technical specifications

• Computer connections: 2


• Port Selection: Remote port selector

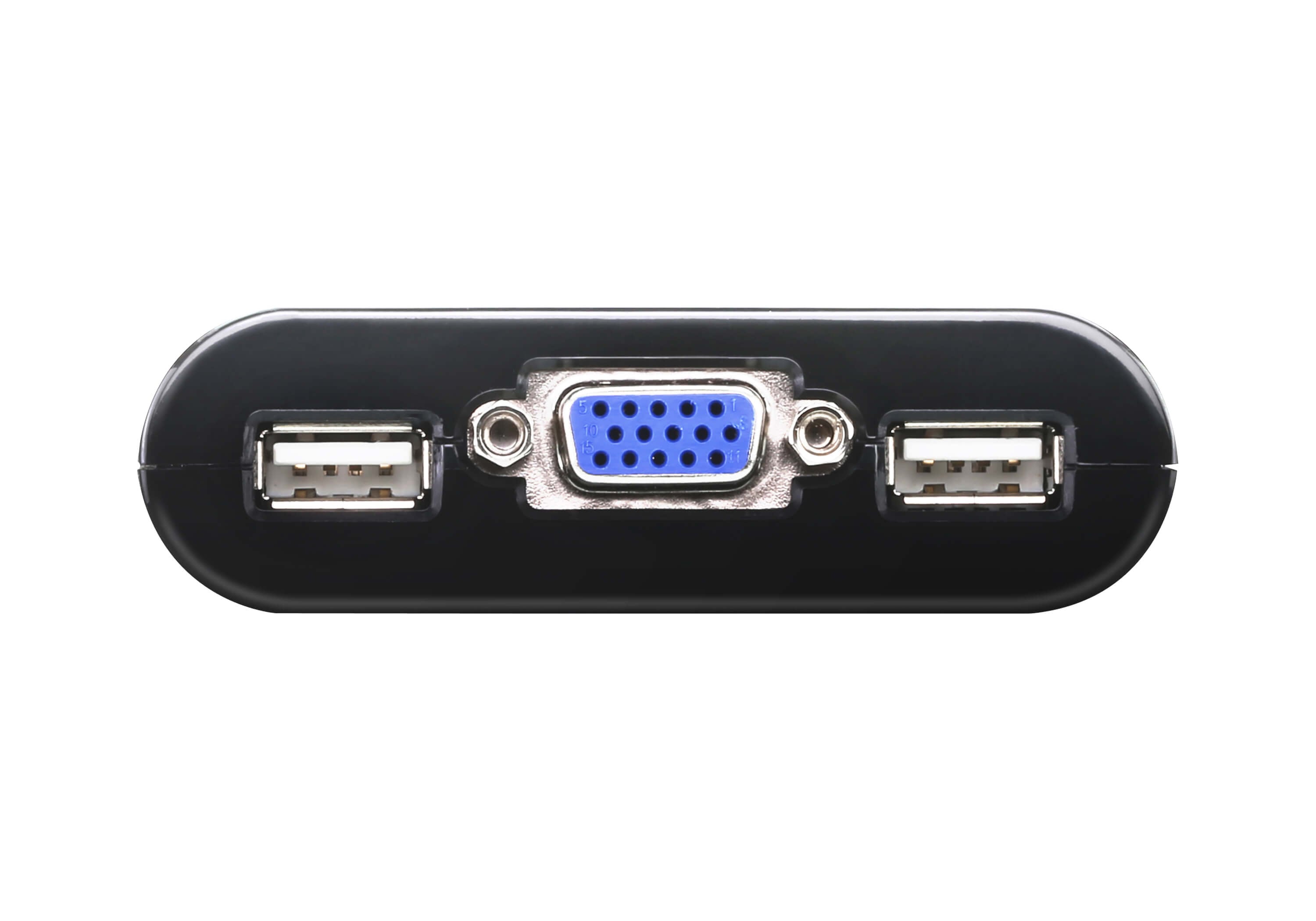

• Connecting doors to the console:



- Keyboard: 1 USB type A female (black)

- Video: 1 HDB- 15 female (blue)

- Mouse: 1 USB type A female (black)

• KVM Doors



- Keyboard/Mouse:  4 USB type A male (black)

- Video: 2 HDB- 15 male (blue)

• LED: 2


• Length of cable:



- Computer 0,9 m

- Remote door selector 1,8 m

• Video: 2048 x 1536 ; DDC 2 B


• Plastic housing



Environmental conditions

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 7 cm


• Depthà: 8.24 cm


• Height: 2.46 cm


• Weight: 0.31 kg



Package contents

• 1 x switch Aten CS 22 U


• 1 x user guide
