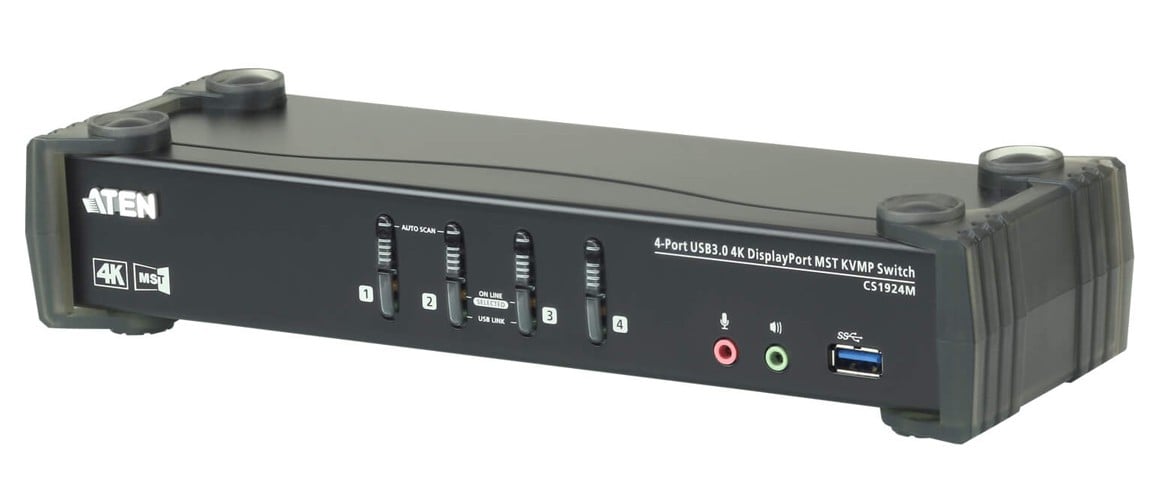

Switch KVMP 4 K DisplayPort to 4 ports MST USB 3.0 , CS 1924 m - Aten IDATA CS- 1924 M

By integrating the most recent Multi-Stream Transport (MST) technology, the 4 K DisplayPort MST KVMP™ USB 3.0 to 4 ports CS 1924 M è the world's first DisplayPort KVM switch with integrated MST hub. CS 1924 M allows users to adopt two console screens from a single video source DisplayPort 1.2 , offering an extended à desktop mode and a splitter mode with resolutions up to 4 K for multitasking between two screens reducing annoying cable connections.



To meet the growing demand for high-speed peripheral data transmissions; CS 1924 M integrates a USB hub 3.1 Gen 1 to offer excellent data transfer speeds à up to 5 Gbps that allow you to maximize multitasking operations.



The independent exchange function allows you to concentrate the KVM switch on a computer computer while the USB device focuses on another computer. This eliminates the need for à to buy a separate USB hub or a unità to share standalone peripherals, such as a print server or splitter. In addition, the switch allows you to share audio from each connected computer and to transmit HD audio via the DisplayPort source.



With a rich set of functions, the CS 1924 M è designed to exceed requirements such as excellent quality à video and ultra fast data transmission speed for games, graphic design, animation and video editing applications.



The world's first KVM DisplayPort switch with integrated MST hub

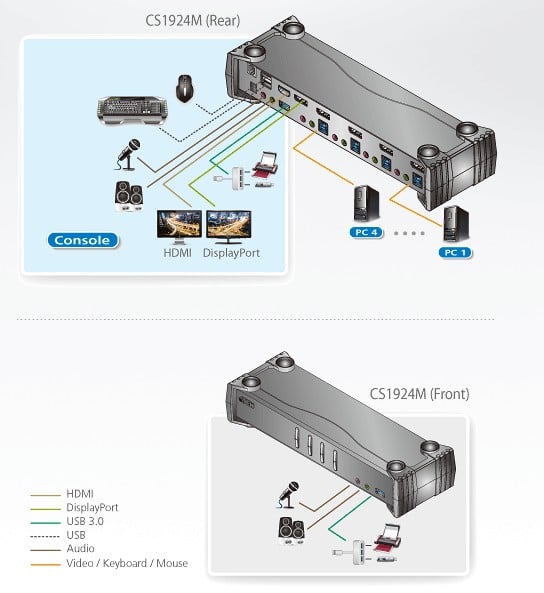

A USB keyboard/mouse and DisplayPort or HDMI monitor, control of 4 computers and 2 USB peripherals

Integrated Multi-Stream Transport (MST) hub that allows dual display (DisplayPort/HDMI) from a single DisplayPort* source

Supports Modelità MST, Modelità splitter and Modelità single port.

Hub USB 3.1 Gen 1 to 4 ports with speed à SuperSpeed 5 Gbps data transfer

Modalità dual DisplayPort (DP++) technology supports HDMI and DVI signals via an adapter from DisplayPort and HDMI/DVI DP++ **

Updated Firmware

Hot Connectable – add or remove computers without turning off the switch



Exceptional audio/video experience

Superior video quality – 4 K UHD (3840 x 2160 at 60 Hz) and 4 K DCI (4096 x 2160 at 60 Hz)

DisplayPort 1.2 and HDCP Conforms

Supports HD audio via DisplayPort ***

Complete bass response for surround audio systems to 2.1 high quality channels;



Smart operation

Computer selection by push buttons on the front panel, shortcut keys, mouse **** and RS- 232 commands

Independent switch of KVM, USB hub and audio

– ignition detection if a computer is switched off, CS 1924 M automatically switches to the next on computer

Modelità Automatic search for monitoring all computers



Compatibilityà versatile

Keyboard emulation/bypass function that supports different keyboards for the game

Mouse emulation/bypass function that supports different mouse drivers and multifuction mouse

Multiplatform – Windows, Mac and Linux support

Multilingual keyboard mapping, supports keyboards in English, Japanese, French and German



Note:

* The PC source must conform to DisplayPort 1.2.

** Modalità dual DisplayPort (DP++) technology does not require an active adapter for many of the individual screen settings.

Active DisplayPort adapters are recommended if è is not certain of the video source compatibilityà DP+++.

*** HD audio via DisplayPort cannot be exchanged independently.

**** The è mouse port exchange supported only in mode à mouse emulation with USB mouse to 3 buttons.



Technical specifications

• Computer connections: 4


• Select port: shortcut, push button, mouse, RS- 232 commands


• Power supply: 1 x DC connector


• USB Hub: 2 x USB 3.1 Gen 1 type A female (blue; 1 x front panel; 1 x rear panel)

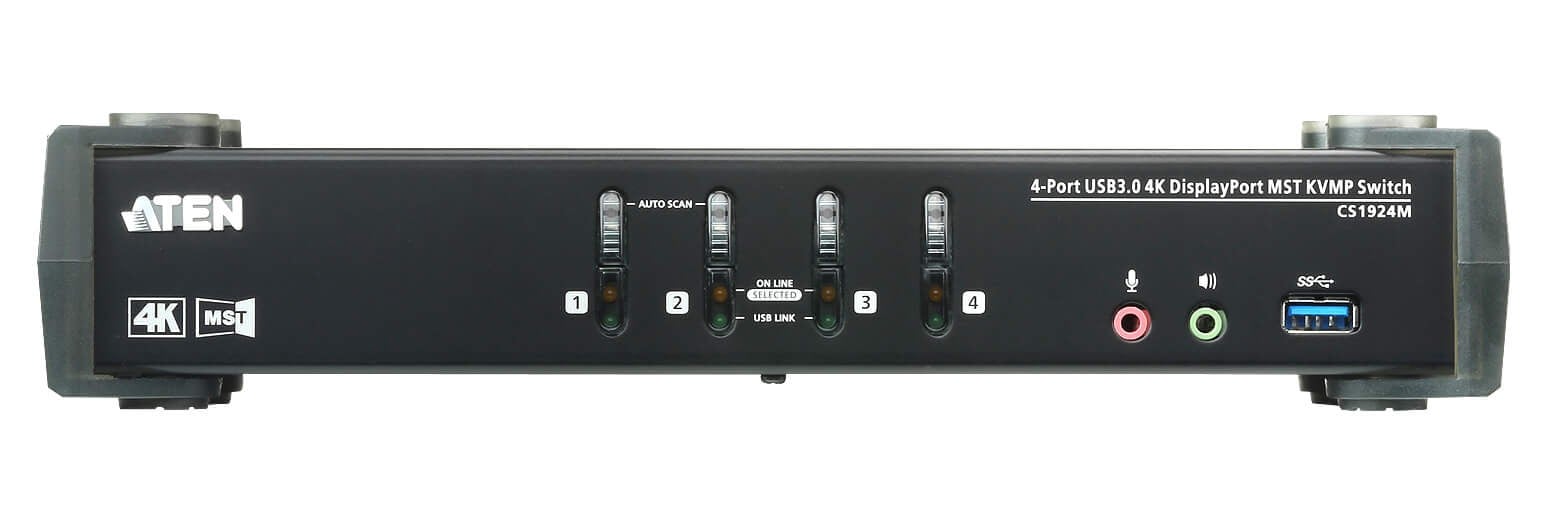

• Switches



Selected 4 x Push Button

• LED



Online / Selected: 4 (orange)

USB connection: 4 (green)

• Emulation



Keyboard / USB Mouse

Video 4096 x 2160 at 60 Hz

• Scan interval   1 - 99 seconds (default: 5 seconds)


• Consumption: DC 5 V: 3.44 W: 59 BTU


• Environmental characteristics:



Operating temperature 0 - 50 °C

Storage temperature - 20 - 60 °C

Humidità 0 - 80 % relative humidity, without condensation

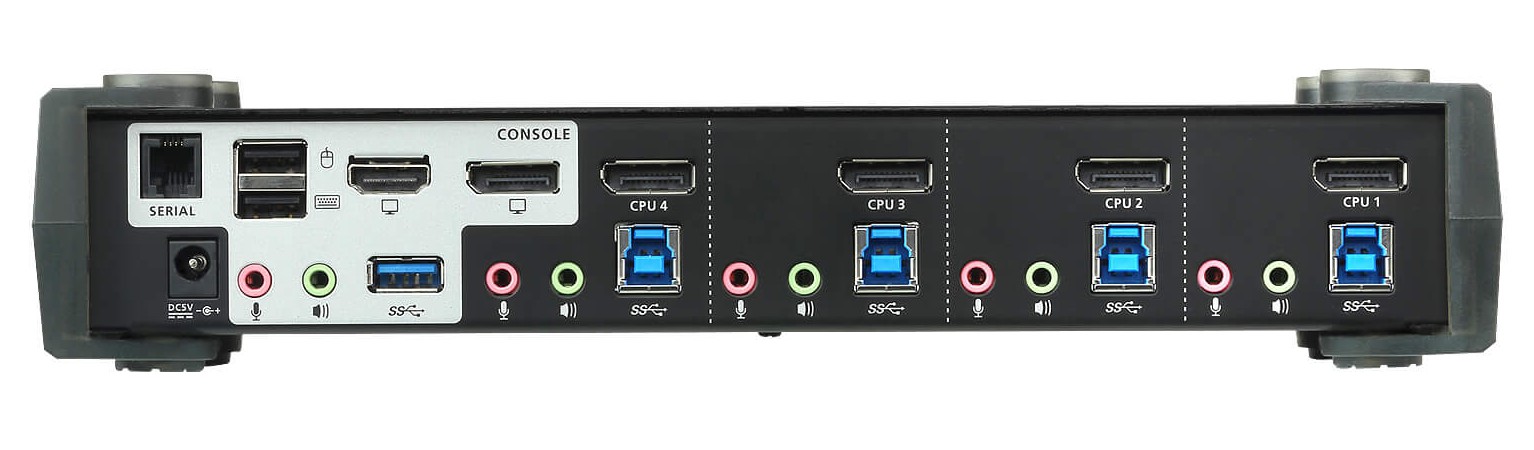

Connectors

• Console doors



2 x USB type A female

1 x DisplayPort female (black)

1 x female HDMI (black)

2 x 3,5 female audio connector (green; 1 x front, 1 x rear)

2 x Female audio connector from 3,5 mm (pink; 1 x front, 1 x rear)

1 x RJ- 11 female

• KVM ports (computer) 



4 x USB 3.1 Gen 1 female type B (blue)

4 x DisplayPort female (black)

4 x Female audio connector from 3,5 mm (green)

4 x Female audio connector from 3,5 mm (pink)



Dimensions

• Width: 27.00 cm


• Depthà: 8.80 cm


• Height: 5.55 cm



Package contents

• 1 x Switch 4 K DisplayPort MST KVMP™ USB 3.0 to 2 ports


• 2 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort 1.2 (1,5 m/ 5 feet)


• 2 x LIN 6 - 11 C 1 -E 12 G USB cables (USB 3.0 -A USB 3.0 -B; 1,8 m/ 6 feet)


• 4 x LIN 5 - 0205 - 21 DG/CD audio cables (1,8 m/ 6 feet)


• 1 x LIN 2 - 418 K-E 12 G / 0 AD 8 - 8005 - 40 MG power supply


• 1x User manual
