Switch KVMP USB 2.0 HDMI 4 ports with USB hub - Aten CS 1794

With its unique design and innovative features, the KVMP™ CubiQ™ USB 2.0 HDMI CS 1794 switch from ATEN brings style and functionality to the multimedia SOHO environment. The CS 1794 combines a 4 port switch with a USB 2.0 hub to 2 ports for a simple and transparent switching of the HDMI signal between 4 PC or other HDMI devices such as video games console. It also allows you to share USB peripherals from a single console.

The CS 1794 offers advanced independent switching via the front panel buttons and keyboard shortcut keys, as well as DynaSync&trade Video Technology; to always ensure optimized HDMI resolution. Thanks to the built-in digital audio, the CS 1794 also provides high-definition Dolby True HD and DTS HD Master Audio audio.

Ideal for home or office multimedia applications, the CubiQ™ CS 1794 è maximum in terms of space saving and optimized KVM technology.



Features

• Switch KVMP™ USB 2.0 to 4 ports

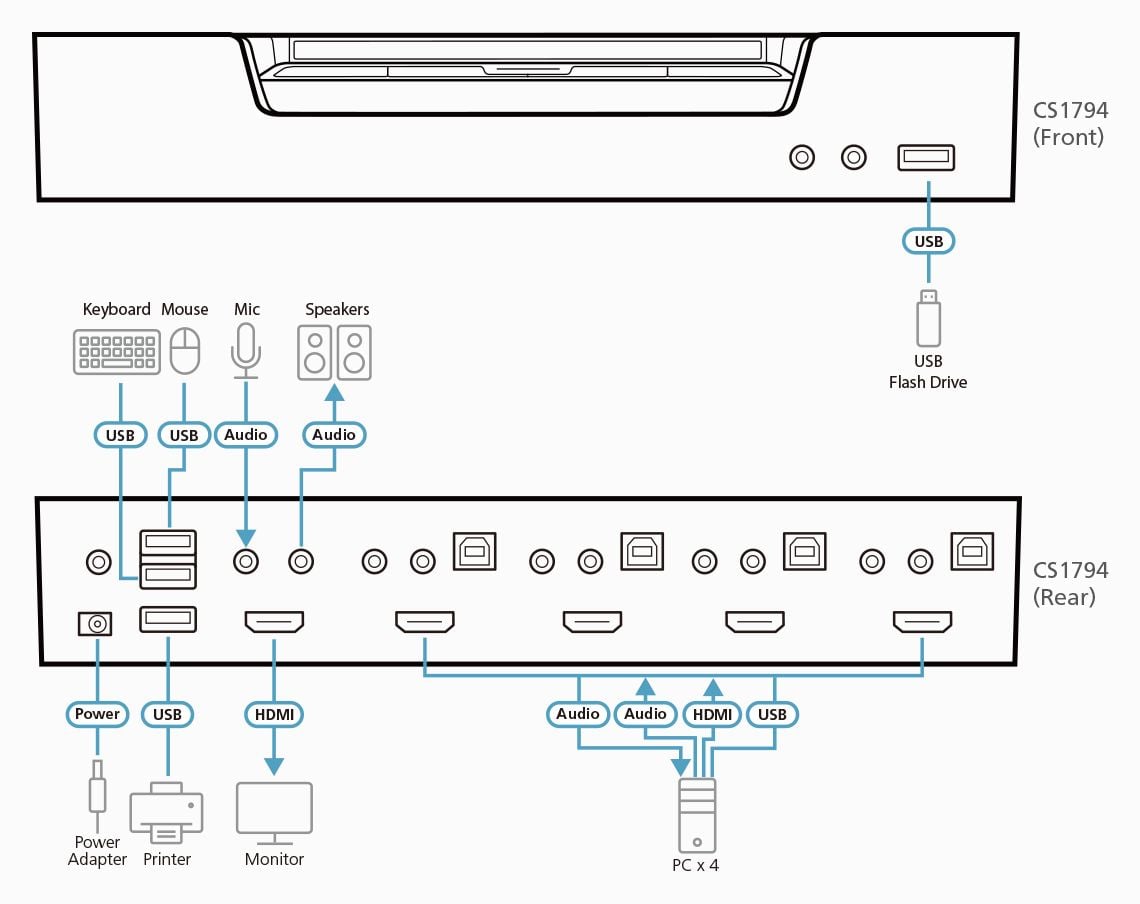

• A USB console controls four computers with HDMI interface and two other USB devices


• 2.0 USB hub with built-in 2 ports, fully compatible with USB 2.0 specifications

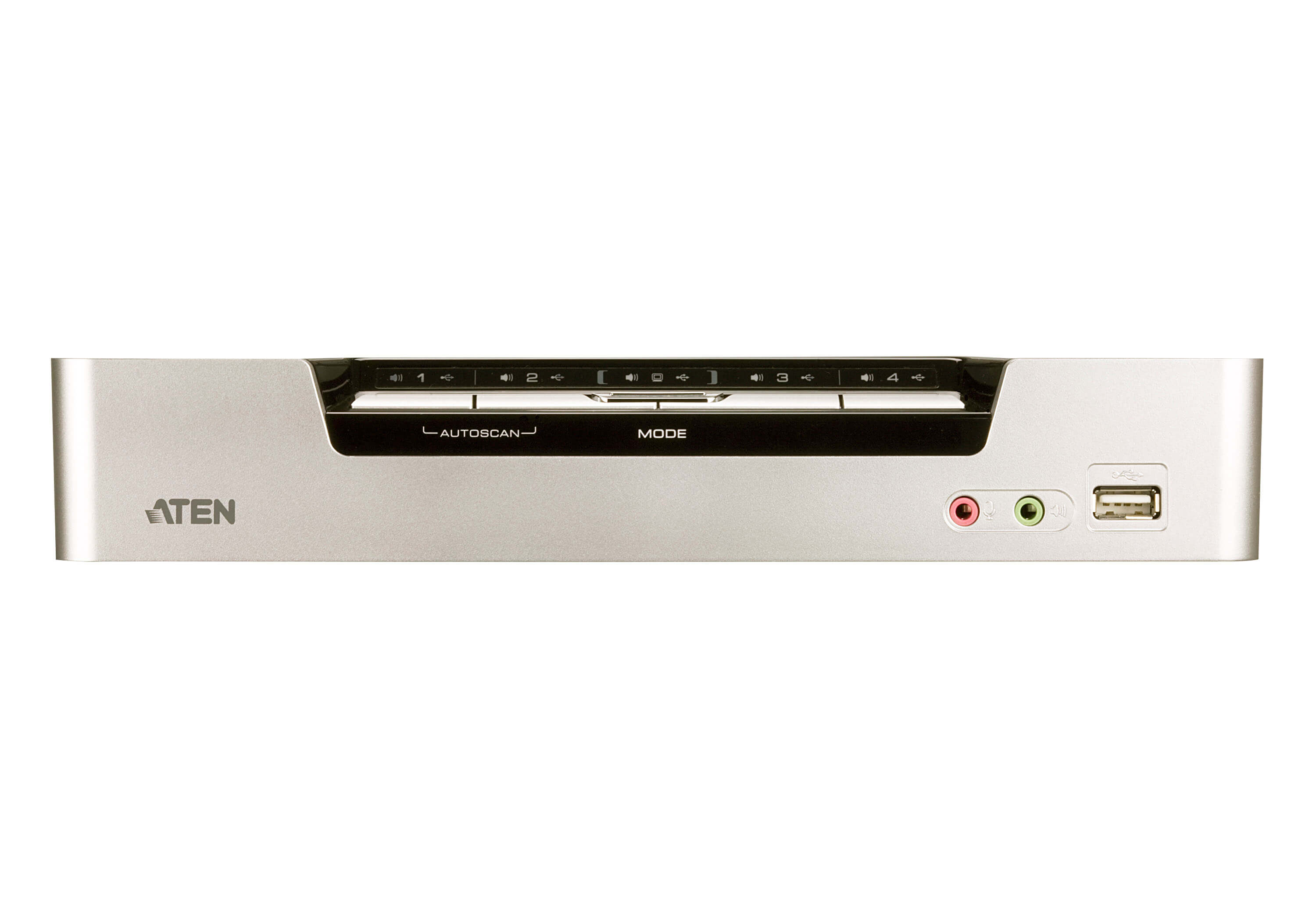

• Independent switching of KVM control, USB and audio devices via front panel buttons and shortcut keys


• Support for HDMI digital monitors: fully HDMI and HDCP compliant


• Supports Dolby True HD and DTS HD Master Audio


• Superior video quality: supports 480 i, 480 p, 720 p, 1080 i and 1080 p (HDTV)/ 1920 x 1200 (DVI)


• Onset detection: If a è computer is switched off, the CS 1794 automatically switches to the next computer on


• Support widescreen resolutions


• Multiplatform support: Windows, Linux and Mac


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• DynaSync & trade; Video: Stores the Extended Display Identification Data (EDID) of console monitors to optimize screen resolution


• Full keyboard emulation for error-free startup


• Mac keyboard support and emulation*


• Modelità automatic switching for monitoring all computers and HDMI devices


• Updated Firmware



* 1. Emulation of Mac keyboards via PC keyboard key combinations.

2 . Mac keyboards only work with their respective computers.



Technical specifications

• Computer connections: 4


• Select Door: Shortcut, Button

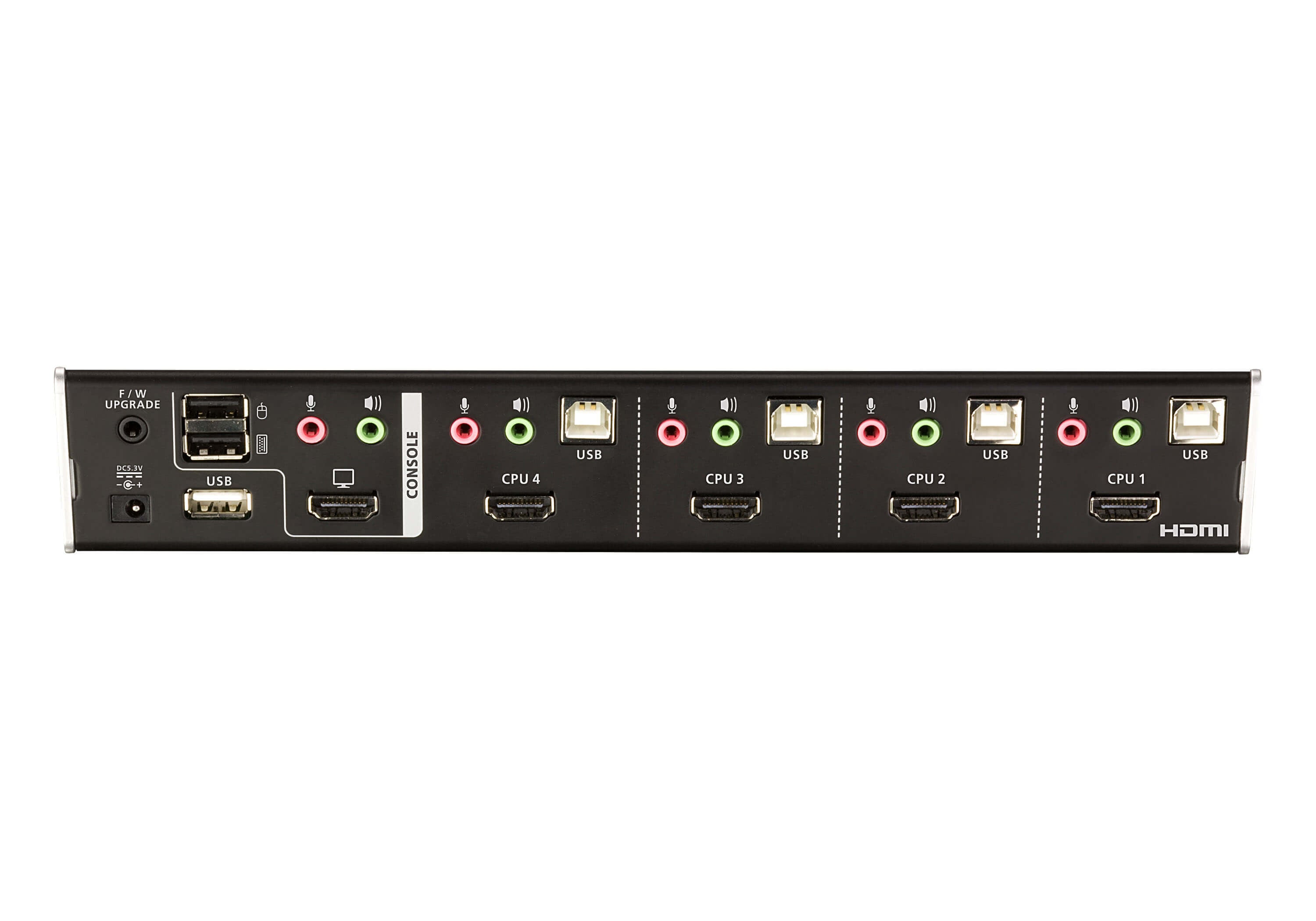

• Connectors



- Console doors:

2 x female type A USB (black; rear panel)

1 x HDMI type A female (black)

2 x Mini female stereo connector (green; 1 x front, 1 x rear)

2 x Mini female stereo connector (pink; 1 x front, 1 x rear)

- KVM doors: 4 x USB type B female (white)

4 x HDMI type A female (black)

4 x Mini female stereo connector (green)

4 x Mini female stereo connector (pink)

- Firmware update: 1 x 4 conductor connector 3,5 mm (black)

- Power supply: 1 x DC connector

- USB Hub: 2 x USB type A female (white; 1 x front panel, 1 x rear panel)

• Switches



- Selected: 5 x Button

• LED



- Audio: 5 (green)

- KVM: 5 (orange)

5 (green)

• Emulation



- Keyboard / Mouse: USB

• Video: 1080 p / 1920 x 1200 (DVI)


• Scan interval: 1 - 99 seconds (default: 5 seconds)


• Consumption: 5,3 V CC, 4,8 W


• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal, Plastic

- Weight: 0.53 kg (1.17 lb)

- Dimensions (L x P x A): 26.23 x 7.68 x 4.40 cm



Package contents

• 1 x CS 1794 switch KVMP™ USB 2.0 HDMI


• 4 x 2 L- 7 D 02 UH cable set KVM HDMI


• 1 x LIN 5 - 04 A 2 -J 13 G cable for firmware upgrade


• 1 x 0 AD 6 - 1605 - 24 EG power supply


• 1 x user guide
