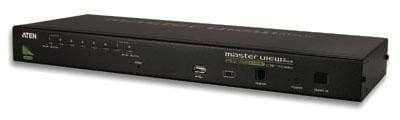

Switch KVM PS/ 2 -USB VGA 8 ports with Daisy-Chain - Aten CS 1708 A

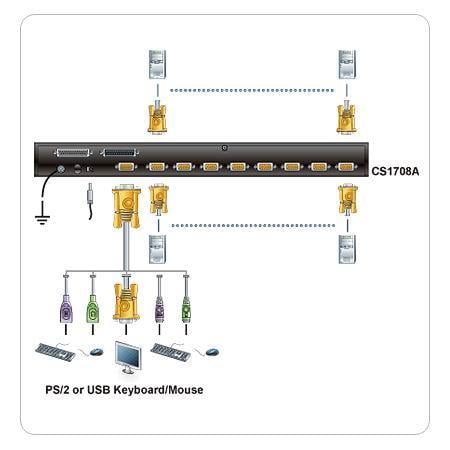

The switch KVM CS 1708 A è a control unit that allows you to access more ù computers from a single PS/ 2 or USB console (monitor, keyboard and mouse). A single CS 1708 A can ò control up to 8 computer. You can connect other 31 cascade switches so you can control 256 computer from a single console. The product also has a USB port on the front panel affinch&eaucute; each connected computer can access the connected peripherals in turn.



Features

• A USB-PS/ 2 console controls up to 8 computer


• Waterfall connection up to 31 unità additional to control 256 computer from one console


• The front USB port allows each computer to access USB devices


• Double interface: supports computers and consoles with PS/ 2 or USB keyboards and mouse


• Multiplatform support (Windows, Linux, Mac and Sun)


• DynaSync & trade; Video: Stores the Extended Display Identification Data (EDID) of console monitors to optimize screen resolution


• Supports USB keyboards for PC, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Superior video quality: up to 2048 x 1536 ; DDC 2 B


• Does not require software: convenient computer selection via front panel buttons, multilingual OSD and shortcut keys


• Automatic detection of the unit position in cascade installations; no manual dip switch setting is required; the LED on the front panel indicates the position of the unit;


• Automatic reconfiguration of port names when changing the unit sequence;


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator each with their own profile


• Modelità automatic switching for monitoring of computers selected by the user


• Modelità transmission: simultaneous execution of operations on selected computers


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Simultaneous firmware update for all KVM switches connected to cascade


• Installable in 1U rack enclosure 19



Computer Links

• Direct: 8


• Maximum: 256 (via interconnection)



Select Port 

• OSD, shortcut, Button



Connectors

• Console ports  



1 x Male SPHD- 18 (yellow)

• KVM & Ports



8 x Female SPHD- 15 / 17 (yellow)

• Connecting ports  



1 x DB- 25 female (black)

1 x DB- 25 male (black)

• Firmware   Update



1 x RJ- 11 female (black)

• USB/emsp port;



1 x USB type A female

• Feeding  



1 x female DC connector (black)



LED

• Online: 8 (orange)


• Selected: 8 (green)


• Station ID: 1 x 2 digits, 7 segments (orange)


• Power supply: 1 (dark green)



Switches

• Select Port: 8 x Button


• Recover firmware update: 1 x Scrolling



Emulation

• Keyboard / Mouse: PS 2 , USB



Video

• 2048 x 1536; DDC 2 B



Scan interval 

• 1 - 255 seconds (default: 5 seconds)



Consumption 

• DC 5.3 V: 3.8 W: 33 BTU



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.99 cm


• Height: 4.40 cm



Package contents

• 1 KVM switch with standard rack mounting kit


• 1 PS/ 2 2 L- 5202 P cable


• 1 cable KVM USB 2 L- 5202 U


• 1 cable LIN 5 - 27 X 6 -U 21 G connection to the console


• 1 cable for firmware upgrade


• 1 set of feet (4 pcs)


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 user guide
