KVM LCD 17 " console with Keyboard and Touchpad by Rack 1 U - Aten IDATA CL- 1000 M

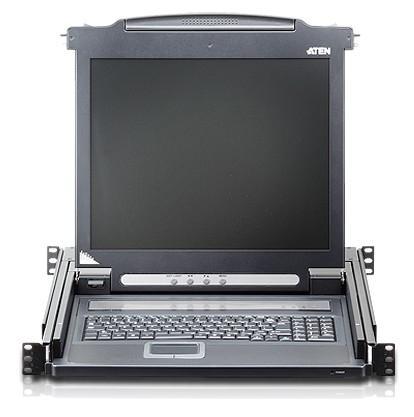

IDATA CL- 1000 M è a KVM LCD console that acts as front end for standard KVM switches. The è device consists of 17 inch LCD monitors with LED backlight, keyboard and integrated touchpads, all in a case Slideaway for mounting 1 U rack. Those who già own a switch, can take advantage of the efficiency and space saving of the KVM CL 1000 console with LCD screen without having to buy a KVM switch.



Features

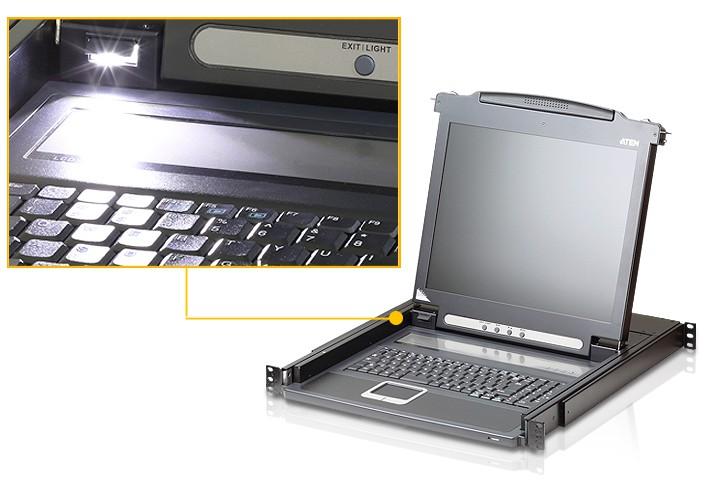

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM console integrated with an LCD monitor with 17 LED backlight in a sliding case with space at the top and bottom to ensure trouble-free operation in a 1 U high rack system


• The LCD module rotates up to 115 degrees for a more ù comfortable viewing angle


• The smaller Slideway è housing of the 1 U with space on the upper and lower sides to allow freedom of movement in the 1 U rack space


• Compatible with most PS/ 2 KVM switches


• Integrated internal power supply


• Depthà adjustable to enter the rack


• High video resolution:



- Up to 1280 x 1024 @ 75 Hz

- Supports DDC, DDC 2 , DDC 2 B

• DDC Emulation: The VGA settings of each computer are automatically adjusted for optimal output on the LCD monitor


• Supported keyboard languages: English (US), English (UK), German, German (Switzerland), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian


• Improved design: installation by a single person (optional)


• Multiplatform support: Windows 2000 /XP/Vista, Linux and FreeBSD



Technical specifications

• Connectors:



- KVM doors: Keyboard/Video/Mouse  1 SPHD female (yellow)

- Power supply: 1 AC socket 3 poles

• Switches &



- LCD monitor adjustment 4 buttons

- Restore 1 button slightly recessed

- Power supply 1 rocker

• Keyboard emulation and mouse PS 2


• LCD video from 17 , resolution 1280 x 1024 ; DDC 2 B


• Nominal input from 100 to 240 VCA; 50 / 60 Hz; 1 A


• LCD electric consumption from 17 120 V/ 14 W; 230 V/ 16 W


• Material case: metal - plastic



LED 

• Power supply 1 (dark green)


• Bloc Num 1 (green)


• Bloc Maiuscole 1 (green)


• 1 (green)



Environmental features

• Operating temperature from 0 to 40 °C


• Storage temperature from - 20 to 60 °C


• Humidità relative from 0 to 80 %, without condensation



Compatibilityà

• Multiplatform support: Windows 2000 /XP/Vista, 7 / 8 / 10 , Linux and FreeBSD



Dimensions

• Width: 53.83 cm


• Depthà: 48.00 cm


• Height: 4.40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x IDATA CL- 1000 M with standard rack mounting kit


• 1 x Custom KVM cable set (1.8 m) 2 L- 5202 UP


• 1 x Power cable LIN 2 - 418 K-E 12 G


• 1x User guide
