Switch KVM over IP VGA Single Door Shared Access Local/Remote - Aten IDATA CN- 9000

The KVM over IP switch VGA CN 9000 allows remote access and control of video, audio and virtual media of a PC or a workstation and è equipped with high definition VGA videos with resolutions up to 1920 x 1200 at 60 Hz both on the local and remote console. Equipped with USB and PS/ 2 support (keyboard and mouse), the 9000 è CN compatible not only with modern workstations, but also with old generation servers and legacy systems.



For simplified operations, the mini USB port on the back panel è designed as a USB laptop console port (LUC) for connecting to a laptop, to allow users access to PC/server to simplify ordinary maintenance without requiring additional monitors, keyboards, and mouse.



To ensure connectivity à, CN 9000 è equipped with two LANs and dual power to maintain operation in the server room continuous and efficient. The power status detection function automatically sends event notifications when the device becomes offline (e.g. power failure) for monitoring the device status. In addition, the CN 9000 has a relè/DI (digital input) terminal block to 5 pin that allows remote restart of the local server, over receiving digital inputs from an input/alarm connected to notify important events.



To simplify remote management, the WebClient CN Viewer 9000 supports remote desktop access without additional software applications. The KVM over IP VGA switch offers a web-based user interface for remote access and management. Thanks to the unified multi-language interface, it efficiently reduces training times as well as increasing productivityà.



Hardware

• High video resolution – up to 1920 x 1200 at 60 Hz


• USB Laptop Console (LUC) – a dedicated USB mini port for direct and easy operation of the console via laptop


• Provides capabilities à over IP to KVM switches that are not functional à over IP


• Provides a FPGA graphics processor for better image qualityà


• Double power supply to ensure an instant connectivity


• Two NIC 10 / 100 / 1000 Mbps for redundant LAN or dual IP operation


• Supports 5 pin relay/DI terminal for environment monitoring and remote reboot control


• Supports USB and PS/ 2 legacy keyboard and mouse



Management

• Conform with RS- 232 standards for serial control


• Up to 64 user account: simultaneous sharing of control, up to 32 users


• Management of console access rights


• Session End Function: Administrators can terminate running sessions


• Log events and support Windows-based Server log


• Event Logs: CN 9000 can & grave; record all events performed and write them in a searchable database.


• Supports immediate notification of important system events via email, SNMP and Syslog trap


• Updated firmware via remote access


• Access to CN 9000 via an integrated serial viewer, or through third-party software (such as Putty) for Telnet and SSH sessions


• Out-of-band support: access the CN 9000 via the serial port using a remote connection


• Modelità port sharing allows more ù users to access the server simultaneously


• DDNS: allows the mapping of the dynamic IP address assigned by a server DHCP server to the host name


• Supports user account export/import and configuration settings


• Supports browser operations check from permissions


• Supports IPv 6


• Integration with the ATEN CC 2000 Management Software


• Integration with CCVSR ATEN video recording software



Easy-to-use interface

• The web-based user interface and AP offers a unified multilingual interface to reduce user training time and increase productivityà


• Multiplatform client support (Windows, Mac, Linux, Sun)


• Multibrowser support (IE, Firefox, Safari, Opera, Chrome)


• Web-based user interface in pure web technology allows administrators to run administrative ` activities without a pre-installed Java software package


• Virtual remote desktop in full screen or scalable and scalable


• Magic Panel with configurable function for quick start



Advanced security

• Support for smart/CAC card reader


• External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory


• Supports data encryption TLS 1.2 and RSA 2048 -bit certificates to ensure users access from RC 4 or Random browsers for encryption of independent keyboard/mouse data, video and virtual media


• Flexible encryption design that allows users to choose any combination of 56 -bit DES, 168 -bit 3 DES, 256 -bit AES, 128 -bit RC 4 , or Random for keyboard/mouse, video, and virtual media encryption independently


• Support for IP/MAC filter


• Supports password protection


• Private CA



Virtual Media

• Virtual Media allows you to enable file applications, patch your operating system, install software and perform diagnostic tests


• Works with servers equipped with USB operating system and BIOS


• Supports USB 1.1 and DVD/CD USB 2.0 drives, USB mass storage devices, PC hard drives, ISO folders and images



Virtual remote desktop

• You can adjust the qualityà and video tolerance to optimize data transfer speedà, depth settingà monochrome colors, threshold settings and noise for data bandwidth compression in poor bandwidth situations


• Full screen or scalable video display


• Message board for communication between remote users


• On-screen keyboard with multilingual support


• DynaSync™ Mouse: Automatically sync local and remote mouse movements


• Support Close Macro


• BIOS level access

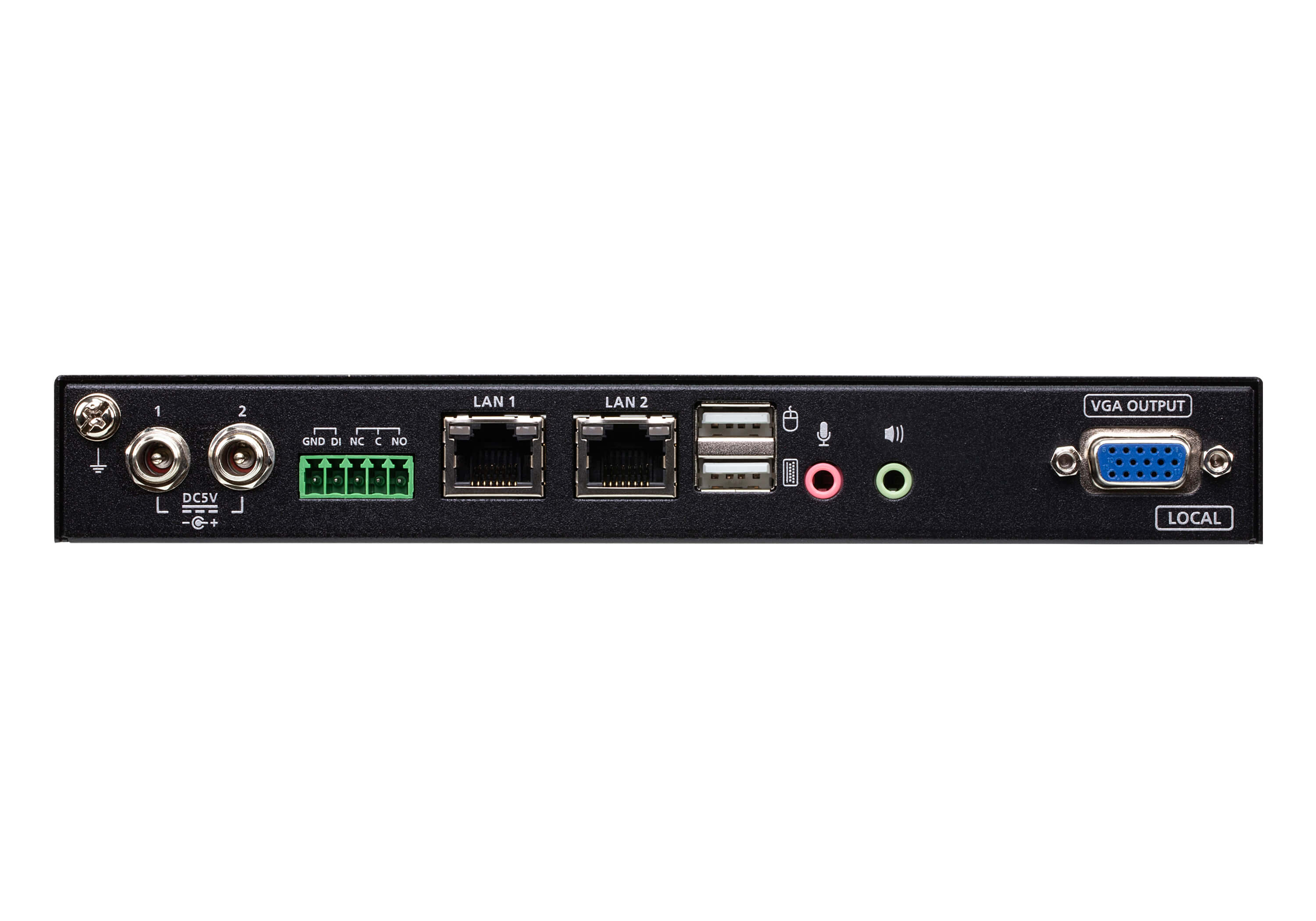

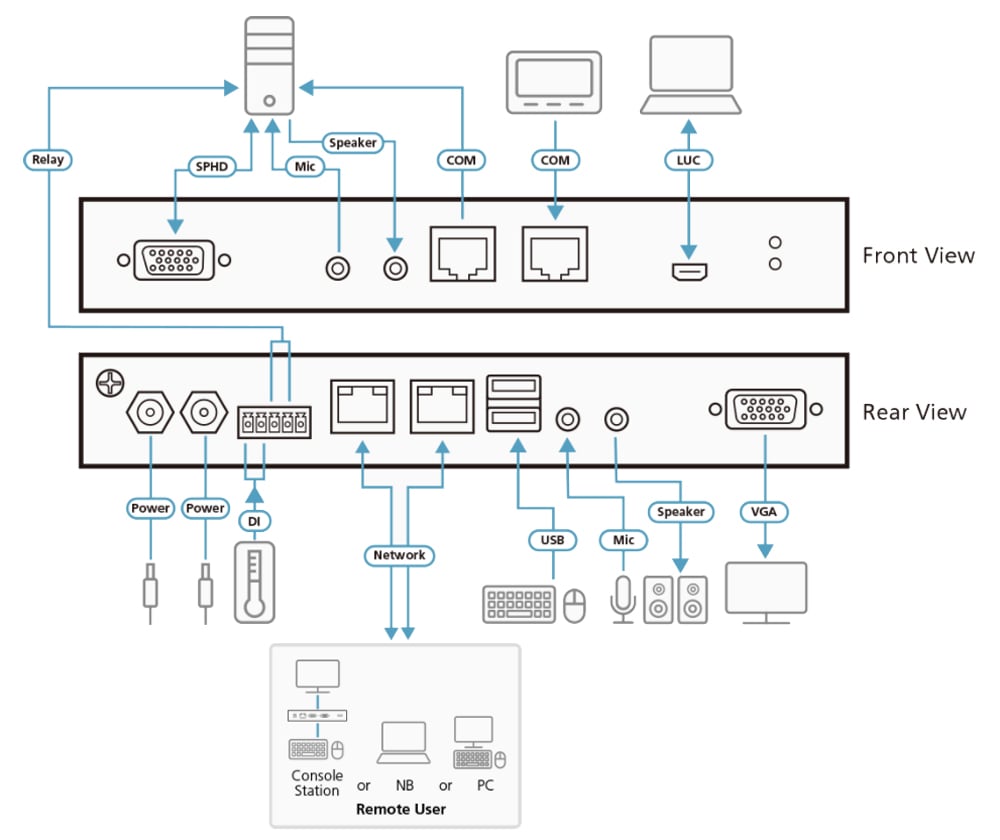

Connectors

• Console ports  



2 x USB Type A (white)

1 x female VGA (blue)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

• KVM & Ports



1 x SPHD female (yellow)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

• LAN doors: 2 x RJ- 45 female


• Virtual Media  1 x USB Mini-B female


• Power supply   2 x DC connector


• Serial  2 x RJ- 45 female


• Control  1 x PS/ 2 female



Dimensions

• Width: 20,00 cm


• Depthà: 15,41 cm


• Height: 2,85 cm



Environmental features

• Operating temperature & 0 - 50 °C (CN 9000); 0 - 40 °C (Alimentator)


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Package contents

• 1 x switch KVM over IP VGA CN 9000


• 1 x KVM cable (VGA, PS/ 2 , USB)


• 1 x USB cable (USB Type-A to Mini-B)


• 1 x power supply


• 1 x control terminal unit


• 1 x mounting kit


• 1 x set of feet


• 1 x user instructions
