Switch KVM over IP PS/ 2 -USB VGA 16 Doors 1 U CS 1716 I - Aten IDATA CS- 1716 I

Superior video quality - up to 2048 x 1536 ; DDC 2 B for local console; up to 1920 x 1200 at 60 Hz (quality à video è improved at Full HD) and 1600 x 1200 at 60 Hz / depthtà 24 bit color for remote sessions.

Supports encryption of TLS 1.2 data and 2048 bit RSA certificates for secure access to users via browser.

The modeà Panel Array allows you to monitor more ù servers simultaneously from a single screen. The video output of each selected server appears in your pane; the user can ò select the number of visible panes.



IDATA CS- 1716 I è a KVM 16 port switch in a 1 U housing for convenient rack mounting. The device allows system administrators to access connected servers both locally and via IP (LAN and/or WAN). It works independently of the platform used, Windows, Linux, Mac and Sun.

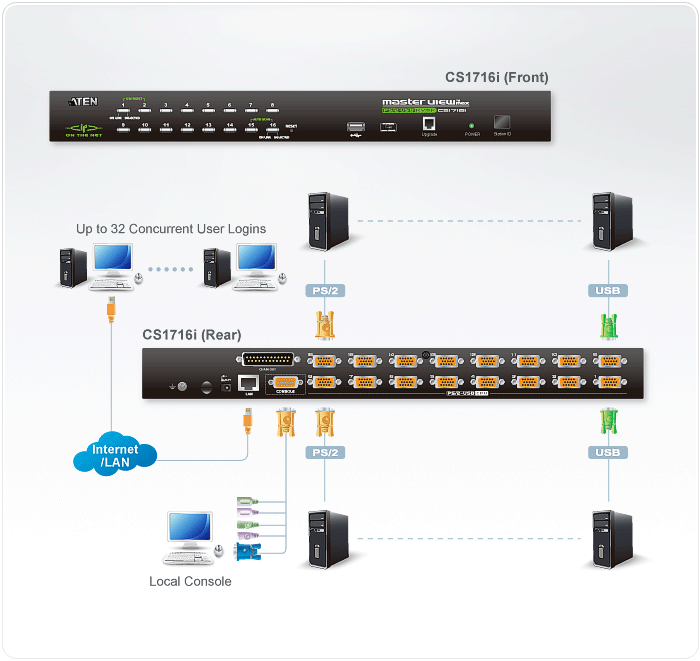

The special KVM cables and ATEN 'Video DynaSync' function always provide optimal video resolution. KVM è installation can also be easily expanded using the cascade connection, so that you can control up to 256 server.



Among other fantastic features, Panel Array Mode offers the ability to monitor up to 16 servers per switch; while Mouse DynaSync™ automatically synchronizes local and remote mouse pointer movements for perfect alignment without considering mouse acceleration settings on the server.



It supports the most high security protocols, e.g. TLS 1.2 encryption for browser, and RC 4 encryption for secure transmission of keyboard, mouse and video data. To make user management integration more simple and efficient, IDATA CS- 1716 I also supports authentication and permission via remote servers such as RADIUS, LDAP, LDAPS and MS Active Directory.



These powerful functions not only help administrators manage their server environments efficiently and flexibly, but also offer an economical management solution for the SME sector.





Management

• Up to 64 user account

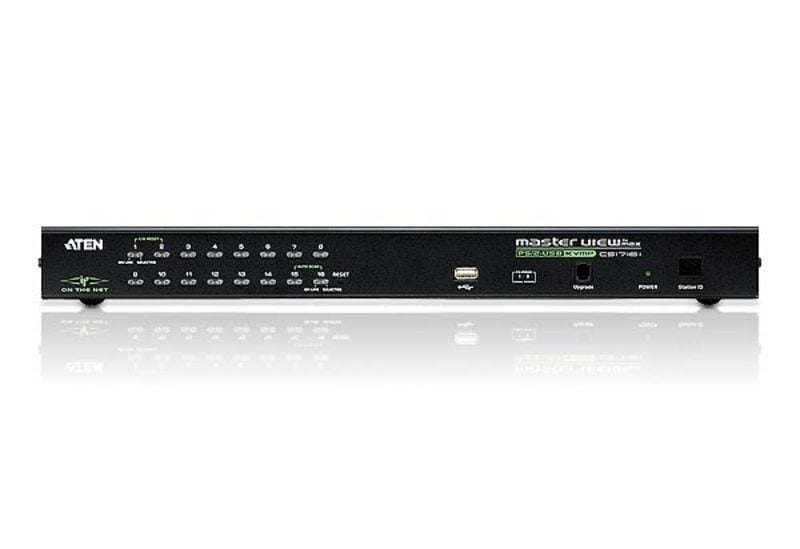

• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• Supports up to 32 contemporary login


• Local and remote multilingual web and OSD interfaces with tree view


• Quality à video adjustment to adapt to different network environments


• Modelità automatic switching for monitoring of computer selected by the user


• Modelità – transmission operations from the keyboard can be performed simultaneously on all selected computers during installation (software installation, system shutdown, etc.)


• Updated Firmware


• Import/export configuration settings and user accounts


• Event recording


• Enabling/disabling browser access


• Compatible IPv 6



Easy-to-use interface

• Browser-based and AP-based interfaces, in addition to the local console OSD, offer a unified multilingual interface to reduce learning time and increase productivityà


• Multiplatform client support (Windows, Mac OS X, Linux, Sun)


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• Automatic reconfiguration of port names when changing the unit sequence;


• The modeà Panel Array allows you to monitor more ù servers simultaneously from a single screen. The video output of each selected server appears in your pane; the user can ò select the number of visible panes


• Support for Windows and Java clients, the Java client works with all operating systems



Advanced security

• Secure transmission of keyboard/mouse/video signals via 4 RC encryption to 128 bits


• Supports data encryption TLS 1.2 and 2048 bit RSA certificates for secure access to users via browser


• External authentication support (remote): RADIUS, LDAP, LDAPS and MS Active Directory


• Support for IP/MAC filters


• Recording and authentication of local and remote accesses



Virtual remote desktop

• Resizeable remote desktop window


• The message board allows connected users to communicate with each other and a user to take sole control of KVM functions


• Mouse DynaSync™


• On-screen keyboard with multilingual support


• BIOS level access



Hardware

• 16 KVM switch ports for remote access: monitoring and control of 16 computers from a single KVM console


• Waterfall connection up to 15 unità additional to control 256 computer from one compatible console


• Automatic detection of the position of the unit à in cascade installations; no manual setting of the DIP switch is required; the LED on the front panel indicates the position of the unità


• Hot connection: you can add and remove computers without having to turn off the switch


• Multiplatform support: Windows, Linux, Mac and Sun


• The USB hub on the front panel allows connected computers to access USB devices


• Double interface: supports computers with PS/ 2 or USB keyboard and mouse configurations and automatically detects interface type


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Supports USB keyboards for Windows, Mac and Sun


• Superior quality video - up to 2048 x 1536 ; DDC 2 B for local console; up to 1920 x 1200 at 60 Hz (quality à video è improved at Full HD) and 1600 x 1200 at 60 Hz / depthtà 24 bit color for remote sessions


• DynaSync & trade; Video: Stores the Extended Display Identification Data (EDID) of console monitors to optimize screen resolution


• Mountable in 1 U rack



Technical specifications

• Computer connections: direct 16 - maximum 256 (via interconnection)


• Select Port: OSD/GUI; shortcut; button

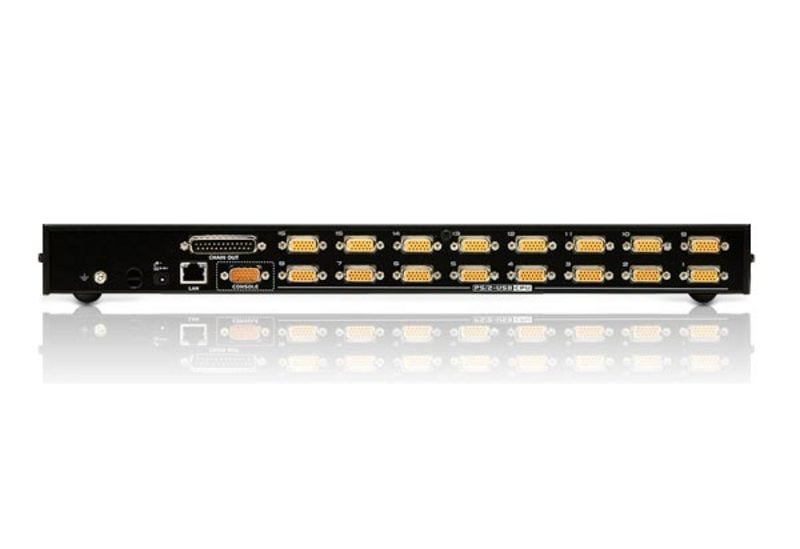

• Console doors: 1 x Male SPHD- 18 (yellow)


• KVM doors: 16 x Female SPHD- 17 (yellow)


• Connecting doors: 1 x DB- 25 male (black)


• Power supply: 1 x DC connector


• LAN doors: 1 x RJ- 45 female


• Firmware update: 1 x RJ- 11


• USB port: 1 x USB type A


• 1 semi-collected button for recovery  


• 16 buttons to select port  


• 1 slide switch for firmware update recovery 


• 16 LED (orange) for Online 


• 16 LED (green) for Selected 


• 2 x 7 LED segments (orange) for station ID 


• 1 LED (dark green) for Power Supply &


• 1 LED (orange/green - on the LAN port) 10 / 100 Mbps 


• Keyboard emulation / Mouse: PS/ 2 , USB


• Local video: 2048 x 1536 ; DDC 2 B


• Remote Video: 1600 x 1200 at 60 Hz / depthtà 24 bit color


• Scan interval: 1 - 255 seconds


• Consumption: DC 5.3 V: 9.2 W: 58 BTU


• Dimensions (L x P x A): 43.72 x 15.96 x 4.40 cm



Environmental features

• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Package contents

• 1 Switch KVM Over IP IDATA CS- 1716 I


• 1 PS/ 2 KVM cable


• 1 USB KVM cable


• 1 connecting cable to the console


• 1 cable for firmware upgrade


• 1 assembly kit


• 1 set of feet (4 pcs)


• 1 power supply


• 1 user guide
