Switch KVM HDMI USB to 16 Doors - Aten IDATA CS- 17916

The KVM HDMI USB switch to 16 ports IDATA CS- 17916 è a multifunction device that combines access and control up to 16 HDMI computers from a single console composed of USB keyboard, USB mouse and monitor.

The CS 17916 allows you to make cascade connections up to two levels, so you can control a maximum of 256 computers from a single console.

This switch also offers multiscreen functionality, which allows you to use standard USB cables to connect up to eight switches in multi-screen installations where each è computer has more ù video cards. It allows with extreme ease à to combine, analyze and monitor video output, simplifying soì the working environment.

In addition, CS 17916 has the OSD function of ATEN to access any computer of the installation and the possibility to save and restore the configuration of the OSD and its settings.

IDATA CS- 17916 transmits audio and supports multimedia keyboards. You can listen to the audio output of each computer via two pairs of speakers (one at a time).



Features

• A USB console controls sixteen computers with HDMI interface and two other USB 2.0 devices


• HDMI compatible


• Possibility to connect in cascade up to two levels to control a maximum of 256 computers


• Multiscreen function: to stack up to eight units à CS 17916 and view video of up to eight monitors (double screen, triple screen, quadruple screen, multiscreen)


• Hub with 2 USB ports 2.0 included


• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• Independent switching of KVM and USB control


• OSD backup/restore function: admins can back up the switch configuration and user profiles


• Updated Firmware


• DynaSync Video: ATEN's exclusive technology that eliminates all-time display problems and optimizes resolution when switching from door to door.


• Qualityà higher video up to 1080 w/ 1920 x 1200 at 60 Hz


• Support widescreen resolutions


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Console audio ports on the front panel for easy access


• Modelità automatic switching for monitoring all computers


• HDCP compatible


• Multiplatform support: Windows, Linux, Mac and Sun


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Full keyboard emulation for error-free startup


• Mac/Sun 1.2 keyboard support and emulation *


• Languages for OSD include English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French


• Multilingual keyboard map: supports English (US), English (UK), German (Germany), German (Switzerland), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Simplified Chinese



Note: Mouse emulation enabled for independent switching

1. For compatible PC computers. Mac and Sun computers must be compatible with USB connections.

2 . Emulation of the Sun/Mac keyboards via PC keyboard key combinations; Mac/Sun keyboards only work with their respective computers



Technical specifications

• Computer connections: direct 16 , max 256 (by cascade connection)


• OSD Port Selection, shortcut keys, buttons


• Connecting doors to the console:



- Keyboard: 1 USB type A female (black)

- Video: 1 HDMI female

- Mouse: 1 USB type A female (black)

- Speakers: 2 mini stereo female

(green, 1 on the front panel, 1 on the rear panel)

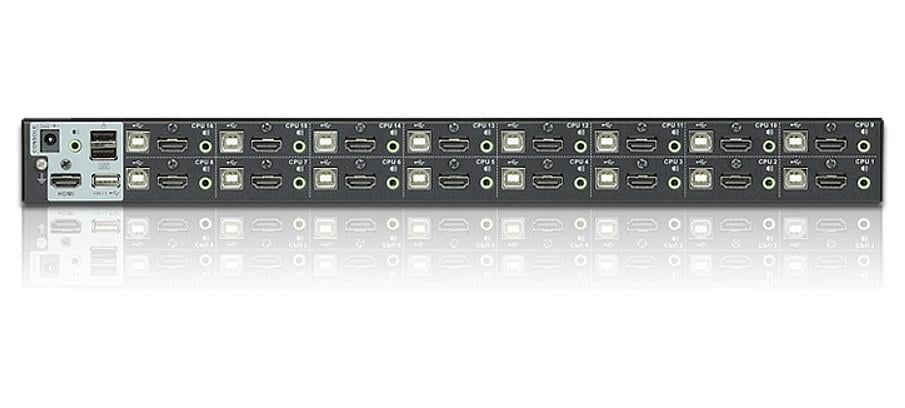

• KVM & Ports



- Keyboard/Mouse 16 USB type B female (white)

- Video 16 HDMI female (white)

- Speakers 16 mini female stereo (green)

• F/W  1 RJ 11 female (black)


• Power supply 1 DC connector


• USB hub 2.0 2 USB type A female (white)



(1 on the front panel, 1 on the rear panel)

• Switches:



- Door selection: 16 buttons

- Restore: 1 button slightly recessed

- F/W update: 1 sliding switch

• Keyboard/Mouse emulation: USB


• Video: up to 1080 w/ 1920 x 1200 at 60 Hz


• Switching range from 1 to 255 seconds (default: 5 sec)


• Power consumption: DC 5,0 V, 12,2 W



LED

• USB connection: 16 (green)


• Online/Selected: 16 (orange)


• Power supply: 1 (dark green)



Environmental features

• Operating temperature from 0 to 50 °C


• Storage temperature from - 20 to 60 °C


• Humidità 0 to 80 % RH, without condensation



Dimensions

• Width: 43,72 cm


• Depthà: 25,66 cm


• Height: 4,40 cm



Certifications

• CE


• RAEE



Package contents

• 1 x CS 17916 Switch KVM HDMI USB to 16 ports with rack mounting kit


• 2 x 2 L- 7 D 02 UH set of cables KVM HDMI USB customized (1.8 m)


• 1 x LIN 5 - 04 A 2 -J 11 G cable for firmware upgrade


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x 0 AD 8 - 8005 - 40 EG power supply


• 1 x set of feet (4 pcs)


• 1 x user guide
