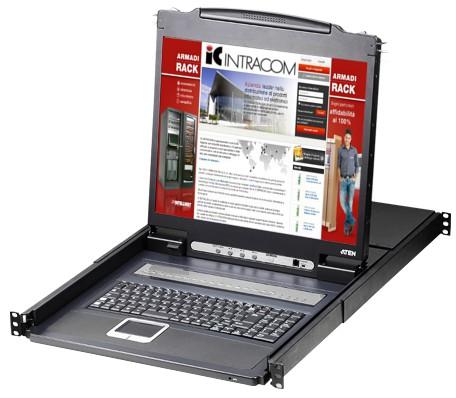

Switch KVM USB-PS 2 8 Doors with LCD 19 " by rack 19 " - Aten IDATA CL- 1308 N

With more and more space being reduced in the server room and increased maintenance costs, network administrators are more ù than ever in search of solutions that reduce costs and needà space. KVM switches with ATEN LCD monitors save space thanks to their approach to KVM switching technology, integrating an LCD screen, full keyboard and touchpad into a single 1 U housing.



IDATA CL- 1308 N has an integrated LCD monitor from 19 . It has LED backlight and allows you to control up to 8 computers with a single keyboard, a single screen and a single mouse (i.e. from a single console). It is possible to connect other 8 switch cascade bringing to 128 the total number of computers controlled by a single keyboard-monitor-mouse console.



Easy and quick installation: è Simply connect the cables to the relevant ports. The switch supports both USB and PS/ 2 connections for computers. The CL 1308 directly intercepts the keyboard input, thus avoiding having to configure any software. Switching from one computer to another is done simply by pressing the buttons on the front panel corresponding to the LEDs of the ports, by combining keyboard shortcut keys or via the multilingual OSD menu.



Features

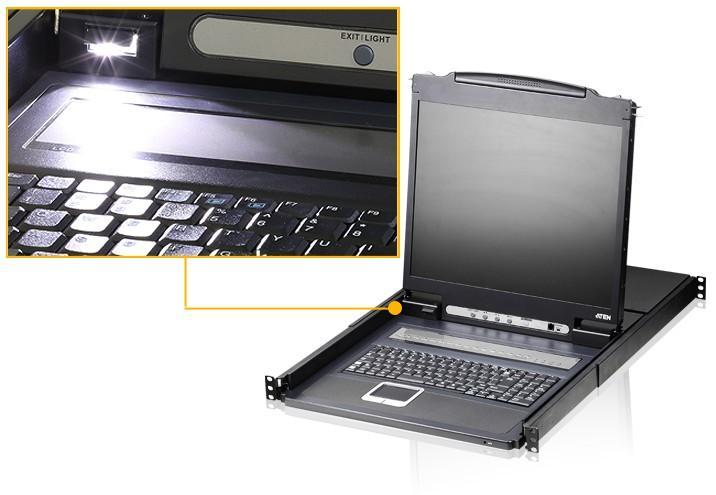

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting

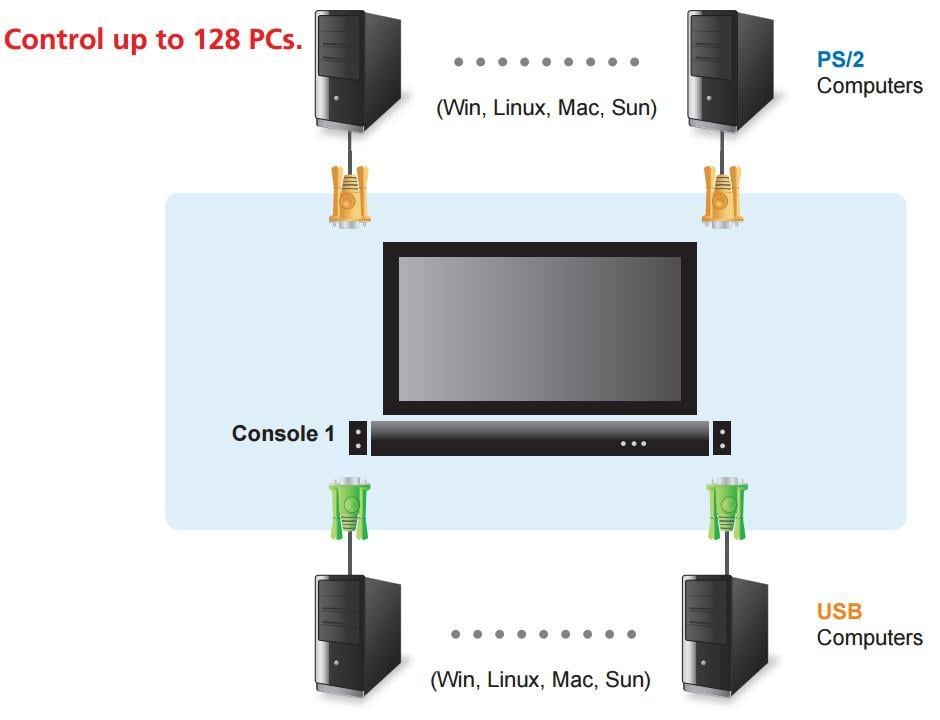

• A single console controls up to 128 computer by cascade connection to 2 levels and connects up to 8 switch.


• Integrated KVM console with 19 LCD screen with LED backlight


• Double interface: supports computers with PS/ 2 or USB keyboards and mouse


• Support for different platforms - Windows 2000 /XP/Vista, Linux, Mac and Sun


• Supports USB keyboards for PC, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Qualityà higher video: up to 1280 x 1024 @ 75 Hz; DDC 2 B


• Comfortable computer selection via front panel buttons, multilingual OSD and shortcut keys.


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator each with their own profile


• Modelità automatic switching for monitoring of computer selected by the user


• Modelità transmission: simultaneous execution of operations on selected computers


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Installed to rack


• Supported keyboard languages: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



Technical specifications

• Computer connections: direct 8 ; max 128 (by cascade connection)


• Port Selection: OSD, shortcut keys, buttons

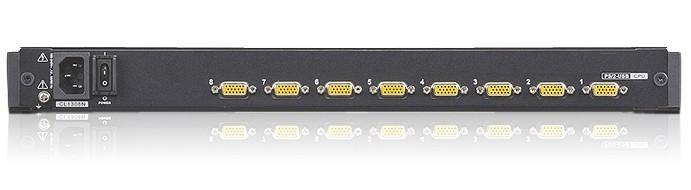

• Connectors:



- KVM doors: 8 SPHD- 17 female (yellow)

- FW update: 1 RJ- 11 female (black)

- Power supply: 1 AC socket 3 poles (IEC 60320 /C 14)

• Keyboard/Mouse emulation PS/ 2 and USB


• Video LCD from 19 inches 1280 x 1024 to 75 Hz DDC 2 B


• Switching interval 1 - 255 seconds


• Nominal input from 100 to 240 VCA; 50 / 60 Hz; 1 A


• Electric LCD consumption from 19 inch 120 V, 22 W



Switches 

• Restore: 1 button slightly recessed


• Power supply: 1 rocker


• Update FW: 1 sliding switch


• LCD command: 4 buttons


• LCD switching on/off: 1 button


• Door: 8 buttons



LED

• Online:  8 (orange)


• Selected: 8 (green)


• Power supply: KVM  1 (dark green)


• LCD: 1 (orange)


• Lock



- Num  1 (green)

- Maiuscole  1 (green)

- Scorr  1 (green)



Environmental features

• Operating temperature: from 0 to 50 °C


• Storage temperature: - 20 to 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 48,30 cm


• Depthà: 68,92 cm


• Height: 4,40 cm


• Weight: 12,59 kg



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x Switch KVM CL 1308 with rack mounting kit


• 1 x Custom KVM cable (1.8 m) 2 L- 5202 U


• 1 x Custom KVM cable (1.8 m) 2 L- 5202 P


• 1 x LIN 5 firmware update cable - 04 A 2 -J 11 G


• 1 x Power cable LIN 2 - 418 K-E 12 G


• 1x User guide
