USB-PS 2 VGA console with LCD 19 " and USB port (Dual Rail) - Aten IDATA CL- 5800 N

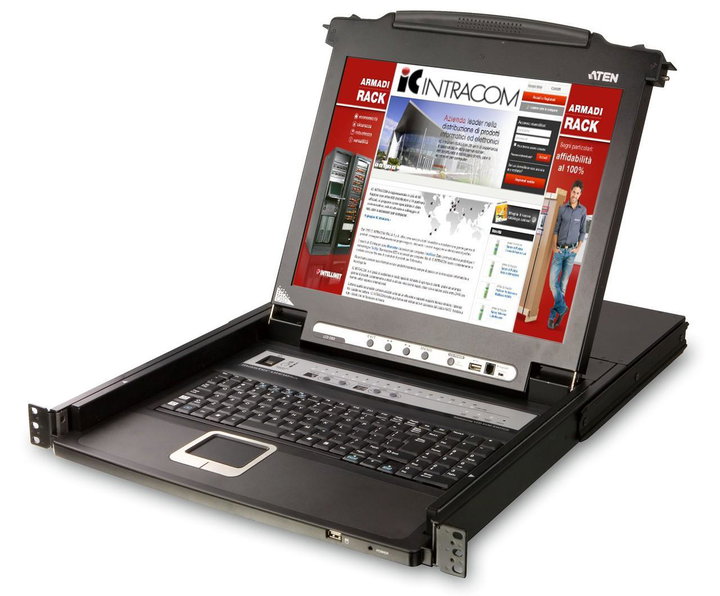

IDATA CL- 5800 N è a KVM LCD console with 19 LCD screen with LED backlight inches, full keyboard and integrated touchpads, all in a sliding case for mounting in 1 U rack.

The 19-inch LCD monitor modules and the CL 5800 keyboard/touchpad modules have independent scroll. To maximize the data center space, the keyboard/touchpad module can be hidden with a simple scroll when not è used. The thin LCD monitor can be flipped over for convenient monitoring of computer activity.



Features

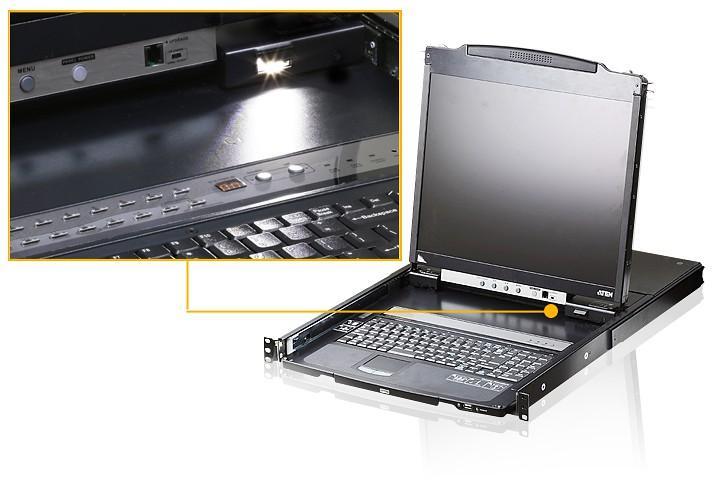

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM console integrated with an 19 LCD monitor with LED backlight in a Dual Rail housing with upper and lower side space for freedom à motion in 1 U rack systems


• Kit for standard rack mounting included – kit for easy installation in optional rack (installation by one person) and available for purchase


• Supports an external console* with PS/ 2 or USB connectors


• Double interface: supports KVM computers and switches with PS/ 2 or USB keyboards and mouse


• Door for an additional hot-connected USB mouse on the front panel (also serves as a door for USB devices)


• Internal power supply


• High video resolution:



- Up to 1280 x 1024 @ 75 Hz

- Supports DDC, DDC 2 , DDC 2 B

- DDC emulation of the LCD monitor

- The video settings of each computer are automatically adjusted for optimal output on the LCD monitor

• Standard keyboard to 105 keys, Sun keyboard emulation


• The Dual Rail design allows the LCD monitor module and the keyboard/touchpad module to operate independently


• Compatible with all KVM ATEN switches and most other KVM switches


• Depthà adjustable to enter the rack


• Updated Firmware


• Supports Microsoft IntelliMouse (5 buttons)


• Supports Logitech and Microsoft wireless mouse


• Console lock: allows you to retract and lock the console drawer when not used


• Keyboard language support: English (US), English (UK), French, German, German (Switzerland), Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian

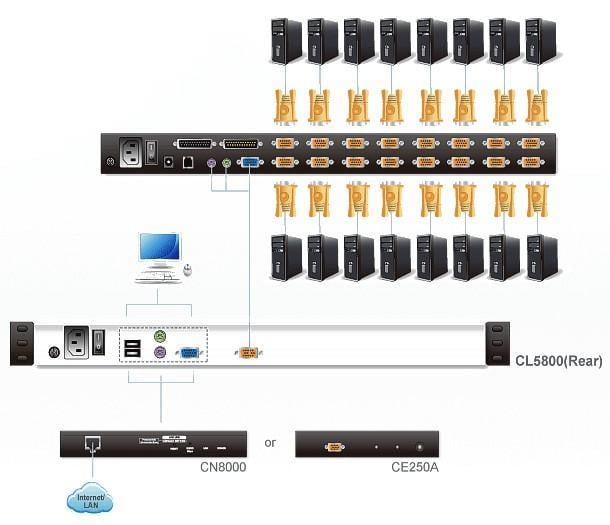

* Connect a KVM extender to remotely access computers at the bottom of the corridor or across the world (CN 8000) via the Internet.



Technical specifications

• Computer connections: 1


• Console selection: shortcut


• Console door:



- Keyboard: 1 Mini-DIN to 6 pin female (purple); 1 USB Type A female (black)

- Video: 1 HDB- 15 female (blue)

- Mouse: 1 Mini-DIN to 6 pin female (green); 1 USB Type A female (black)

• KVM doors: 1 SPHD- 18 female (yellow)


• USB port: 1 USB type A female (black)


• FW update: 1 RJ- 11 female (black)


• Power supply: 1 AC socket 3 poles


• Keyboard/Mouse emulation: PS/ 2 and USB


• Video: 1280 x 1024 @ 75 Hz; DDC 2 B


• Nominal input from 100 to 240 VCA, 50 – 60 Hz, 1 A


• Power consumption: 120 V/ 22 W; 230 V/ 24 W



Switches

• Restore: 1 button slightly recessed


• Power supply: 1 rocker


• Update F/W:  1 sliding switch


• LCD monitor power supply: 1 (orange)


• LCD monitor adjustment: 4 buttons



LED

• Power supply: 1 (dark green)


• LCD monitor power supply: 1 button


• Bloc 



- Num  1 (green)

- Maiuscole  1 (green)

- Scorr  1 (green)



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Depthà: 48.00 cm


• Width: 68.00 cm


• Height: 4.40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x PS/ 2 -USB CL 5800 Dual Rail console with LCD screen and standard rack mounting kit


• 1 x KVM PS/ 2 -USB cable (1.8 m) 2 L- 5302 UP


• 1 x Power cable LIN 2 - 418 K-E 12 G


• 1 x LIN 5 firmware update cable - 04 A 2 -J 14 G


• 1x User guide
