LCD console 18,5 " Widescreen Single Binary and Ultra-Reduced Depth - Aten IDATA CL- 3100 NX

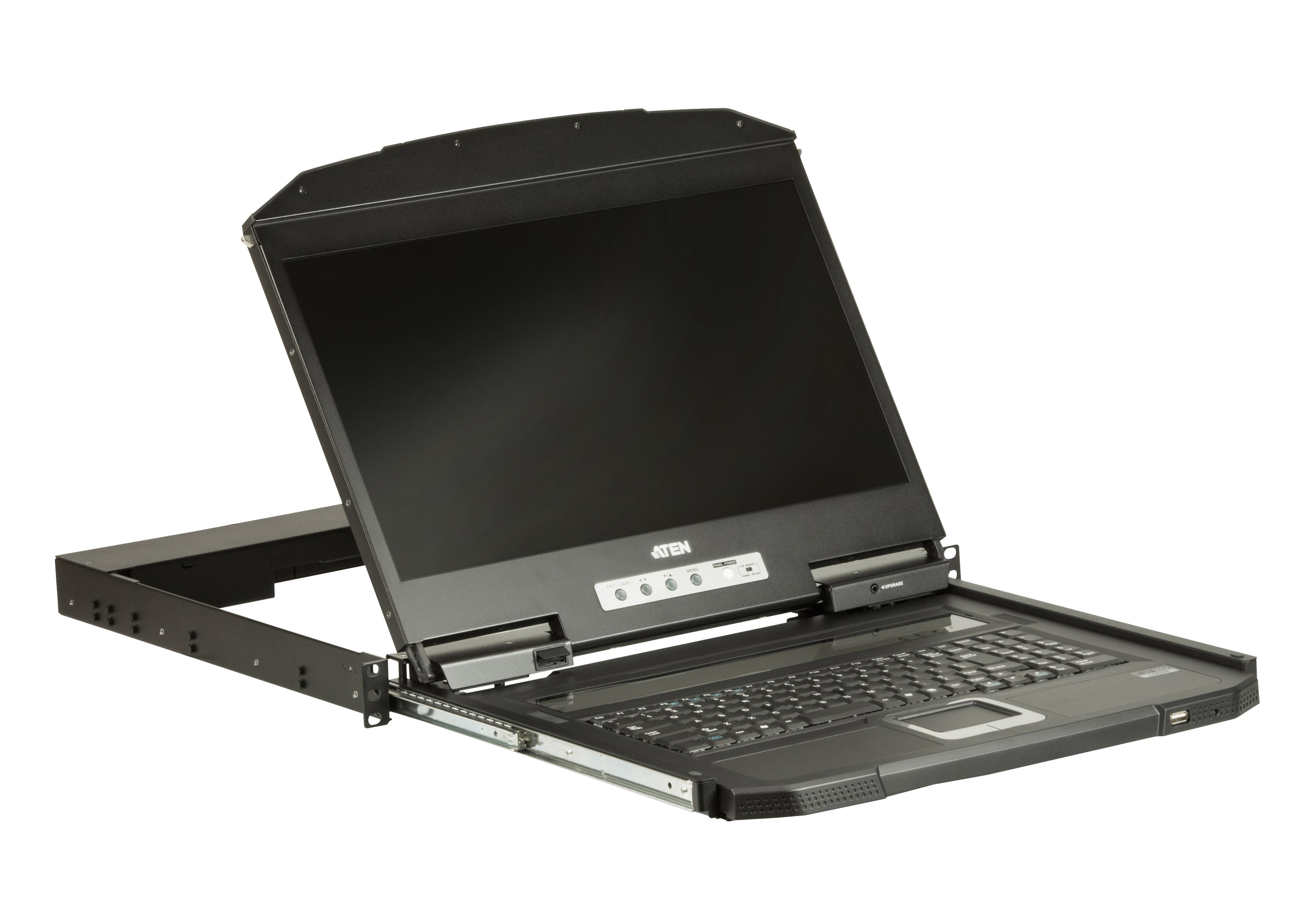

The USB VGA LCD console IDATA CL- 3100 NX è a single track LCD console with low depth à with widescreen LCD monitors with 18,5 LED backlight and integrated keyboard and touchpads. The low depth à design adapts to all 19 frames, in particular it adapts to shallow racks. Aten's CL 3100 offers an ideal space-saving solution for special environments, such as external camera compartments (OBvans) and compact control rooms.

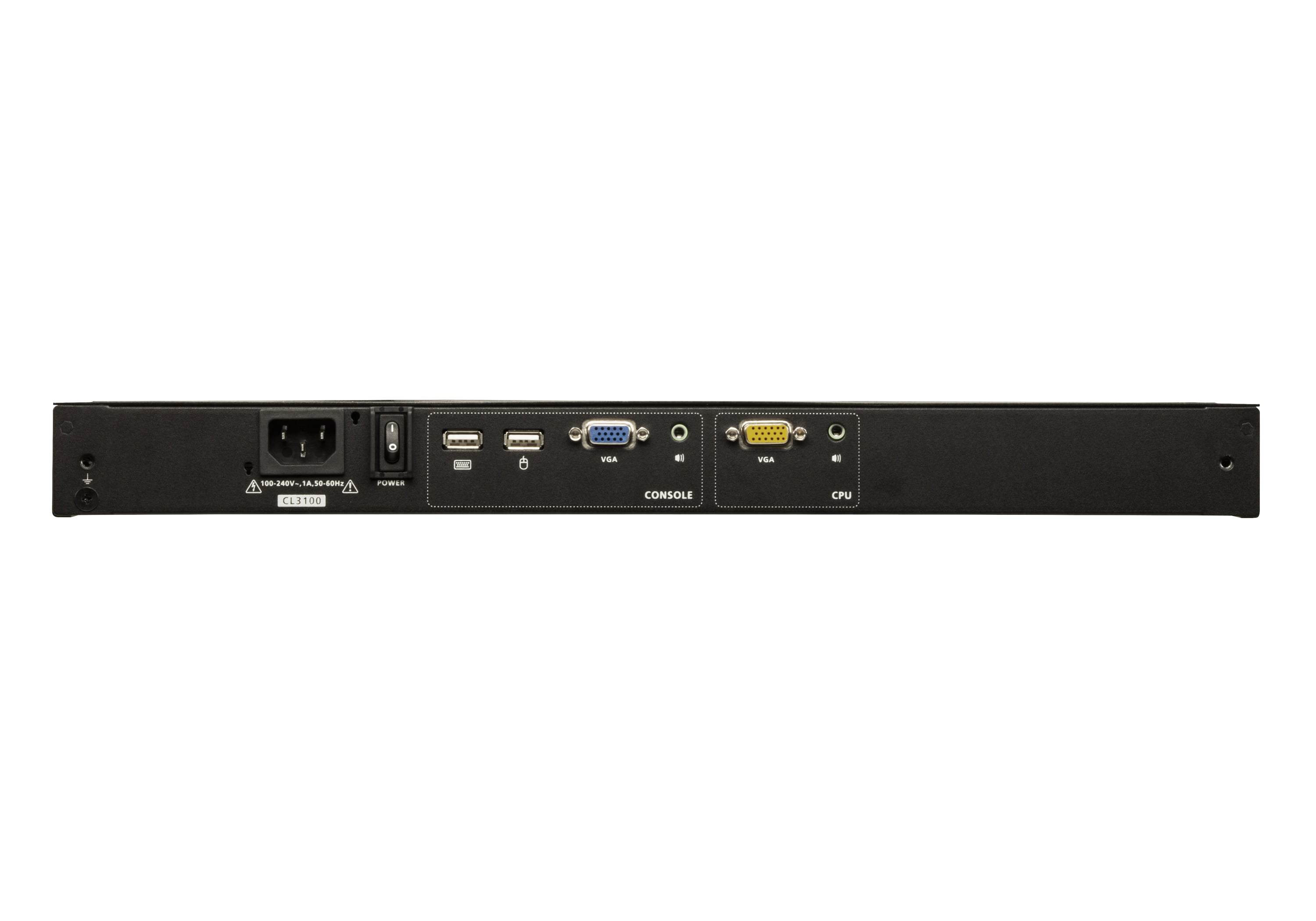

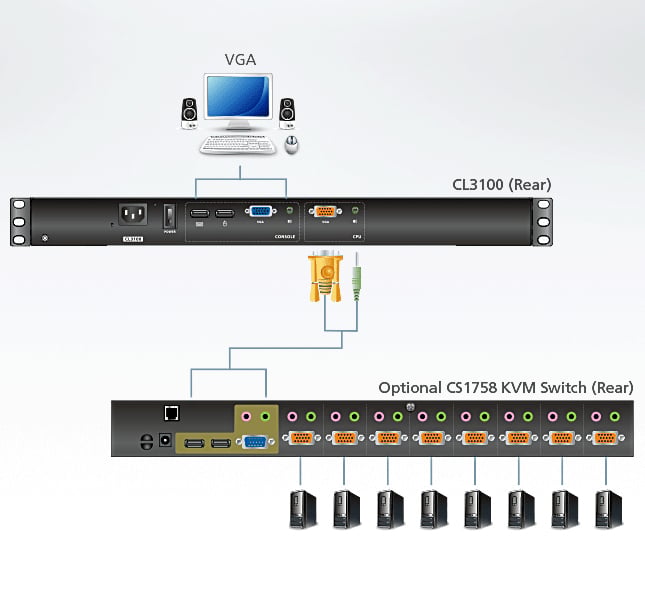

IDATA CL- 3100 NX è an advanced slide console dedicated to compatible KVM VGA switches. For additional comfortà, users can choose to manage the computer from an external console. It has an external USB mouse port on the front panel of the unità, while the ports for a second KVM console (USB keyboard/mouse and VGA monitor) are located on the rear panel. The CL 3100 also includes two mini stereo ports for connecting external speakers.



With a rich set of functions, IDATA CL- 3100 NX è designed to exceed the requirements of optimization of the use of space, adaptive implementation and operational versatility, and è ideal for applications such as mobile live streaming in the field of transmissions or control rooms with limited space in any sector.



Optimization of space use

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM LCD console integrated with widescreen LCD monitor with 18,5 LED backlight in a single track case with space at the top and bottom to ensure trouble-free operation in a 1 U high rack system


• Depth design à reduced for use with rack mounting equipment in confined spaces


• – console lock allows the console tray to stay completely locked in position when not used


• 2 -in- 1 U mounting kit optional (2 K- 0001 / 2 K- 0002 / 2 K- 0007 ): suitable for CL 3100 and a KVM/KVM over IP switch in the 1 U space to save space, simple and flexible operations



Reliability and versatility; operational

• Supports VGA video input; supports an external console with USB/VGA connectors


• 18,5 LCD screen with 1366 x 768 resolution to 60 Hz


• External console supports video resolutions up to 1920 x 1200 at 60 Hz


• Audio support for connecting speakers


• Additional hot-plug USB mouse port on the front panel (it also works as a USB peripheral port)


• Console selection with shortcut key


• Standard keyboard with 105 keys



Installation flexibility

• Kit for mounting on standard rack included


• Kit for mounting on optional racks included among the installation options


• No software needed


• Updated Firmware


• Supports hot link



Connections

• KVM Doors:



1 x SPHD female (Yellow)

1 x audio jack from 3,5 mm female (Green)

• Firmware update: 1 x audio jack from 3,5 mm female (Black)


• USB port: 1 x USB type A female


• Power supply: 1 x IEC 60320 /C 14


• External console doors:



1 x HDB- 15 female (Blue)

2 x USB Type A female

1 x audio jack from 3,5 mm female (Green)

• Mouse / Outer peripherical: 1 x USB Type A female (front)



Switches

• Restore: 1 x semi-collected push button


• Firmware update: 1 x sliding switch


• Power supply: 1 x rocker switch


• LCD control: 4 x push buttons


• LCD adjustment: 4 x Push button


• LCD power supply: 1 x LED push button



LED

• Feeding  



1 x KVM console (dark green)

1 x LCD (Orange)

• Block  



1 x Block numbers (green)

1 x Case lock (green)

1 x Scrolling block (green)

• LED lighting: 1



Panel Specifications

• LCD module: LCD TFT from 18,5


• Resolution: 1366 x 768 at 60 Hz


• Response time: 5 ms


• Viewing angle: 170 ° (O), 160 ° (V)


• Pixel size: 0,3 mm x 0,3 mm


• Supported colors: 16,7 millions of colors


• 1000 contrast ratio: 1


• Brightness: 250 cd/m²



Video

• Video input resolution:



up to 1920 x 1200 at 60 Hz

1366 x 768 at 60 Hz, DDC 2 B



Emulation

• Keyboard / Mouse: USB



Input power load 

• 100 - 240 V AC, 50 / 60 Hz, 1 A



Consumption

• 110 V AC, 13,8 W, 80 BTU


• 220 V AC, 14,1 W, 81 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Physical characteristics

• Structure: metal + plastic


• Type of guide: single track


• Weight: 9,07 kg


• Dimensions (L x P x A): 48,06 x 47,70 x 4,28 cm


• Body dimensions (L x P x A): 44,92 x 43,00 x 4,28 cm



Package contents

• 1 x CL 3100 LCD KVM console with kit for mounting on standard racks


• 1 x LIN 5 - 23 X 5 -X 1 BG cable KVM VGA USB (VGA, USB, Audio; 1,8 m/ 6 feet)


• 1 x LIN 5 - 04 A 2 -J 15 G cable for firmware update


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x User Manual
