Switch KVM HDMI 4 K USB 3.0 to 8 ports - Aten IDATA CS- 18208

This KVM HDMI 4 K USB 3.0 switch to 8 ports è can effectively access and control up to 8 HDMI computers from a single console with USB keyboard, USB mouse and HDMI monitor. It supports high quality à video up to 4 K DCI (4096 x 2160 at 60 Hz), presenting sharp images.

To meet the needs of easy expansion and flexibility, è can control up to 512 computers with a three-level cascade for a single console. In addition, it supports multiple-screen function by stacking up to eight unitsà to compare and analyze information on 8 monitors at most, which substantially simplifies the work environment.

With two patented ATEN – Video DynaSync™ and EDID Expert™ technologies, è can optimize screen resolution, accelerate switching between ports and switch on smoothly, eliminating display problems at startup.

In addition, è equipped with an integrated 3.1 Gen 1 USB hub that offers speed à data transfer up to 5 Gbps, allowing users to accelerate operations and share USB devices instantly. To offer user-friendly port selection methods, è equipped with buttons, shortcut keys, RS- 232 and OSD commands with a newly designed user interface for intuitive and effortless operations.

To eliminate any security-related problems, è a two-level authorisation password is available that improves security protection for computer access and control. By consolidating these advantageous functionalityà, IDATA CS- 18208 è ideal for managing the server room or computer room applied in sectors with high quality image requirementsà and multitasking, such as companies, governments, production, telecommunications, finance, media, content provider, video surveillance, etc.



Features

• A USB console controls up to 8 computers with HDMI interface and two additional 3.1 USB peripheral devices


• Connectable to three levels: check up to 512 computer


• Multi-display function: stacks up to eight units; IDATA CS- 18208 and displays video from up to 8 monitor (double display/triple display/quad display/multiple display)


• DynaSync ™ — Videos - an exclusive ATEN technology that eliminates visualization problems at startup and optimizes resolution when switching from source to source


• EDID Expert™: select the optimal modeà EDID for smooth ignition and maximum quality display;


• Superior video quality: up to 4 K DCI (4096 x 2160 at 60 Hz)


• Hub USB 3.1 Gen 1 to 2 built-in ports with speed ` SuperSpeed 5 Gbps data transfer


• Audio enabled: the full bass response offers a rich experience for stereo audio to 2.1 channels


• Supports HD audio (HD audio via the HDMI channel cannot be switched independently)


• Computer selection via buttons, hotkeys, OSD and RS- 232 commands


• Independent KVM switching and USB 3 peripheral focus (Independent è switching supported only in mouse emulation mode à)


• Two-level password permission (administrator/user) for increased security protection


• Modelità transmission: operations can be performed simultaneously on all selected computers, such as software installation and update, system-level shutdown, etc.


• Modelità automatic scanning for monitoring all computers


• The emulation/bypass function of the console mouse port supports most multifunction mouse and mouse drivers


• Multilingual keyboard map: supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Simplified Chinese


• Mac/Sun keyboard support and emulation (PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards only work with their own computers)


• Supports hot insertion


• HDMI conform; HDCP 2.2 compliant


• Multiplatform support: Windows, Linux, Mac and Sun


• Updated Firmware


• Supports multimedia, keyboards and wireless mouse



Technical specifications

• Computer connections: 8 direct and maximum 512 in cascade


• Port Selection: OSD, shortcut keys, buttons, RS- 232 commands


• Compatibilityà: Windows / Mac / Linux


• LED Indicators: Online/Selected, Power Supply, USB Connection


• Keyboard emulation / mouse: USB


• Maximum video resolution: 4096 x 2160 Pixel 


• Scan interval: 0 - 255 seconds (default: 5 sec)


• DC input voltage: 12 V


• Consumption: DC 12 V: 9.77 W: 88 BTU


• Video bandwidth: 60 Hz


• HD type: 4 K Ultra HD


• Metal shell


• Color: black



Connections

• Console doors: 1 x HDMI female (black) / 2 x USB-A female / 2 x 3.5 mm female audio jack (green; 1 front and 1 back)

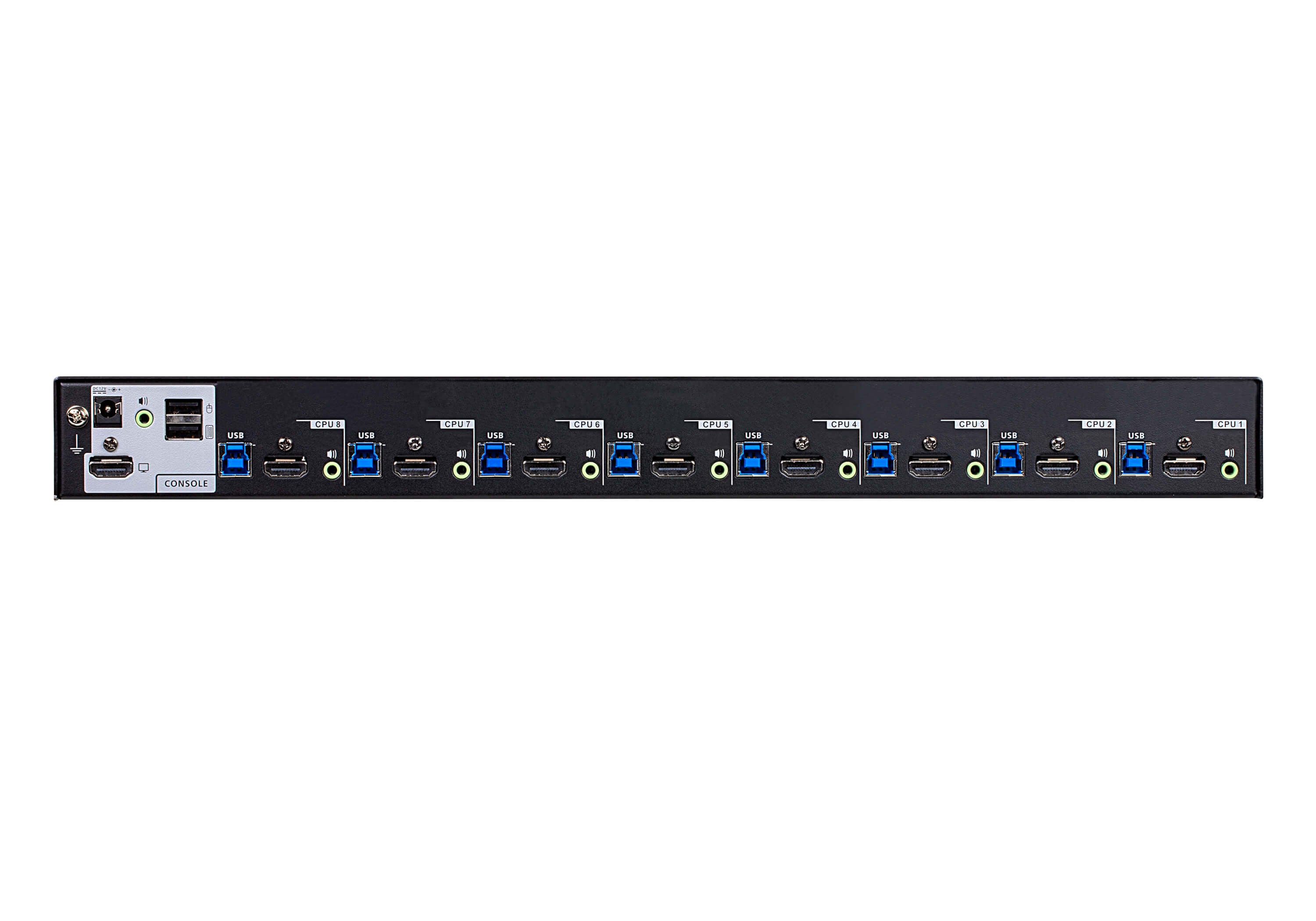

• KVM Doors: 8 x HDMI female / 8 x USB-B 3.1 Gen 1 Type female (blue) / 8 x 3.5 mm female audio jack (green)


• Firmware Update: 1 x RJ- 11 female (black)


• Power supply 1 x Jack DC

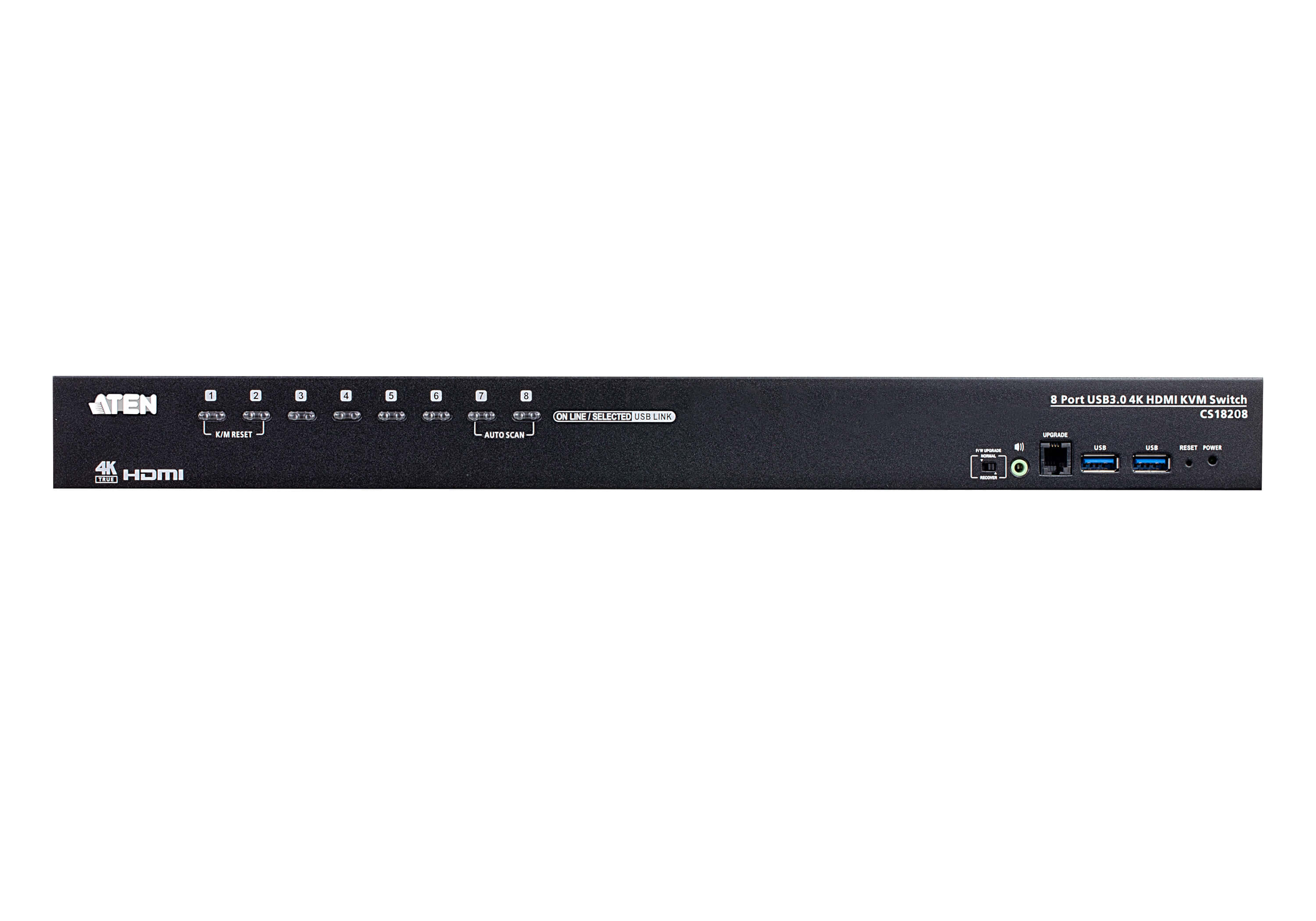

• USB Hub: 2 x USB-A 3.1 Gen 1 Type female (blue; 2 front)



Switch

• Select port: 8 x buttons


• Restore: 1 x semi-collected button


• Firmware update recovery: 1 x slide switch



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 – 80 % RH, without condensation



Dimensions

• Height 44 mm


• Width 432,4 mm


• Depthà 214,3 mm



Package contents

• 1 x Switch IDATA CS- 18208 KVM HDMI 4 K USB 3.0 8 ports with rack installation kit


• 2 x HDMI cables


• 2 x USB cables 3.0


• 2 x Audio cables


• 1 x Firmware update cable


• 1 x Set of feet (4 pcs.)


• 1 x Power adapter


• 1 x User instructions
