Switch KVM LCD 17 " 8 Porte Cat 5 Multi-Interface - Aten IDATA KL- 1508 AMA

IDATA KL- 1508 AMA has two built-in retractable modules: the LCD monitor module from 17 and the keyboard/touchpad module. It is a unità control that allows IT administrators to access and control different computers from the LCD console and an additional KVM PS/ 2 or USB console.

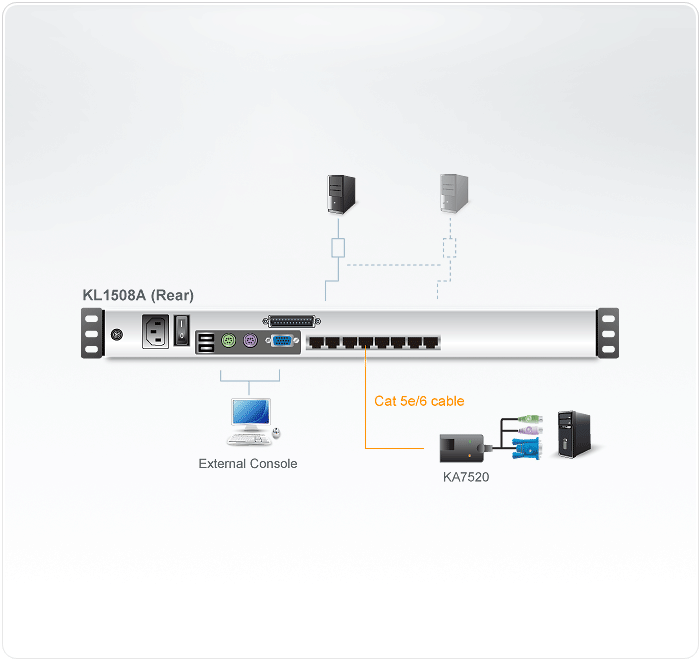

For greater reliability and efficiency, RJ- 45 connectors and Cat 5 and/ 6 cables are used for connection to computers. Using KVM adapter cables for final connection, IDATA KL- 1508 AMA allows various combinations of PC, Mac, Sun computers and serial devices to coexist in installation.

These switches have been designed with unique and powerful functions that allow administrators to manage all server and data center devices easily and conveniently.



For example, the Advanced Adapter ID features store adapter cable configuration information such as ID, port name, SO, keyboard language, etc., and allows administrators to reassign servers to different ports without having to reconfigure adapters. Other advanced functionalityà includes the best qualityà video, extending server distance to 50 meters to a resolution of 1280 x 1024.

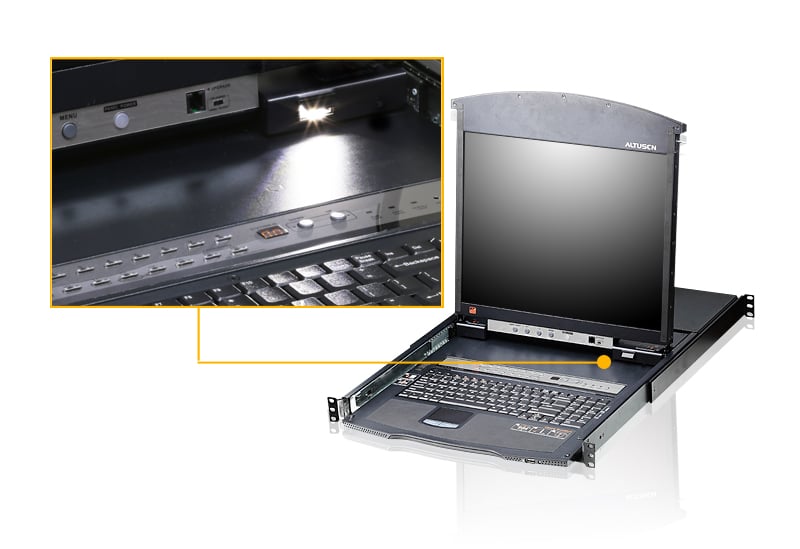

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allow better visibility; in case of poor lighting


• Space saved thanks to RJ- 45 connectors and Cat 5 and/ 6 cables


• The Dual Rail housing è slightly smaller than the 1 U with space on the upper and lower sides to allow freedom à movement in the 1 U rack space


• Configuration of user access rights to ports based on single port



Features

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• Integrated KVM console with 17 inch LCD monitor with LED backlight in a Dual Rail case


• A single console controls up to 8 computer


• Space saved thanks to RJ- 45 connectors and Cat 5 and/ 6 cables


• KVM* adapter cables are designed for automatic conversion to allow flexible interface combinations (PS/ 2, USB, Sun and serial) and control computers of all types


• The OSD tree structure simplifies computer search and management


• Door and station selectors with LED indicators in an easily accessible position for rapid switching of computers


• The Dual Rail housing è slightly smaller than the 1 U with space on the upper and lower sides to allow freedom à movement in the 1 U rack space


• Extra console port: to manage the computers of the LCD KVM switch from an external console (monitor, USB keyboard or PS/ 2 and USB mouse or PS/ 2)


• Additional hot-connected USB mouse port on the front panel that supports a keyboard and mouse HID device


• Dual Rail: the LCD monitor runs independently of keyboard/touchpad


• The LCD module rotates up to 120 degrees for a more ù comfortable viewing angle


• Console lock: allows you to retract and lock the console drawer when not used


• Dedicated shortcut keys and OSD recall keys reduce the number of pressed keys and allow you to quickly access functions


• Waterfall connection up to 31 additional KVM switches for a total of 256 computers


• Modelità automatic switching for continuous monitoring of the computers selected by the user


• Multiplatform support: PC, Mac, Sun and serial


• Qualityà higher video: supports video resolutions up to 1280 x 1024 @ 75 Hz to 50 meters


• Configuration of user access rights to ports based on single port


• Three Port Selection methods: Manual (through front panel buttons), Quick-Select Key and Multilingual On Screen Display (OSD)


• Multiple user accounts: Support up to 10 user account and 1 administrator


• Two-level password security: supports an administrator profile and ten user profiles. Strong password protection prevents unauthorized installation access


• The LCD Screen On button saves energy and lengthens screen life


• The transmission mode à sends commands from the console to all computers, allowing you to run simultaneously on all computers operations such as software installation, updates, shutdowns etc.


• Adapter ID


• Updated Firmware


• Keyboard language support: Supported keyboard languages: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



Technical specifications

• Computer connections: 8 direct and maximum 256 (via daisy connection) 


• Select Port: OSD, Quick-Select Key, Buttons

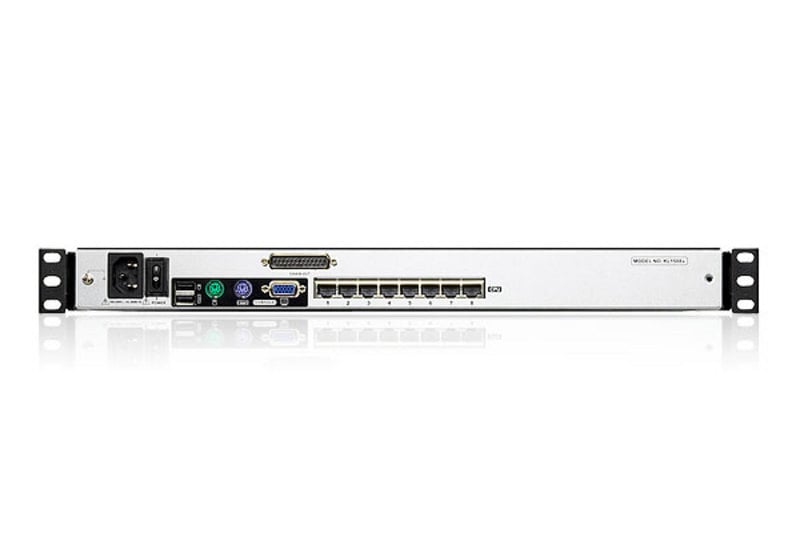

Connectors

• 1 console holder HDB- 15 female (blue)


• 2 USB type A female console ports


• 1 console holder Mini-DIN 6 pin female (purple)


• 1 porta console Mini-DIN 6 pin female (green) 


• 8 doors KVM RJ- 45 female


• 1 connecting port DB- 25 male


• 1 female RJ- 11 port for firmware update


• 1 tripolar AC power socket &


• 1 type A female USB port for external mouse



Switches

• 8 push buttons for Select Port


• 2 push buttons for station selection  


• 1 semi-collected push button to restore   


• 1 slider switch for firmware &emsp update;


• 1 power balance switch  


• 4 push buttons to adjust LCD 


• 1 LCD &emsp power push button;



LED

• 8 LED (green) for Online 


• 8 LED (orange) for Selected


• 1 LED (blue) for power supply  


• 1 x 2 digits, 7 LED segments (orange) for station ID 


• 1 LED (green) for block numbers


• 1 LED (green) for uppercase block


• 1 LED (green) for sliding block


• 1 LED (green) for uppercase block


• 1 LED (green) for sliding block


• 1 LED (orange) for LCD &emsp power supply;


• Keyboard emulation / Mouse: PS/ 2 , USB, Serial



Video

• Video 1600 x 1200 at 60 Hz (40 m)


• Video 1280 x 1024 at 75 Hz (50 m) 


• Video input resolution: 1920 x 1200 at 60 Hz 


• Secondary console: 1920 x 1200 at 60 Hz 



Panel Specifications

• LCD module: LCD TFT from 17


• Resolution: 1280 x 1024 at 75 Hz


• Response time: 5 ms


• Viewing angle: 170 ° (O), 160 ° (V)


• Pixel size: 0,264 mm x 0,264 mm


• Supported colors: 16,7 millions of colors


• Contrast ratio: 1000:1


• Brightness: 250 cd/m²



• Scan interval: 1 – 255 seconds


• Input power load: 100 - 240 V AC; 50 - 60 Hz; 1 A


• Consumption: AC 110 V: 16.7 W: 89 BTU / AC 220 V: 18.9 W: 99 BTU



Environmental features

• Operating temperature: 0 to 40 °C


• Storage temperature: - 20 to 60 °C


• Humidità: 0 – 80 % relative humidity without condensation



Package contents

• 1 x switch KVM Cat 5 Dual Rail high densityà 8 ports with LCD screen and standard rack mounting kit


• 1 x cable for firmware upgrade


• 1 x power cable


• 2 x L bracket


• 1 x user guide
