Switch KVM LCD to Single Binary PS 2 -USB VGA 16 ports 19 ' - Aten IDATA CL 5716 N

The KVM IDATA CL 5716 N Slideway ™ switch with LCD screen è a control unità that allows you to access more ù computers from a single PS/ 2 or USB console (monitor, keyboard and mouse). A single IDATA CL 5716 N can ` control up to 16 computer. You can connect other 31 KVM switch cascaded so as to control 512 computer from a single KVM console.

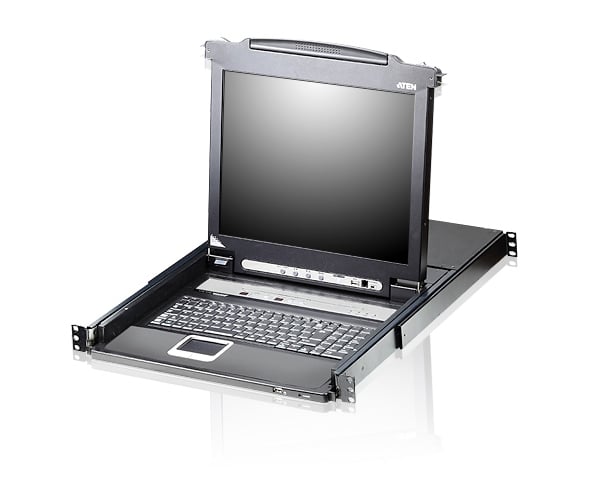

IDATA CL 5716 N saves space thanks to the optimized approach to KVM technology, integrating an 19 inch LCD screen, with LED keyboard and touchpad backlighting in a single sliding 1 U housing.



Note: Optional rack mounting kits are available. For more information, see Compatible accessories below or the connection.



Features

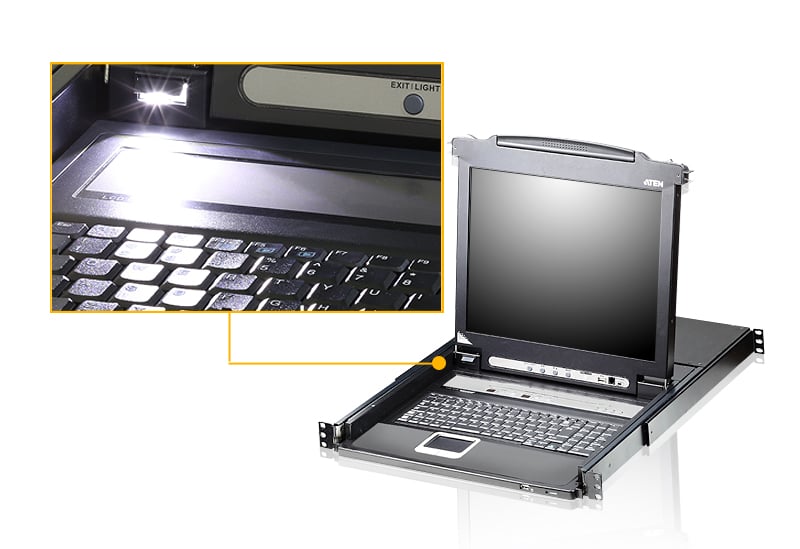

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• Integrated KVM console with 19-inch LCD monitors with LED backlight in a Slideway&trade case;


• Space-saving technology: up to two consoles (one bus) control up to 16 computer

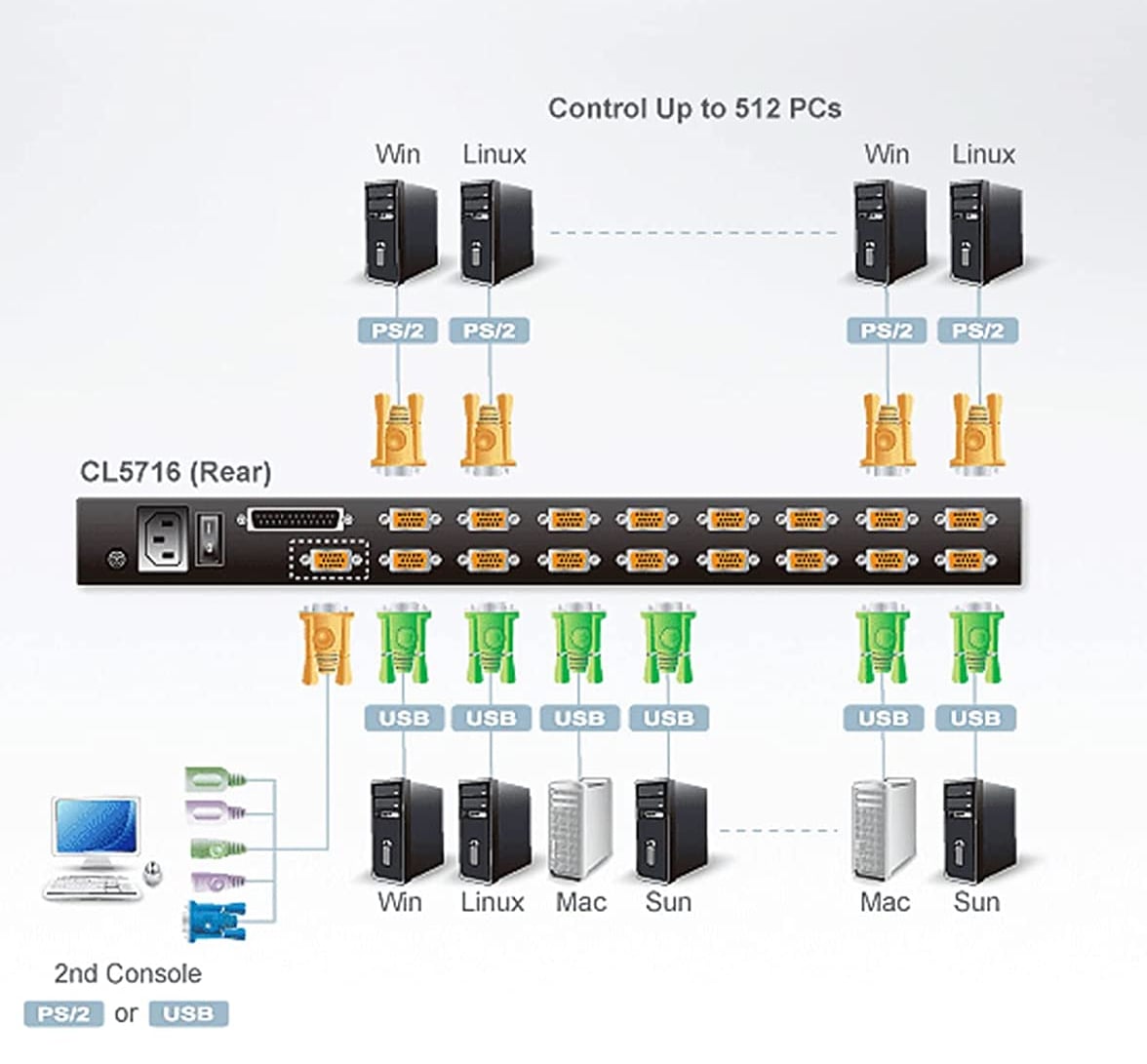

• Waterfall connection up to 31 unità additional to control 512 computer from one console (with KVM switches compatible: ACS 1208 A, ACS 1216 A, CS 1708 A,CS 1716 A)


• Double interface: supports computers and consoles with PS/ 2 or USB keyboards and mouse


• The USB port of the LCD module allows each computer to access USB devices*


• The LCD module rotates up to 115 degrees for a more ù comfortable viewing angle


• Multiplatform support: Windows, Linux, Mac and Sun


• Supports USB media keyboards for Windows, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Mouse and keyboard emulation (PS/ 2 and USB) for convenient switching and simultaneous booting of different computers even when checking the è console elsewhere


• Additional hot-connected USB mouse port on the front panel (also functions as USB peripheral port)


• Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz


• Does not require software: convenient computer selection via front panel buttons, multilingual OSD and shortcut keys


• Automatic detection of the position of the unit à in cascade installations; no manual setting of the dip switch is required; the LED on the front panel indicates the position of the unità


• Automatic reconfiguration of port names when changing the unit sequence;


• Two-level password security: only authorized users can view and control computers


• Supports one admin account and four users each with their own profile


• Modelità automatic switching for continuous monitoring of the computers selected by the user


• Transmission support: Keyboard commands can be transmitted to all the computers of the installation


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Simultaneous firmware update for all KVM switches connected to cascade


• Kit for mounting on optional racks included among the installation options


• Keyboard language support: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



* USB devices only work with USB KVM cable sets. It does not work with PS/ 2 cable sets.



Technical specifications

• Direct connection: 16


• Maximum: 512 (by waterfall connection)


• Power supply: 100 - 240 V AC, 50 / 60 Hz, 1 A


• Consumption:



110 V CA, 26,9 W, 139 BTU

220 V CA, 27,9 W, 144 BTU



Connectors:

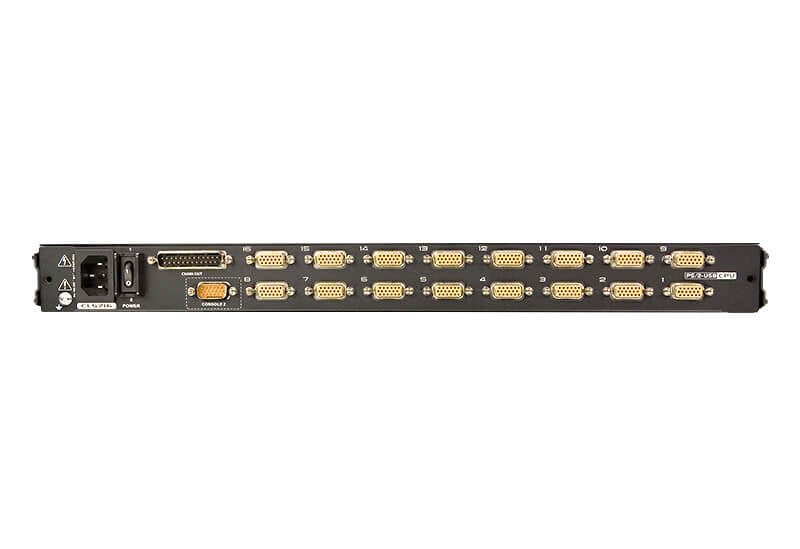

• KVM doors: 16 x female SPHD (Yellow)


• Connecting doors: 1 x DB- 25 male


• Firmware update: 1 x RJ- 11 female


• Power supply: 1 x IEC 60320 /C 14


• External console holder: 1 x SPHD male (Yellow)


• External mouse holder: 1 x USB Type A female (front)


• USB port: 1 x USB type A female



Switches

• Select Port: 2 x Push Buttons


• Station selection: 2 x Push buttons


• Restore: 1 x semi-collected push button


• Firmware update: 1 x sliding switch


• Power supply: 1 x Switch rocker


• LCD adjustment: 4 x Push button


• LCD control: 4 x Push buttons


• On/Off LCD: 1 x LED button


• LCD power supply: 1 x LED push button



LED

• Online: 16 (Orange)


• Door ID: 2 x 7 segment LED display (Orange)


• Station ID: 2 x 7 segment LED display (Orange)


• Power supply: 1 (dark green)


• Block:



- 1 x Block Num (Green)

- 1 x Shift Lock (Green)

- 1 x Bloc Scorr (Green)

• LED lighting light: 1 x LED lighting indicator



Panel Specifications

• LCD module: LCD TFT from 19


• Resolution: 1280 x 1024 at 75 Hz


• Response time: 5 ms


• Viewing angle: 170 ° (O), 160 ° (V)


• Pixel size: 0,294 mm x 0,294 mm


• Supported colors: 16,77 millions of colors


• Contrast ratio: 1000:1


• Brightness: 250 cd/m²



Video

• Video input resolution:



up to 1920 x 1200 at 60 Hz;

1280 x 1024 at 75 Hz, DDC 2 B

• Scan interval: 1 - 255 seconds



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 85 % relative humidity without condensation



Dimensions

• Width: 48,00 cm


• Depthà: 68,92 cm


• Height: 4,40 cm



Package contents

• 1 x CL 5716 KVM switch with LCD screen and standard rack mounting kit


• 2 x 2 L- 5202 U USB KVM cable (1,8 m)


• 1 x LIN 5 - 27 X 6 -U 21 G connection cable to USB-PS/ 2 5 console in 1


• 1 x LIN 5 - 04 A 2 -J 11 G cable for firmware upgrade


• 1 x LIN 2 - 418 K-E 12 G power cord( AC power models)


• 1x User guide
