Switch USB-PS KVM 2 VGA 8 Doors with LCD 19 " and USB Port - Aten IDATA CL- 5708 N

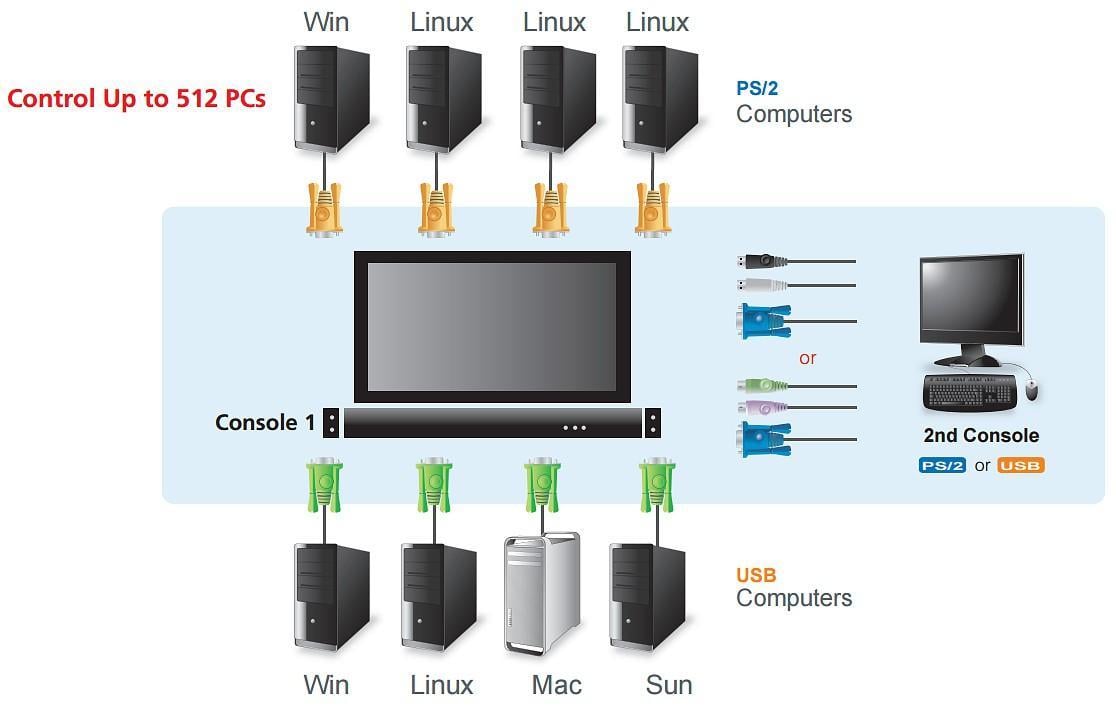

The KVM IDATA CL- 5708 N Slideway switch with LCD screen è a control unità that allows you to access more ù computers from a single PS/ 2 or USB console (monitor, keyboard and mouse). A single CL 5708 can ` control up to 8 computer. You can connect other 31 KVM switch cascaded so as to control 256 computer from a single KVM console.

The CL 5708 saves space thanks to the optimized approach to KVM technology, integrating an 19 inch LCD screen, with LED keyboard and touchpad backlighting in a single sliding 1 U housing.



Features

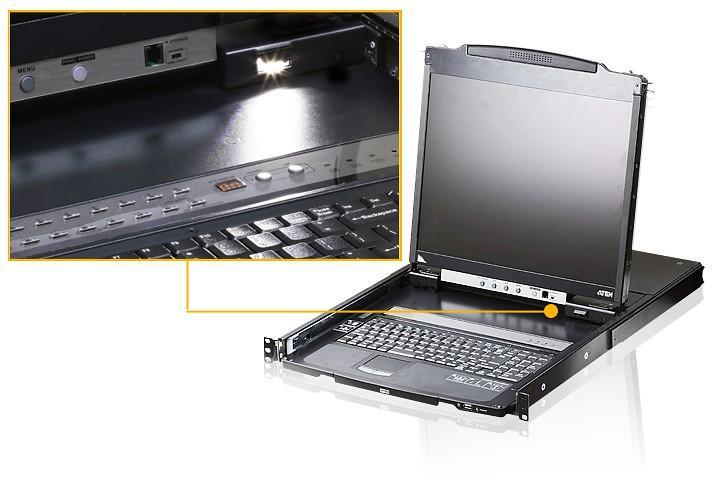

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM console integrated with 19 LCD monitor with LED backlight in a Slideway case


• Available with or without fingerprint reader**


• Space-saving technology: up to two consoles (one bus) control up to 8 computer


• Waterfall connection up to 31 unità additional to control 256 computer from one console (with KVM switches compatible: ACS 1208 A, ACS 1216 A, CS 1708 A,CS 1716 A)


• Double interface: supports computers and consoles with PS/ 2 or USB keyboards and mouse


• The USB port of the LCD module allows each computer to access USB devices*


• The LCD module rotates up to 115 degrees for a more ù comfortable viewing angle


• Multiplatform support: Windows, Linux, Mac and Sun


• Supports USB media keyboards for PC, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Mouse and keyboard emulation (PS/ 2 and USB) for convenient switching and simultaneous booting of different computers even when checking the è console elsewhere


• Supports external USB mouse


• Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz


• Does not require software: convenient computer selection via front panel buttons, multilingual OSD and shortcut keys


• Automatic detection of the position of the unit à in cascade installations; no manual setting of the dip switch is required; the LED on the front panel indicates the position of the unità


• Automatic reconfiguration of port names when changing the unit sequence;


• Two-level password security: only authorized users can view and control computers


• Supports one admin account and four users each with their own profile


• Modelità automatic switching for continuous monitoring of the computers selected by the user


• Transmission support: Keyboard commands can be transmitted to all the computers of the installation


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Simultaneous firmware update for all KVM switches connected to cascade


• Keyboard language support: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



* USB devices only work with USB KVM cable sets. It does not work with PS/ 2 cable sets.



**The fingerprint reader can & grave; be used as an alternative authentication medium for the switch. You can analyze from 1 to 4 fingers for each user and administrator, using any of those stored for access.



Technical specifications

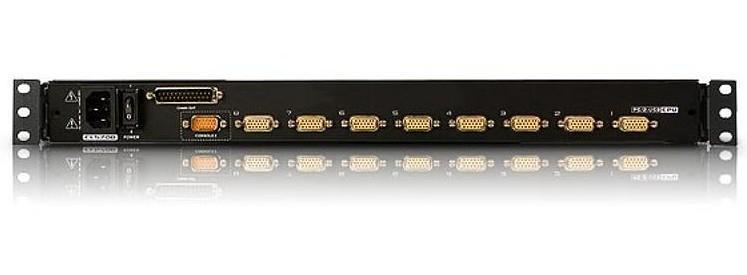

• Computer connections: direct 8 ; max 256 (by cascade connection)


• Select OSD port, shortcut key, button


• External console holder: 1 SPHD- 18 male (yellow)


• External mouse port: 1 USB type A female (white)


• KVM doors: 8 SPHD- 15 / 17 female (yellow)


• Waterfall doors: 1 DB- 25 male (black)


• FW update: 1 RJ- 11 female


• Power supply: 1 AC socket 3 poles


• USB port: 1 USB type A female (white)


• Keyboard/Mouse emulation: PS 2 and USB


• Video: 1280 x 1024 @ 75 Hz; DDC 2 B


• Switching interval (OSD selection): 1 - 255 sec.


• Rated input from 100 to 240 V AC; 50 / 60 Hz; 1 A


• Power consumption: 120 V, 15.2 W/ 230 V, 16 W



Switches

• Restore: 1 button slightly recessed


• Power supply: 1 rocker


• Firmware update: 1 switch


• LCD adjustment: 4 buttons


• LCD switching on/off: 1 LED button (orange)


• Port Selection: 2 buttons


• Station selection: 2 buttons



LED

• Online: 8 (orange)


• Door ID: 2 LED 7 segments (yellow)


• Station ID: 2 LED 7 segments (yellow)


• Power supply: 1 (dark green)


• Bloc: 



- Bloc Num  1 (green)

- Bloc Maiuscole & 1 (green)

- Bloc Scorr  1 (green)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Depthà: 68.92 cm


• Width: 48.00 cm


• Height: 4.40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x KVM switch with LCD CL 5708


• 1 x Standard rack mounting kit


• 1 x KVM PS/ 2 2 L- 5202 P cable


• 1 x USB KVM cable 2 L- 5202 U


• 1 x Connecting cable to USB-PS 2 5 -in- 1 LIN 5 - 27 X 6 -U 21 G


• 1 x LIN 5 firmware update cable - 04 A 2 -J 11 G


• 1 x Power cable ( AC power models) LIN 2 - 418 K-E 12 G


• 1x User guide
