Switch KVM LCD Widescreen 16 ports PS 2 -USB VGA single track - Aten IDATA CL- 3116 NX

ATEN's KVM LCD CL 3116 switch offers a simplified approach and saves space to the KVM switch technology by integrating a keyboard, an LCD monitor with LED backlight from 18,5, and a touchpad in a sliding housing mounted on 1 U rack. The deep à design maximizes the use of space to allow installation of rack mount devices in small spaces. In addition, the exclusive LED lighting offers users an adequate visibility when working under reduced lighting conditions.



The CL 3116 can & grave; control up to 16 computer; when other 16 switches are cascaded KVM, a single KVM LCD CL 3116 switch can ` control up to 256 computer. For increased operational efficiency, the CL 3116 offers the mode à Transmission that allows the console to transmit commands to all computers to perform operations simultaneously. In addition, the mode à Automatic scan meets all requests for continuous monitoring of a specific computer group creating a reliable working environment for users.



To improve information security, CL 3116 offers two-level password security that prevents unauthorized users from viewing and controlling computers. For more convenienceà, CL 3116 has an additional hot-connected USB mouse port that only supports a keyboard and mouse HID device.



As a feature-rich KVM LCD switch, the CL 3116 aims not only to achieve but also to exceed the requirements for optimization of space use, qualityà superior video, adaptive and versatile implementationà operational, as well as being ideal for control rooms with limited space in any sector.



Optimization of space

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM LCD console integrated with 18,5 widescreen LCD monitor with LED backlight in a single-track housing with up and down space for smooth operation in a 1 U high rack system.


• Depth à reduced design that allows you to work with rack mounting equipment in small spaces


• Console lock: allows the console drawer to remain firmly locked in position when not in use



Reliability and versatility; operational

• Superior video quality – up to 1366 x 768 at 60 Hz; DDC 2 B


• Waterfall connection up to 2 levels: CL 3116 controls up to 256 computer from a single console (with KVM switch compatible: CS 1308 /CS 1316)


• Double interface: supports computers with PS/ 2 or USB keyboards and mouse


• Automatic detection of the PS/ 2 and USB interface


• Keyboard and mouse emulation (PS/ 2 and USB) to exchange and at the same time start more ù computers even when the console is located elsewhere


• Computer choice via push buttons, shortcut keys and multilingual OSD


• Modelità transmission: allows you to send commands from the console to all computers to run operations simultaneously


• Two-level password security: only authorized users can view and control computers


• Modelità Automatic scan: allows continuous monitoring of the computers selected by the user


• Supported keyboard languages: English (GB), English (USA), German (GER), German (SWITZERLAND), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese


• Additional hot-connected USB mouse port on the front panel that supports a keyboard and mouse HID device



Flexible installation

• Mounting kit on standard rack included


• rack mounting kit for optional simplified installation available*


• No software needed


• Updated Firmware


• Supports hot link



Computer Links

• Direct: 16


• Maximum: 256 (via cascade)



Connectors

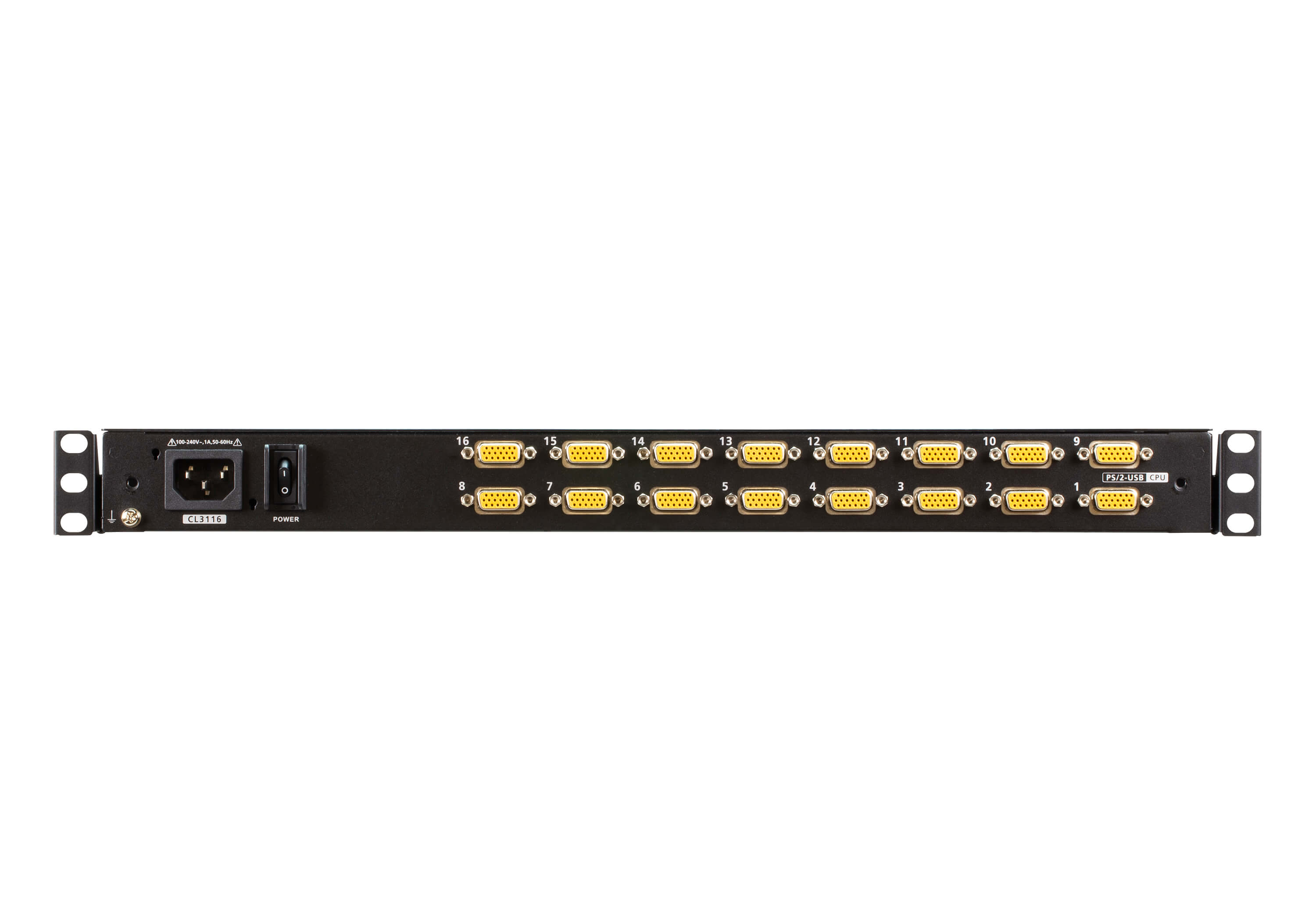

• KVM doors: 16 x SPHD- 18 female (yellow)


• USB port: 1 x USB type A female


• Firmware update: 1 x Female 3,5 mm audio connector (black)


• Power supply: 1 x Tripolar AC sockets



Switches

• Restore: 1 x semi-collected push button


• Power supply: 1 x Balancer


• Firmware update: 1 x Scroll


• LCD control: 4 x Push button


• On/Off LCD: 1 x Push button


• Doors: 16 x Push button



LED

• Online: 16 (orange)


• Selected: 16 (green)


• Power supply: 



1 x KVM console (dark green)

1 x LCD (orange)

• Block:



1 x Block numbers (green)

1 x Case lock (green)

1 x Scrolling block (green)



Panel Specifications

• LCD module: LCD TFT from 18,5


• Resolution: 1366 x 768 at 60 Hz


• Response time: 5 ms


• Viewing angle: 170 ° (O), 160 ° (V)


• Pixel size: 0,3 mm x 0,3 mm


• Supported colors: 16,7 millions of colors


• Contrast ratio: 1000 : 1


• Brightness: 250 cd/m²



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 48,06 cm


• Depthà: 63,17 cm


• Height: 4,28 cm



Package contents

• 1 x KVM LCD CL 3116 switch with standard rack mounting kit


• 2 x LIN 5 - 15 X 3 -U 12 G custom KVM cables (VGA, USB; 1,8 m/ 6 ft)


• 1 x LIN 5 - 004 A 2 -J 15 G Cable Firmware Update


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
