Switch KVM USB-PS 2 VGA 16 LCD doors 17 ' and USB port rack 19 ' - Aten IDATA CL- 5716 M

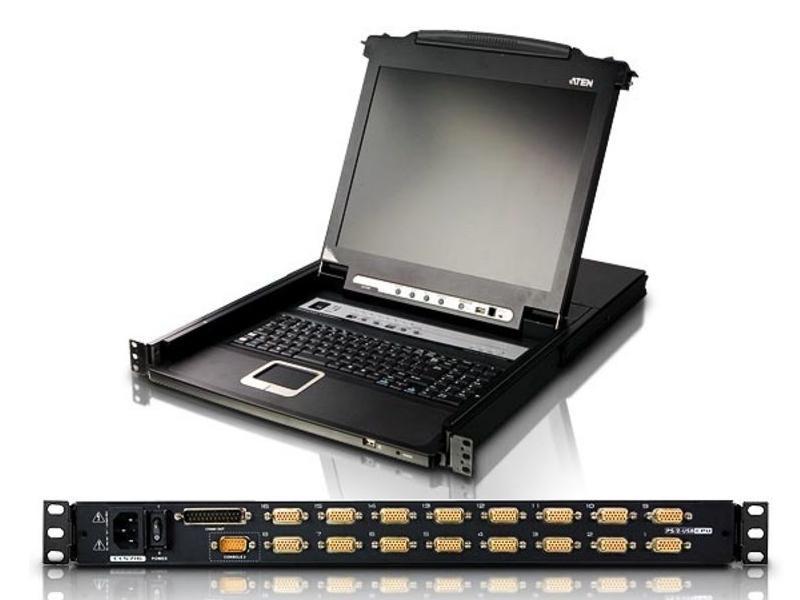

The KVM IDATA CL- 5716 M Slideway switch with LCD screen from 17 è a control unità that allows you to access more ù computers from a single PS/ 2 or USB console (monitor, keyboard and mouse). A single CL 5716 can ` control up to 16 computer. You can connect other 31 KVM switch cascaded so as to control 512 computer from a single KVM console.

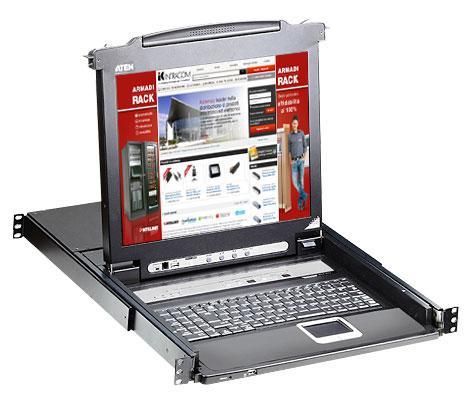

The CL 5716 saves space thanks to the optimized approach to KVM technology, integrating an LCD screen from 17 or 19 inches, with LED keyboard and touchpad backlighting in a single sliding 1 U housing.



Features

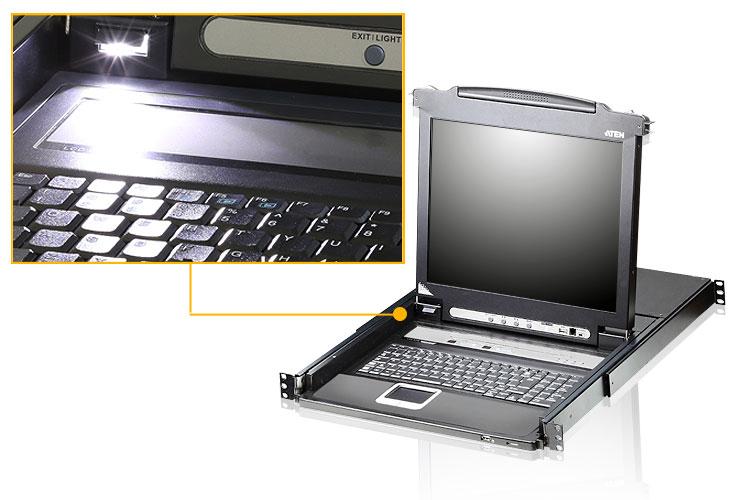

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• Integrated KVM console with 17 or 19 LCD monitors with LED backlight in a Slideway case


• Space-saving technology: up to two consoles (one bus) control up to 16 computer

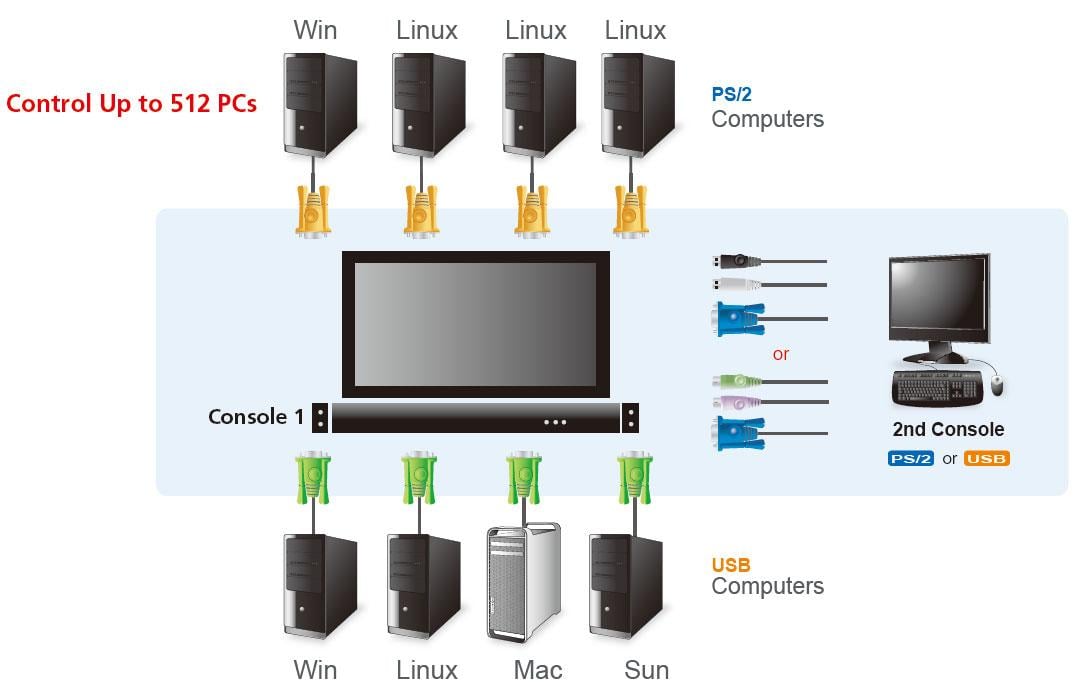

• Waterfall connection up to 31 unità additional to control 512 computer from one console (with KVM switches compatible: ACS 1208 A, ACS 1216 A, CS 1708 A,CS 1716 A)


• Double interface: supports computers and consoles with keyboards and mouse PS 2 or USB

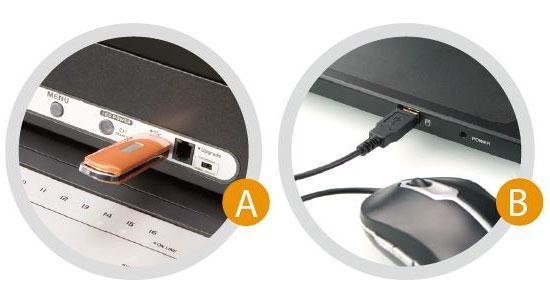

• The USB port of the LCD module allows each computer to access USB devices*


• The LCD module rotates up to 115 degrees for a more ù comfortable viewing angle


• Multiplatform support: Windows, Linux, Mac and Sun


• Supports USB media keyboards for PC, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Mouse and keyboard emulation (PS/ 2 and USB) for convenient switching and simultaneous booting of different computers even when checking the è console elsewhere


• Supports external USB mouse


• Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz


• Does not require software: convenient computer selection via front panel buttons, multilingual OSD and shortcut keys


• Automatic detection of the position of the unit à in cascade installations; no manual setting of the dip switch is required; the LED on the front panel indicates the position of the unità


• Automatic reconfiguration of port names when changing the unit sequence;


• Two-level password security: only authorized users can view and control computers


• Supports one admin account and four users each with their own profile


• Modelità automatic switching for continuous monitoring of the computers selected by the user


• Transmission support: Keyboard commands can be transmitted to all the computers of the installation


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Simultaneous firmware update for all KVM switches connected to cascade


• Keyboard language support: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



* USB devices only work with USB KVM cable sets. It does not work with PS/ 2 cable sets.



Technical specifications

• External console door:



- Monitor: 1 SPHD- 18 male (yellow)

- Mouse: 1 USB type A female (white)

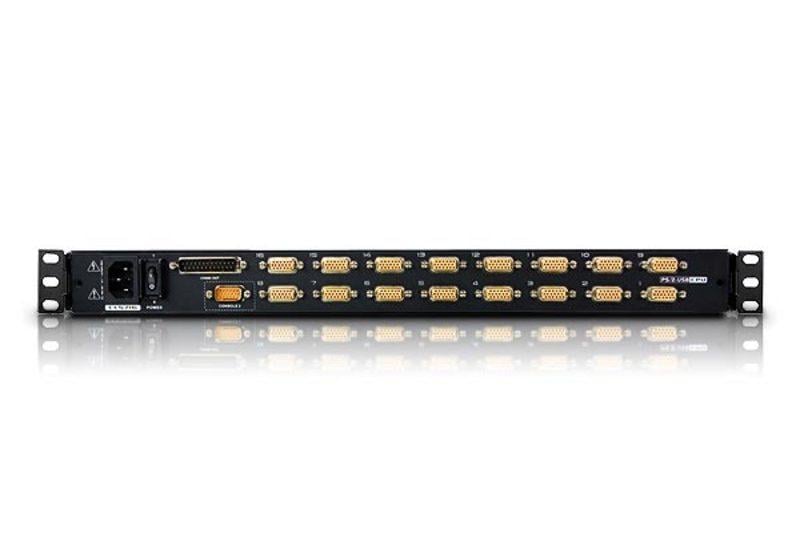

• KVM port: 16 SPHD- 15 / 17 female (yellow)


• Doors in cascade  1 DB- 25 male (black)


• FW  1 RJ- 11 female update


• Power supply 1 AC socket 3 poles


• Type A female USB port (white)


• LCD electric consumption: 120 V, 17 W/ 230 V, 18 W



Switches

• Restore: 1 button slightly recessed


• Power supply: 1 rocker


• Firmware update: 1 switch


• LCD adjustment: 4 buttons


• LCD switching on/off: 1 LED button (orange)


• Port Selection: 2 buttons


• Station selection: 2 buttons



LED

• Online: 16 (orange)


• Door ID: 2 LED 7 segments (yellow)


• Station ID: 2 LED 7 segments (yellow)


• Power supply: 1 (dark green)


• Block Num: 1 (green)


• Bloc Maiuscole: 1 (green)


• Bloc Scorr: 1 (green)



Environmental features

• Operating temperature: 0–40°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Depthà: 64.27 cm


• Width: 48.00 cm


• Height: 4.40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x KVM switch with LCD screen and standard rack assembly kit CL 5716


• 1 x KVM PS/ 2 cable (1,8 m) 2 L- 5202 P


• 1 x USB KVM cable (1,8 m) 2 L- 5202 U


• 1 x Connection cable to USB-PS/ 2 5 console in 1 LIN 5 - 27 X 6 -U 21 G


• 1 x LIN 5 firmware update cable - 04 A 2 -J 11 G


• 1 x Power cable( AC power models) LIN 2 - 418 K-E 12 G


• 1 x User guide
