USB-PS 2 VGA console with LCD 19 " by rack 19 " - Aten IDATA CL- 1000 N

€1,026.36
Tax included €841.30 excl. VAT

19 " KVM LCD console with LED backlight, keyboard and touchpad integrated in 1 U sliding housing. Video resolution up to 1280 x 1024 @ 75 Hz. Internal power supply.



Return policy



Delivery policy



Direct contact for info



Secure Payment

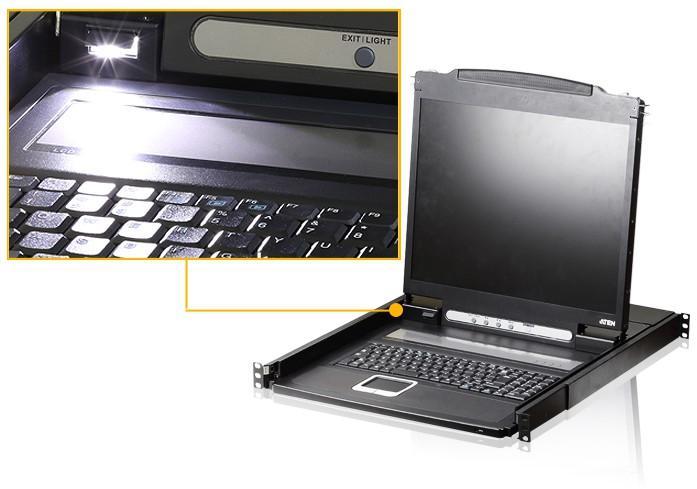

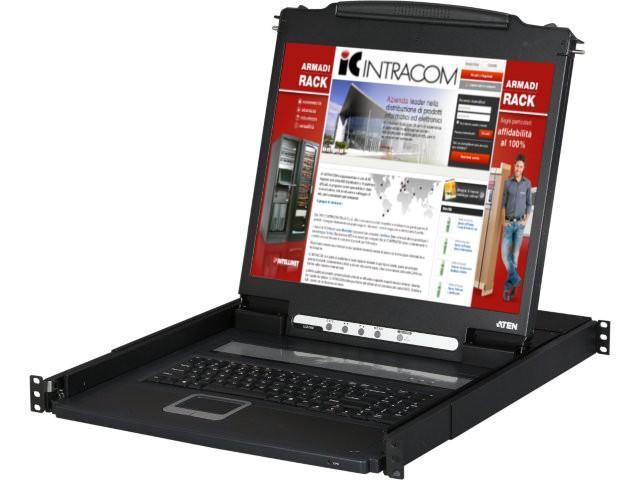

IDATA CL- 1000 N è an LCD KVM console composed of 19 inch LCD monitors with LED backlight, full keyboard and integrated touchpads, all in a 1 U rack mount case. The model offers convenient access from the rack to the già KVM switches installed at the location.



Features

  • Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting

  • KVM console integrated with an 19 inch LCD monitor with LED backlight in a sliding housing with space on the upper and lower sides for the freedomà movement in 1 U rack systems

  • The LCD module rotates up to 115 ° for a more comfortable viewing angle

  • Improved design: optional kit for installation by a single person

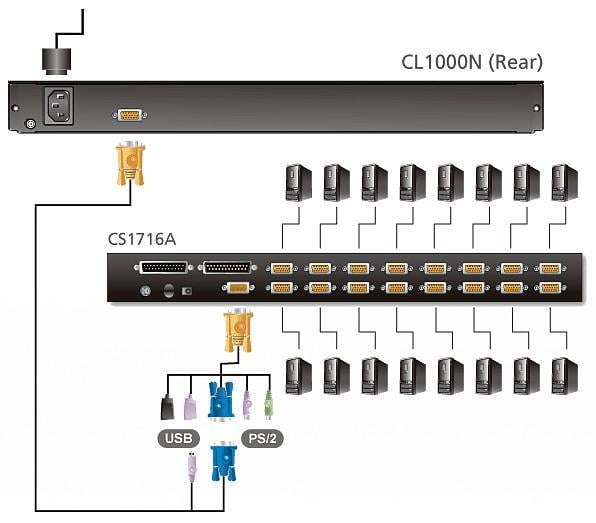

  • Compatible with most KVM switches

  • Internal power supply

  • High video resolution: up to 1280 x 1024 @ 75 Hz

  • Supports DDC, DDC 2 , DDC 2 B

  • DDC emulation of the LCD monitor: the video settings of each computer are automatically adjusted for optimal output on the monitor

  • Supported keyboard languages: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



Technical specifications

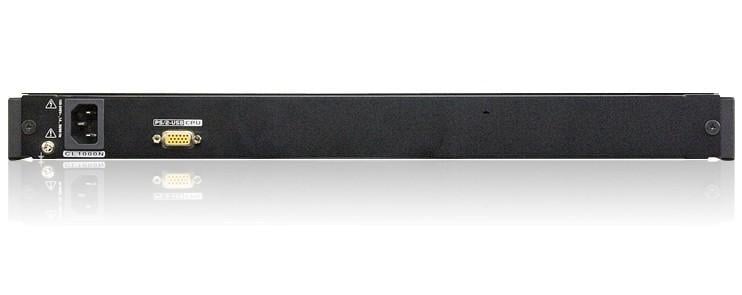

  • Connecting doors to the console: Keyboard/Video/Mouse 1 SPHD- 15 female (yellow); CPU 1 AC socket 3 poles

  • Switches:


- LCD monitor adjustment 4 buttons

- Power supply LCD 1 button

  • Emulation Keyboard/Mouse PS 2 , USB (with USB KVM cable 2 L- 52 xxUP)

  • Video 1280 x 1024 @ 75 Hz; DDC 2 B

  • Nominal input from 100 to 240 VCA; 50 / 60 Hz; 1 A

  • Electric consumption 120 V, 23 W; 230 V, 24 W



LED

  • Power supply 1 (green)

  • Bloc Num 1 (green)

  • Case lock 1 (green)

  • 1 (green)



Environmental features

  • Operating temperature from 0 to 50 + C

  • Storage temperature from - 20 to 60

  • Humidità relative from 0 to 80 %, without condensation



Dimensions

  • Width: 48.30 cm

  • Depthà: 58.52 cm

  • Height: 4.40 cm



Certifications

  • CE

  • RoHS

  • RAEE



Package contents

  • 1 x CL 1000 N with standard rack mounting kit

  • 1 x Custom KVM cable set (1.8 m) 2 L- 5202 UP

  • 1 x Power cable LIN 2 - 418 K-E 12 G

  • 1x User guide

  • Brand
  • Reference
    IDATA CL-1000N
  • EAN13
    4710469344275
