Switch KVM Cat 5 and/ 6 to 8 ports for 2 console, KH 2508 A - Aten IDATA KH- 2508 A

The IDATA KH- 2508 A è a control unit that allows IT administrators to access and control different computers from two KVM PS 2 or USB consoles. The operators of the two consoles can control independently and simultaneously up to 8 computer. By cascading additional 15 switch, è you can control 128 computers from the starting KVM consoles.

This è switch has been designed with unique and powerful features that allow administrators to manage all server and data center devices easily and conveniently.

For example, the Advanced ID adapter features store adapter cable configuration information such as IDs, port name, operating system, keyboard language etc., and allows administrators to reassign servers to different ports without having to reconfigure adapters. Other advanced functionality à includes the best qualityà video, extending server distance to 50 meters to a resolution of 1280 x 1024.



Features

• Two KVM consoles can control directly, independently and simultaneously up to 8 computers connected

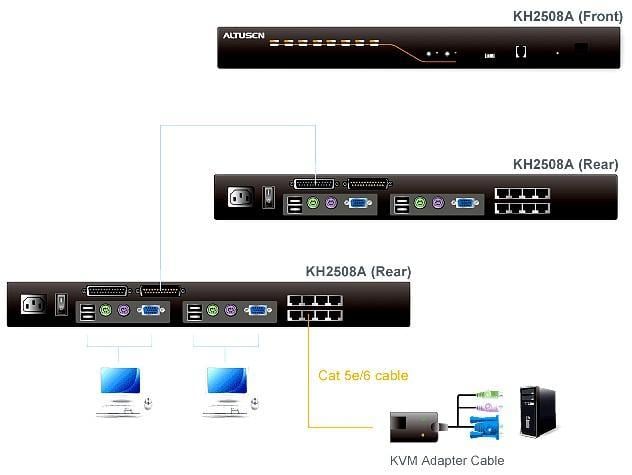

• By connecting to daisy additional 15 switch KH 2508 A, è you can control 128 computer from the starting KVM console.


• Console conversion: è can control any type of computer with any type of KVM console; mixed combinations (PS/ 2 + USB) are supported on both the KVM and the computer console side


• Superior video quality à supports video resolutions up to 1600 x 1200 @ 60 Hz to 40 meters and 1280 x 1024 @ 75 Hz to 50 meters *With KVM adapter cable KA series 7000


• Configuration of user access rights to ports based on single port


• The diverse operation of the ports allows flexible management of the computers with the modes; Occupy, Exclusive and Share

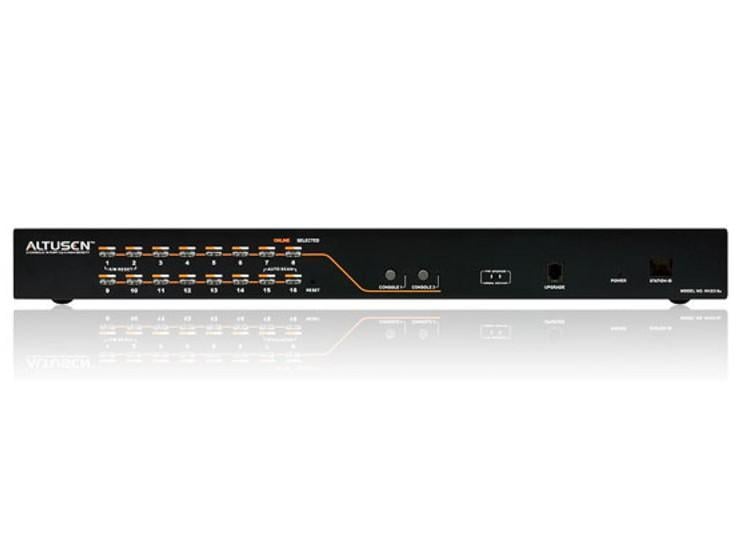

• Three Port Selection methods: Manual (through front panel buttons), Quick-Select Key and Multilingual On Screen Display (OSD)


• Multiplatform support: PC, Mac, Sun and serial


• Multiple user accounts: Support up to 10 user account and 1 administrator


• Two-level password security: supports an administrator profile and ten user profiles. Password protection prevents unauthorized access to installation


• Modelità automatic switching for continuous monitoring of computers selected by the user


• The transmission mode à sends commands from the console to all computers, allowing you to run simultaneously on all computers operations such as software installation, updates, shutdowns etc.


• Adapter ID


• Updated Firmware



Technical specifications

• Computer connections: direct 8 PC; 128 in cascade


• Port Selection: OSD (On Screen Display), shortcut keys, buttons

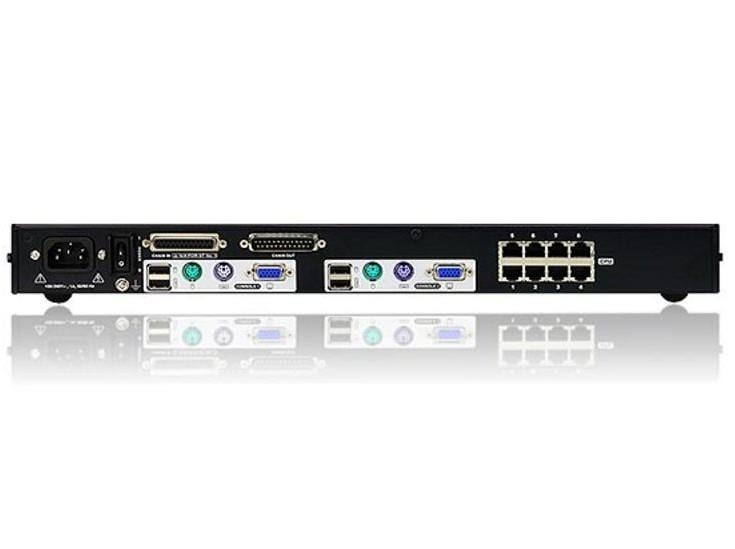

• Connecting doors to the console:



- Keyboard: 2 Mini-DIN to 6 pin female (purple)

- 2 USB type A female

- Video: 2 HDB- 15 female (blue)

- Mouse: 2 Mini-DIN a 6 pin female (green)

- 2 USB Type A female (white)

• Doors KVM  8 RJ- 45 female


• Waterfall doors:



- Input 1 DB- 25 female (black)

- output 1 DB- 25 male (black)

• F/W 1 female update holder RJ- 11


• Power supply: 1 AC socket 3 poles; 120 V/ 7.2 W; 230 V/ 8.6 W


• Power: 100 - 240 V AC; 50 / 60 Hz; 1 A



LED

• 8 line (green)


• 8 selection (orange)


• 2 console (orange)


• Power supply 1 (blue)


• ID Station 1 x 7 LED segments (orange)



Video Solutions

• 1600 x 1200 @ 60 Hz (40 m)


• 1280 x 1024 @ 75 Hz (50 m)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità 0 - 80 % relative humidity, without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.58 cm


• Height: 4.4 cm



Package contents

• 1 x 8 -Port Cat 5 E/ 6 KVM Switch


• 1 x Cable firmware update


• 1x Power cable


• 1 x Rack Mount Kit


• 1 x Set of 4 rubber feet


• 1 x Instructions for use
