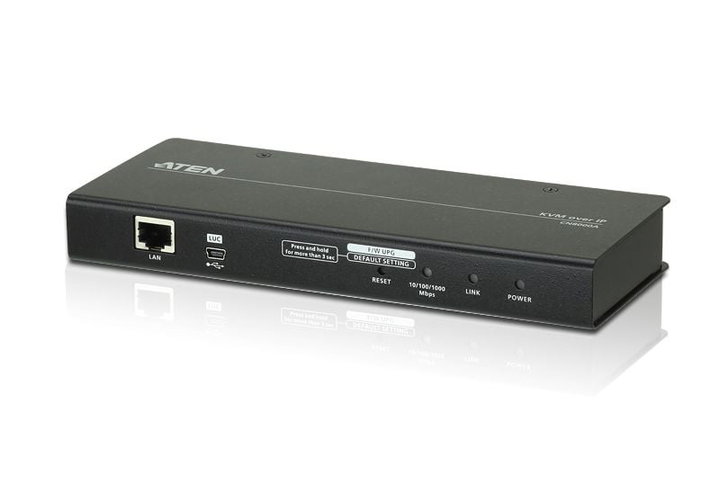

KVM switch with remote/local access over ip VGA - Aten IDATA CN- 8000 A

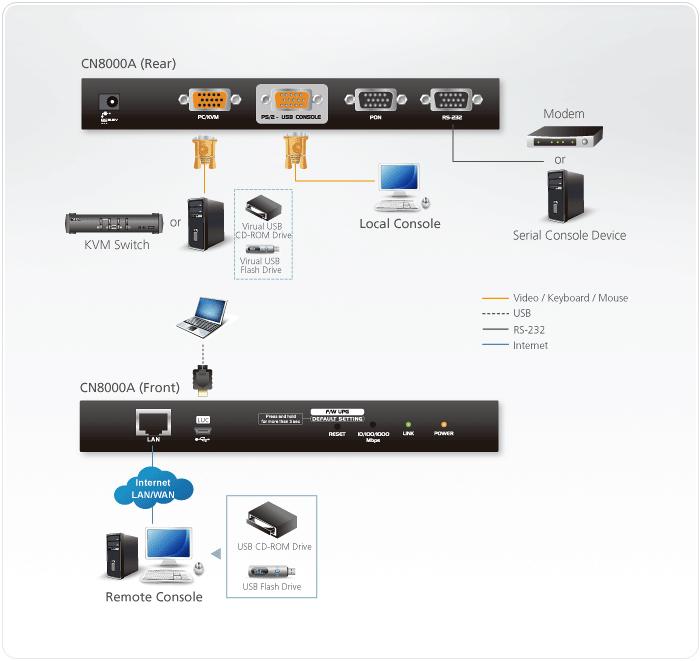

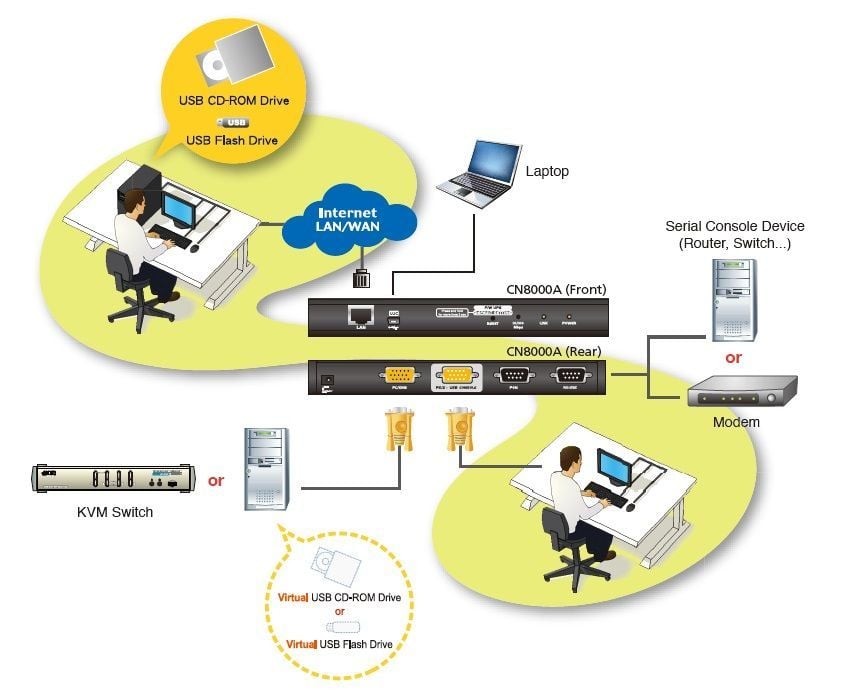

The KVM over IP with a single-port CN 8000 A provides access control via ...over-IP... for conventional KVM switches that do not have integrated functionalityà over-IP*. It allows system operators to monitor and access computers from remote locations using web browsers or application programs based on Windows and Java. CN 8000 A connects to the Intranet via LAN or WAN easily using a standard Cat 5 and/ 6 case, and connects to KVM switches or servers via a custom KVM cable.

The product uses standard TCP/IP protocols for communications, allows access to KVM servers or switches connected by any computer via Internet – either from computers located in the basement, other areas of the country or affiliates in other parts of the world.

CN 8000 A expands the previous models by offering a dedicated RS- 232 port for modem access or serial concole management, a PON port for connection to an ATEN PDU device and capacityà virtual average USB 2.0 .

A Windows Client Viewer and a Java Applet Viewer are available for browser access, while Windows Client AP and Java Client AP programs are available for access to the non-browser user interface. It allows IP connection and access from anywhere via the Internet. The inclusion of a Java-based client guarantees CN 8000 A to be an independent platform that can work with virtually all operating systems.

To meet advanced security requirements, the Virtual Media function of CN 8000 A allows mapping to a remote server of a Smart Card / CAC reader on the local user system. CN 8000 A offers a fast, reliable and cost-effective way to remotely access and manage installations of more ù computers over extensive distribution.



* Compatible KVM switches for cascade control include: CS 9134 , CS 9138 , CS 88 A , CS 1308 , CS 1316 , CS 1754 *, CS 1758 *, CS 1708 A , CS 1716 A , ACS 1208 A , ACS 1216 A , CS 228 *, CS 428 *, KH 0116 , KH 2508 , KH 2516 , KH 1508 and KH 1516 .Some of the functions of CN 8000 A may not be supported , in relation to functionality ` KVM cascade switch.





Features

Hardware

• Offers over-IP functionality for KVM switches that do not have integrated over-IP functionality


• Supports PS/ 2 , USB,connectivityà serial (RS- 232). Sun Legacy (13 W 3 , via CV converter 131 A not included)


• Local console with keyboard and mouse support PS/ 2 , USB


• Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT 100 serial devices


• Virtual media support


• High and deep video resolution; color up to 1920 x 1200 at 60 Hz and 24 bits for the local console; up to 1920 x 1200 at 60 Hz with depthà color at 24 bits for remote sessions, with improved speedà fps (photograms per second) for a more ù reactive video view.



Management

• USB Laptop Console (LUC), a dedicated USB port that connects directly to a laptop to make more ù easier console operations


• Simplified configuration via local console OSD


• Up to 64 user account, simultaneous shared control of up to 32 users


• Function terminates session, administrators can terminate running sessions


• Support for Windows-based event log and log server


• Critical system events sent via SMTP email, SNMP Trap and Syslog support


• Updateable remote firmware


• Serial console management, serial terminal access. Access to CN 8000 A via an integrated serial viewer or third-party software



(e.g. Putty) for Telnet and SSH sessions

• Modelità PPP (modem), support called in/call/outgoing mode for off-band and lowband operations


• Port sharing mode that allows more ù users to get access to the server at the same time


• Modelità local/remote sharing to grant shared or exclusive console privileges


• Integration with centralized management software ATEN CC 2000


• Power Over the NET integration for remote ignition control


• DDNS (Dynamic domain name system)


• Export/import user account and configuration settings


• Activation/deactivation of browser operations


• Compatible IPv 6



Compatibility à and use interfaces

• The user-friendly graphical interface based on the browser and AP offers a unified multi-language interface to reduce user learning times and increase productivityà.


• Multiplatform client support (Windows, Mac OS X, Linux, Sun)


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• The browser-based interface allows administrators to run administration activities à without the Java software package preinstalled needed


• Full screen virtual remote desktop or scalable and resizeable with Magic Panel function: a special hidden control panel



Advanced Security

• Advanced security


• Support for Smart Card /CAC player


• External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory


• TLS 1.2 encryption for password protection when accessing users


• Flexible encryption design that allows users to choose any combination of DES to 56 -bit, 3 DES to 168 -bit, AES to 256 -bit, RC 4 to 128 -bit or Random for independent encryption of keyboard/mouse data, view and virtual media


• Support for IP/MAC filter


• Supports password protection


• Private CA



Virtual Media and external media

• Virtual media allows you to manage file applications, install OS patches, install software and perform diagnostic tests


• Works with BIOS and operating system enabled USB servers


• Support for driveà USB 2.0 DVD/CD, USB mass storage devices, PC hard drives and ISO images


• Convenient to use even without virtual medium cable



Virtual Remote Desktop Function

• Virtual remote desktop


• Quality à video and video tolerance can be adjusted to optimize data transfer speed à depth setting à monochrome color, threshold and noise for data bandwidth compression in low bandwidth situations


• Full screen video display or scalable video display


• Message board for communication between remote users


• On-screen keyboard with multi-language support


• Dynasync Mouse


• Macro output support


• BIOS level access



Technical specifications

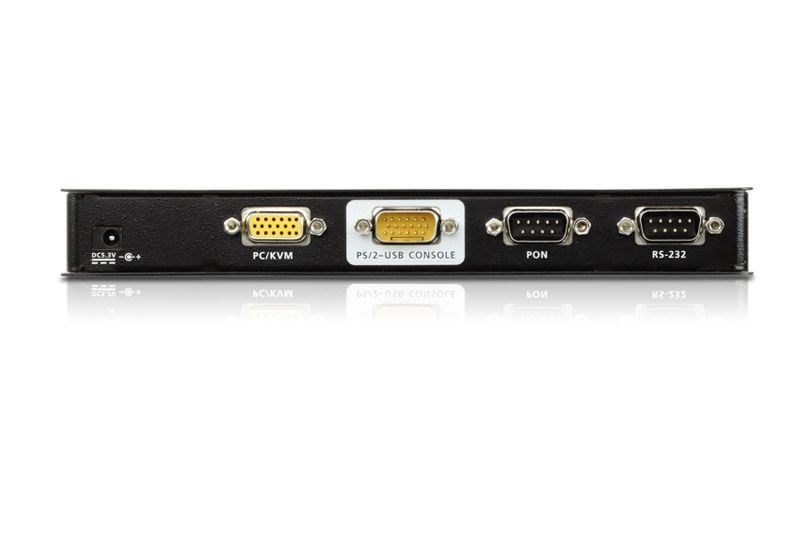

• 1 x Male console holder SPHD- 18 (yellow)


• 1 x KVM port (computer) Female SPHD- 18 (yellow)


• 1 x USB Laptop Console USB mini type B female (black)


• 1 x PON DB- 9 male (black)


• 1 x RS- 232 DB- 9 male (black)


• 1 x Doors LAN RJ- 45 female


• 1 x Power supply CC connector


• Keyboard emulation / USB mouse; PS/ 2


• Video Up to 1920 x 1200 at 60 Hz; DDC 2 B


• Consumption 5,3 V CC, 7,26 W


• Operating temperature 0 - 50 °C / Storage temperature - 20 - 60 °C / Humidità 0 - 80 % relative humidity, without condensation


• Metal structure


• Metal Structure


• Weight 0.49 kg


• Dimensions (L x P x A) 20.00 x 8.14 x 2.50 cm**



**For some rack mount products, the standard physical dimensions LxPxA are indicated using the LxLxA format.



Package contents

1 x CN 8000 A KVM over IP single-port

1 x 2 L- 5301 UP custom KVM cable set

1 x LIN 5 - 27 X 6 -U 21 G set of custom console cables

1 x LIN 5 - 04 U 1 -U 1 LG USB cable laptop

1 x 0 AD 6 - 1605 - 24 EG power adapter

1 x rack mounting kit

1 x user instructions
