Switch USB-PS KVM 2 VGA to 16 ports with USB, CS 1716 A - Aten IDATA CS- 1716 A

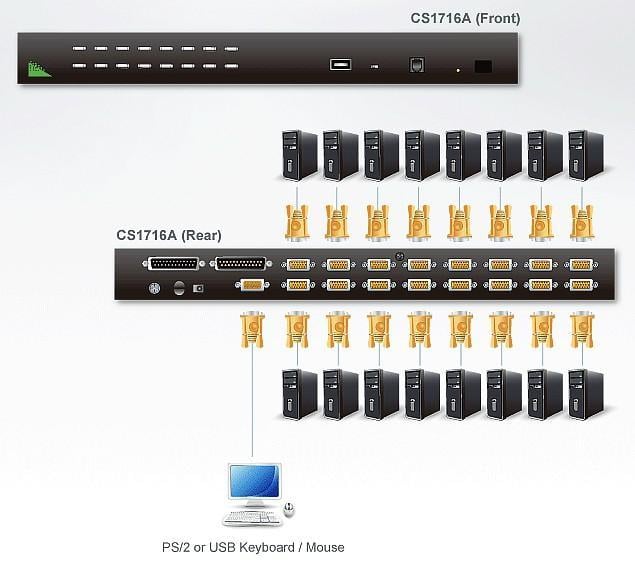

The KVM IDATA CS- 1716 A è a control unit that allows you to access multiple computers from a single PS 2 or USB console (monitor, keyboard and mouse). A single CS- 1716 A IDATA can ` control up to 16 computers. You can connect other 31 cascade switches to control 512 computers from a single console. The product also has a USB port on the front panel forch&earcute; each connected computer can access the connected peripherals in turn.



Features

• A USB-PS/ 2 console controls up to 16 computer


• Waterfall connection up to 31 unità additional to control 512 computer from one console


• The front USB port allows each computer to access USB devices*


• Double interface: supports computers and consoles with PS/ 2 or USB keyboards and mouse


• Multiplatform support (Windows, Linux, Mac and Sun)


• DynaSync Video: Stores the Extended Display Identification Data (EDIDs) of console monitors to optimize screen resolution


• Supports USB keyboards for PC, Mac and Sun


• Automatic detection of PS 2 and USB interfaces


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Superior video quality: up to 2048 x 1536 ; DDC 2 B

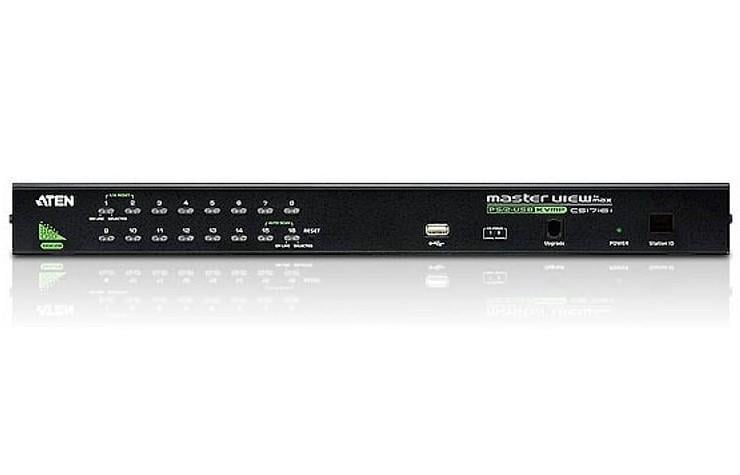

• Does not require software: convenient computer selection via front panel buttons, multilingual OSD and shortcut keys


• Automatic detection of the unit position in cascade installations; no manual dip switch setting is required; the LED on the front panel indicates the position of the unit;


• Automatic reconfiguration of port names when changing the unit sequence;


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator each with their own profile


• Modelità automatic switching for monitoring of computers selected by the user


• Modelità transmission: simultaneous execution of operations on selected computers


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Simultaneous firmware update for all KVM switches connected to cascade


• 19 rack mountable in 1 U housing



* USB devices only work with USB KVM cable sets. They do not work with PS/ 2 cable sets.



Technical specifications

• Direct computer connections: 16


• Max waterfall connections: 512


• Port Selection: OSD, shortcut keys, buttons

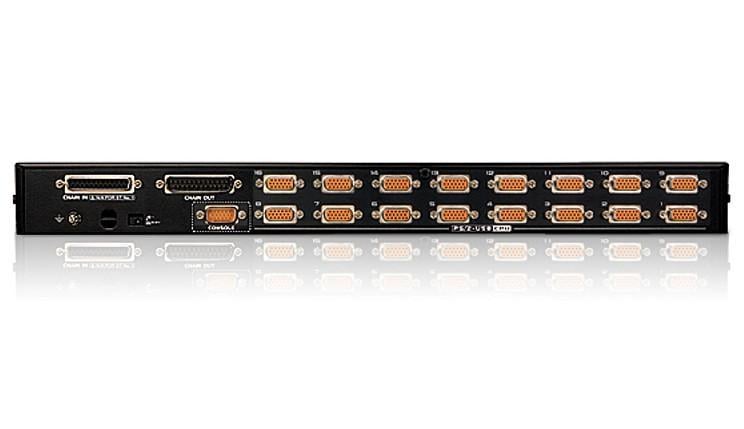

• Connectors connecting port to the console: 1 SPHD- 18 male (yellow)


• KVM door connectors: 16 SPHD- 15 / 17 female (yellow)


• Waterfall connection:



- Input: 1 DB- 25 female (black)

- Output: 1 DB- 25 male (black)

• FW update: 1 RJ- 11 female (black)


• USB port: 1 USB type A female


• Power supply: 1 female DC connector (black)


• LED: Online, Selected, Station ID, Power supply


• Switches: 16 door selection buttons, 1 update/firmware recovery sliding switch


• Mouse/keyboard emulation: PS 2 /USB


• Video: 2048 x 1536 ; DDC 2 B



Environmental features

• Operating temperature: 0 / 50 °C


• Storage temperature:- 20 / 60 °C


• Humidità: 0 - 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.99 cm


• Height: 4.40 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 KVM switch with standard rack mounting kit


• 1 PS/ 2 2 L- 5202 P cable


• 1 cable KVM USB 2 L- 5202 U


• 1 cable LIN 5 - 27 X 6 -U 21 G connection to the console


• 1 cable for firmware upgrade


• 1 set of feet (4 pcs)


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 user guide
