Switch KVMP Dual Link/audio USB DVI to 4 ports CS 1784 A - Aten IDATA CS- 1784

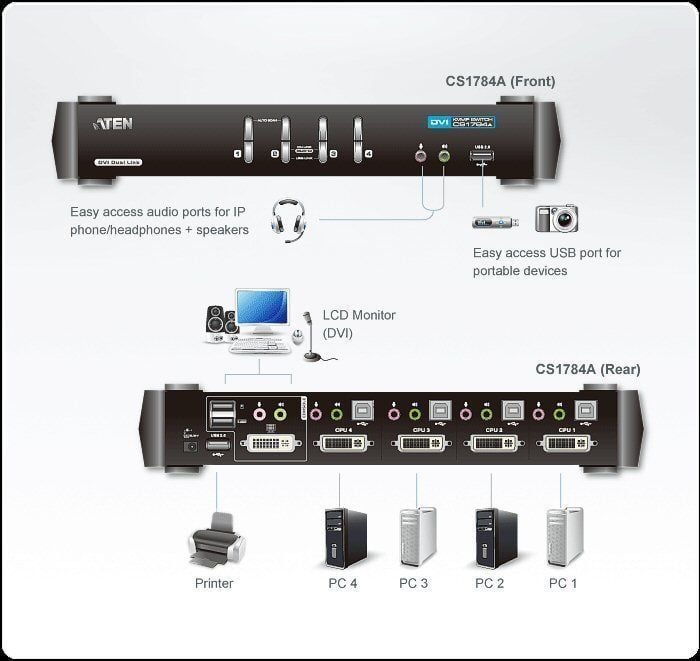

The KVMP™ USB DVI Dual Link CS 1784 A switch marks a revolutionary direction in the functionality à of the KVM switches. It combines the functionality à of a KVM switch to 4 ports with a USB hub to 2 ports and offers audio support and interface for DVI monitors. In addition, it has advanced functions such as nVidia 3 D Vision ready display support for 3 D to 120 Hz, compatible à with the gaming keyboards, selection / switching of the ports by mouse. All with the aim of offering the user flexibilityà, comodità and practicalityà.

• Switch KVMP DVI to 4 ports with USB 2.0 and audio surround 2,1


• A USB console controls four computers and two other USB devices


• 2.0 USB hub with built-in 2 ports, fully compatible with USB 2.0 specifications


• The full bass range for 2,1-channel surround sound systems

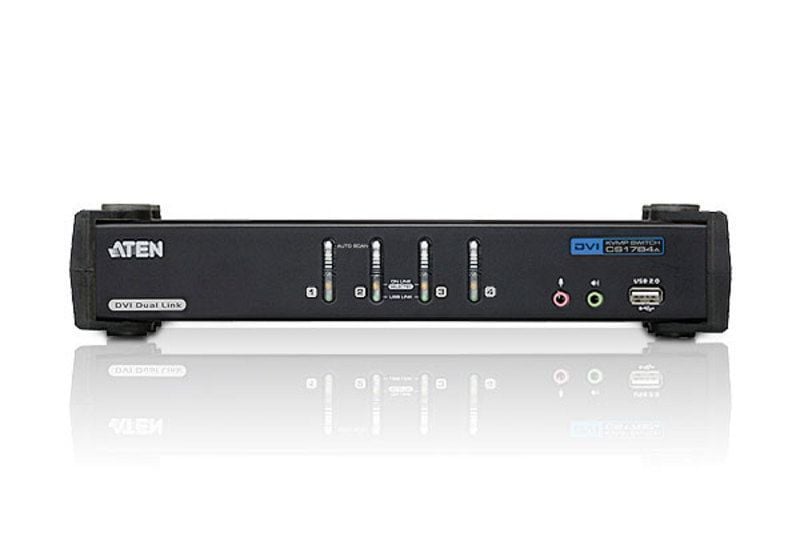

• Select your computer via the buttons on the front panel, the hotkeys and the NEW mouse!


• Multiplatform support: Windows, Linux, Mac and Sun*


• Independent switching of KVM, USB and audio control


• Support for digital and analog – DVI monitors fully compliant with DVI specifications


• Qualità higher video: 1920 x 1200 @ 60 Hz (Single Link); 2560 x 1600 @ 60 Hz (Dual Link)


• nVidia 3 D Vision Ready: Works with 120 Hz LCD monitors and active shutter glasses to create a 3 D environment with 1900 x 1080 maximum resolution


• HDCP compatible


• Support widescreen resolutions


• DynaSync video & trade;: ATEN's exclusive technology that eliminates boot-up display problems and optimizes resolution when switching from port to port


• Switching on detection: If a è computer is switched off, the switch automatically switches to the next computer ON NEW!


• The emulation/bypass function of the console mouse port supports most multifunction mouse and mouse drivers


• The emulation/bypass function of the console keyboard supports most of the multimedia and gaming keyboards NEW!


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard keymap: supports English, Japanese and French keyboards


• Modelità automatic switching for monitoring all computers


• Updated Firmware



* Emulation of Mac/Sun keyboards via PC keyboard key combinations.

Mac/Sun keyboards only work with their respective computers.

• Computer Links & 4


• Select port  Quick key, Button, Mouse

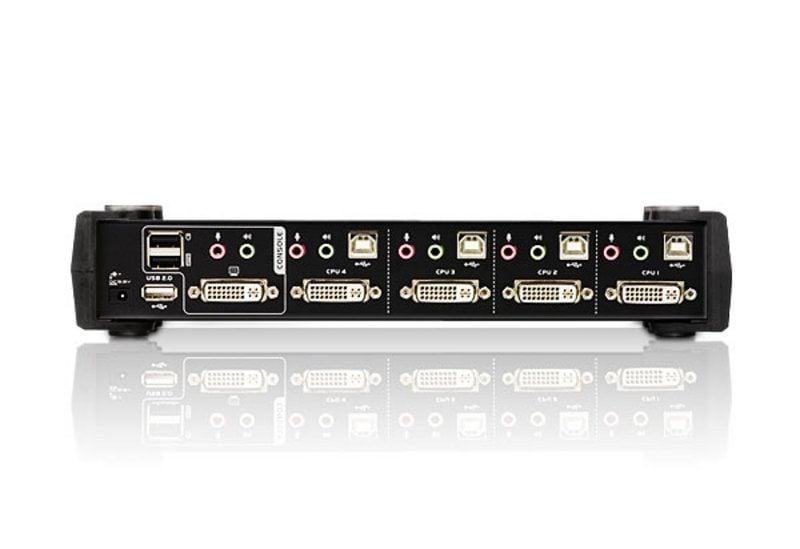

• Connectors:


• Console ports   2 x USB type A female (black; rear panel)


• 1 x DVI-I female (white)


• 1 x female type A USB (black; rear panel)


• 2 x Mini female stereo connector (green; 1 x front panel, 1 x rear panel)


• 2 x Mini female stereo connector (pink; 1 x front panel, 1 x rear panel)


• KVM  4 x female type B USB ports (white)


• 4 x DVI-I female (white)


• 4 x Mini female stereo connector (green)


• 4 x Mini female stereo connector (pink)


• Power supply   1 x DC connector


• Hub USB  2 x USB type A female (white; 1 x front panel, 1 x rear panel)


• Switches


• Selected power   4 x Button


• LED: USB/emsp; 4 (green); Online/Selected  4 (orange)


• Emulation: Keyboard / Mouse USB


• Video DVI Dual Link: 2560 x 1600 ; DVI Single Link: 1920 x 1200


• Scan interval   1 - 99 seconds (default: 5 seconds)


• Consumption  5,3 V CC, 10 W


• Environment: Operating temperature & 0 - 50 °C


• Storage temperature - 20 - 60 °C


• Humidità  0 - 80 % relative humidity, without condensation


• Proprietà physical: Structure  Metal


• Weight & 0.93 kg (2.05 lb)


• Dimensions (L x P x A)  27.00 x 8.80 x 5.55 cm



Package includes

1 x CS 1784 A switch KVMP™ USB DVI Dual Link

4 x 2 L- 7 D 02 UD cable set KVM DVI-D

1 x 0 AD 6 - 1605 - 24 EG power supply

1 x user guide
