KVM Extender / USB Splitter DVI Cat 5 AND Dual View RS- 232 - Aten IDATA MTS-DVI

IDATA MTS-DVI (CE 604) è a kvm extender / splitter USB based on DVI, which has functionality à Dual View: allows you to view the same image on two monitors. With the RS- 232 serial functionality, it allows access to a computer system from a remote console up to 60 meters away. It is built for security and control purposes and is aimed at financial and industrial markets.

IDATA MTS-DVI è equipped with a RS- 232 serial channel that you can ` connect to a serial terminal or serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced alarm clock feature that allows you to reactivate a PC at the local site by simply pressing a button from the remote dual display console. Eliminates the need to travel back and forth between local computer and remote console, which makes it an effective flexible solution.

It is perfect for applications that require the console to be in an easily accessible location, while system devices need to reside in a safe place, away from dust, dirt and harsh environmental influences. It also provides an economical and effective way to keep sensitive data, such as financial and personal information, safe in a heavy data center, while allowing remote access to users.



Features

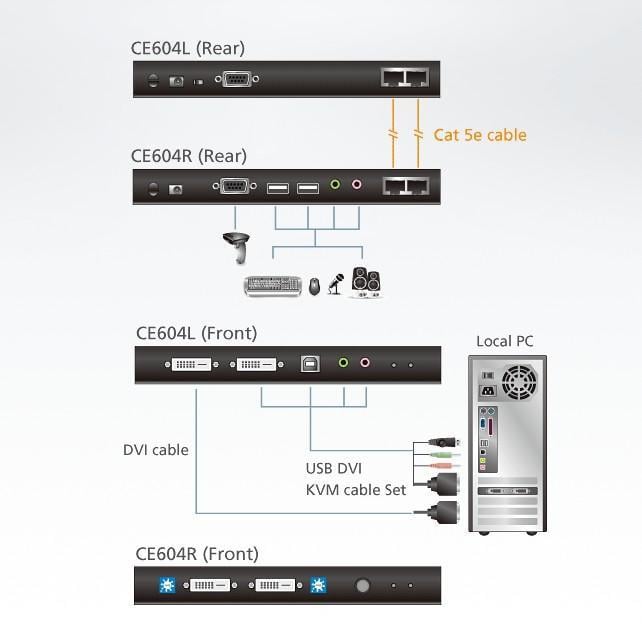

• Allows remote and local unit à to connect up to 60 m distance with two Cat cables. 5 E


• Transmit speaker, keyboard, mouse, DDC and DVI via a Cat 5 cable; RS- 232 , a microphone and another DVI with the addition of a second Cat 5 E cable


• Supports Dual View data transmission (a PC with two video output ports)


• Supports stereo speaker and microphone


• Supports DDC and Aten EDID technology: Set various configurations using shortcut keys


• Supports PC reactivation function by means of a shortcut button or button


• Serial RS- 232 channel - connection to a serial terminal or serial devices such as touchscreen and barcode scanner (speedà transmission up to 9600 bps)


• Qualità higher video: up to 1920 x 1200 @ 60 Hz a 30 m; 1024 x 768 @ 60 Hz a 60 m


• Manual compensation control, to adjust the video signal quality à to compensate for the distance


• ESD protection (contact voltage 8 kV, air voltage 15 KV) and overvoltage protection 2 KV



Package contents

1 x Unità Local

1 x Unità remote

1 x Set of USB Cables DVI

1 x DVI cable

2 x power supply

1 x Mounting kit

1 x Instructions for use
