Additional Receiver for Extender/Splitter HDMI on Cat Cable 6 1080 p@ 60 Hz up to 120 m - Techly IDATA EXTIP- 373 R

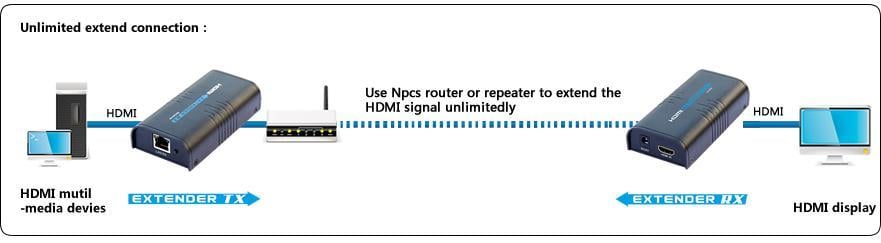

Professional signal transmission system that allows carrying HDMI signal over long distances using a Cat.5/6 network cable, by converting the HDMI signal into a standard TCP/IP signal. Via a router or a repeater thanks to a daisy-chain connection, the HDMI signal can be extended indefinitely. The IDATA EXTIP-373, also allows to function as a splitter since a transmitter can be connected to N receivers (max 253) to send the HDMI signal to different screens according to the user's needs. Supports all HDMI specs including full HD 1080p, deep color, lip sync and CEC; also supports all high-resolution multi-channel audio formats including Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio.

Due to the high bandwidth consumption it is advisable to use these devices with IGMP routers, or alternatively on dedicated networks or on separate VLAN port based.



Features

• Receives digital video audio signal from the local unità (transmitter) to which è connects the HDMI source via network cable

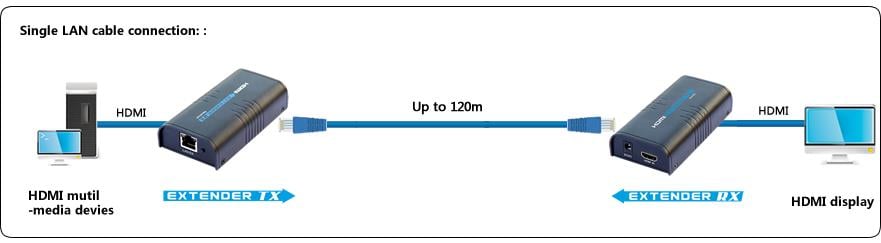

• The kit consisting of transmitter and receiver (EXTIP- 373 IDATA) allows you to carry the HDMI signal up to 120 m using a Cat 6 network cable

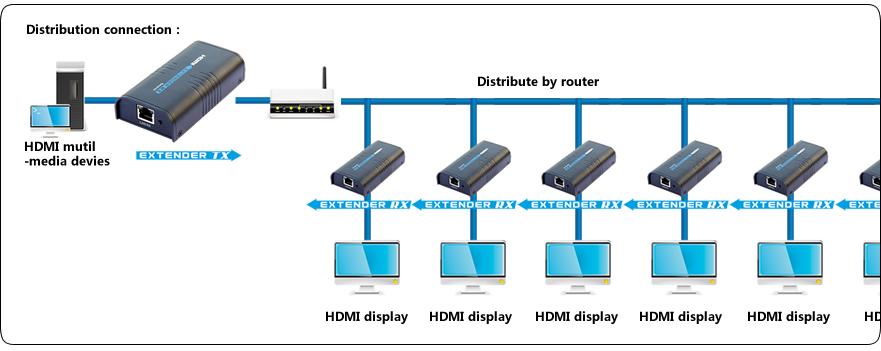

• The local unit à if it is connected to several units à remote via a switching hub, thus creating multi-point point links



Specifications

• Supports HDCP 1.2


• HDMI input resolution: 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz；


• HDMI output resolution: 480p@60Hz、576p@50Hz、720p@50/60Hz、1080p@50/60Hz


• Supported video color format: 24 bit/Deep color 30 bit/Deep color 36 bit


• Supported audio format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/Dolby-AC 3 /DSD


• Velocità maximum transmission: 10.2 Gbps


• 0.5 - 1.5 Vp-p (TMDS) signal


• DDC signal: 5 Vp-p(TTL)


• Input cable length: ≤ 5 m (HDMI High Speed AWG 26 cable)


• Output cable length: ≤ 5 m (HDMI High Speed AWG 26 cable)


• Connector type: RJ 45


• Interface: Cat 5 and/ 6 with tweeted pairs


• Transmission distance: Cat 6 up to 120 m (Cat 5 and up to 100 m)


• Standard wiring: TIA/EIA 568 B


• Power supply: DC 5 V


• Consumption: < 3.6W


• Operating temperature: 0 - 55 °C


• Storage temperature: - 20 - 70 °C (without condensation)


• Dimensions (LxPxA): 5.7 x 10.6 x 2.6 cm



Package contents

• Receiver x 1


• Power supply x 1


• Instructions manual
