Switch USB-PS KVM 2 VGA Over IP 8 Doors with USB port - Aten IDATA CS- 1708 I

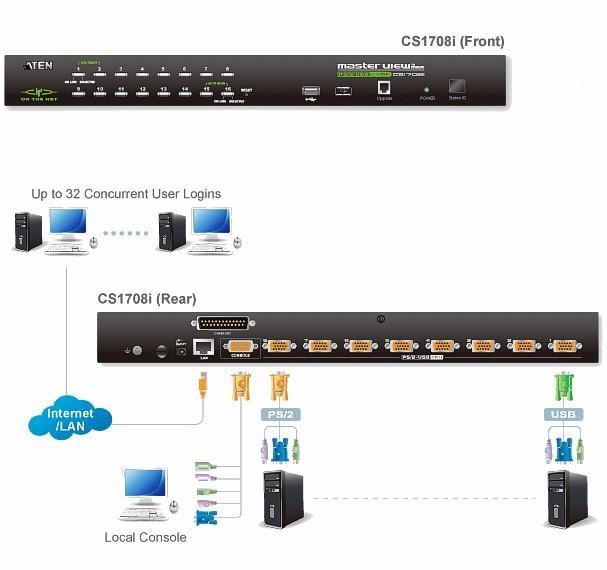

IDATA CS- 1708 I è a KVM to 8 port switch in a 1 U housing for convenient rack mounting. The device allows system administrators to access connected servers both locally and via IP (LAN and/or WAN). IDATA CS- 1708 I works regardless of the platform used, Windows, Linux, Mac and Sun.



The special KVM cables and the function "Video DynaSync" always provide optimal video resolution. KVM è installation is also easily expandable using the cascade connection, so that you can control up to 128 server.

On the è console side you can connect a VGA/LCD monitor, mouse and PS 2 keyboard or USB for local operation. A dedicated USB port allows you to connect a device.



ATEN has also developed several special functions for IP management:

- Message board: allows IP users to communicate

- Modalità Panel Array: to monitor all connected servers on a single screen

- DynaSync Mouse: synchronize mouse movements to avoid delays



Management

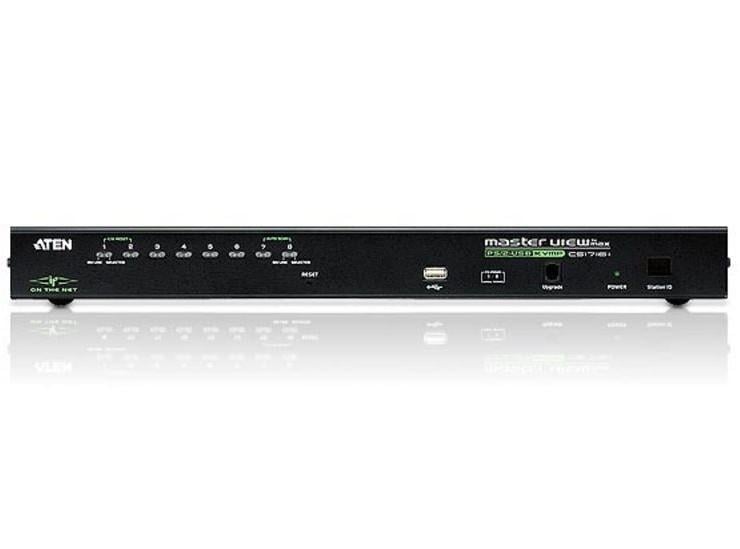

• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• Supports up to 32 contemporary login


• Local and remote multilingual web and OSD interfaces with tree view


• Quality à video adjustment to adapt to different network environments


• Modelità automatic switching for monitoring of computer selected by the user


• Modelità transmission: simultaneous execution of operations on selected computers (installing software, shutting down the entire system, etc.)


• Updated Firmware


• Import/export configuration settings and user accounts


• Event recording


• Enabling/disabling browser access


• Compatible IPv 6



Easy-to-use interface

• Browser-based and AP-based interfaces, in addition to the local console OSD, offer a unified multilingual interface to reduce learning time and increase productivityà


• Multiplatform client support (Windows, Mac OS X, Linux, Sun)


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• Automatic reconfiguration of port names when changing the unit sequence;


• The modeà Panel Array allows you to monitor more ù servers simultaneously from a single screen. The video output of each selected server appears in your pane; the user can ò select the number of visible panes


• Support for Windows and Java clients, the Java client works with all operating systems



Advanced security

• Secure transmission of keyboard/mouse/video signals via 4 RC encryption to 128 bits


• Supports encryption of SSL data to 128 bits and 1024 bits RSA certificates for secure access to users via browser


• Two-level password security: up to 64 user account, each with its own profile


• External authentication support (remote): RADIUS, LDAP, LDAPS and MS Active Directory


• Support for IP/MAC filters


• Recording and authentication of local and remote accesses



Virtual remote desktop

• Resizeable remote desktop window


• The message board allows connected users to communicate with each other and a user to take sole control of KVM functions


• DynaSync Mouse


• On-screen keyboard with multilingual support


• BIOS level access



Hardware

• 8 KVM switch ports for remote access: monitoring and control of 8 computers from a single KVM console


• Waterfall connection up to 15 unità additional to control 128 computer from one console*


• Automatic detection of the unit position; in cascade installations; no manual setting of the DIP switch is required; the LED on the front panel indicates the position of the unità


• Hot connection: you can add and remove computers without having to turn off the switch


• Multiplatform support: Windows, Linux, Mac and Sun


• The USB hub on the front panel allows connected computers to access USB devices


• Double interface: supports computers with PS/ 2 or USB keyboard and mouse configurations and automatically detects interface type


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Supports USB keyboards for PC, Mac and Sun


• Qualityà higher video: up to 2048 x 1536 ; DDC 2 B for local console; up to 1600 x 1200 at 60 Hz with 24 bits of depthà color for remote sessions


• DynaSync Video: Stores the Extended Display Identification Data (EDIDs) of console monitors to optimize screen resolution


• 19 rack mountable (1 U)


• Housing material: metal



* Compatible KVM switches include: ACS 1208 A, ACS 1216 A, CS 1708 , CS 1716 , CS 1708 A, CS 1716 A, KH 1508 , KH 1516



Technical specifications

• Computer connections: direct 8 , Max 128 in cascade


• Port Selection: OSD/GUI, shortcut, button

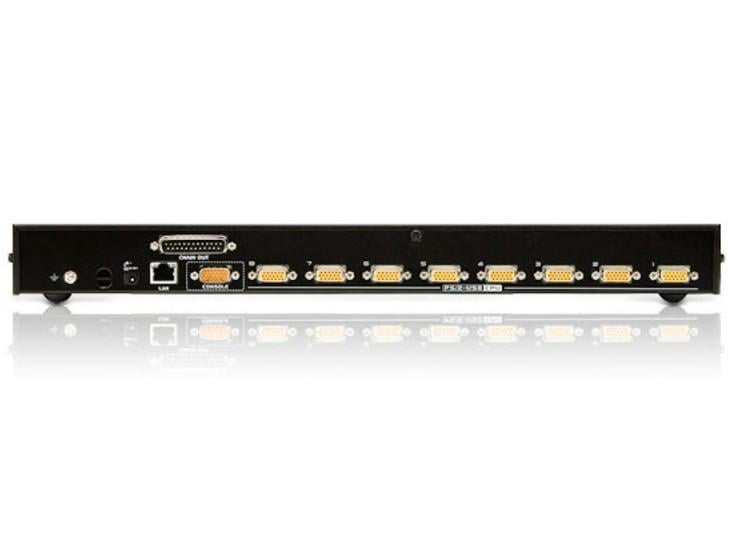

• Connectors:



- Connection door to the console 1 SPHD- 18 male (yellow)

- Doors KVM 8 SPHD- 17 female (yellow)

- Cascade connection   1 DB- 25 male (black)

- Power supply 1 DC connector

- LAN 1 RJ- 45 female

- Update FW 1 RJ - 11

- USB port (1.1 )   1 USB type A

• Switches:



- Restore: 1 button slightly recessed

- Door selection: 8 buttons

- Updating/recovering firmware: 1 sliding switch

• LED:



- Online: 8 (orange)

- Selected: 8 (green)

- Station ID: 2 to 7 segments (orange)

- Power supply: 1 (dark green)

- 10 / 100 Mbps: 1 (orange/green – on the LAN port)

• Mouse and keyboard emulation: USB/PS 2


• Video:



- Local console 2048 x 1536 ; DDC 2 B

- Remote 1600 x 1200 @ 60 Hz/ deep color 24 bit

• Switching interval (OSD selection) 1 – 255 sec.


• Power consumption: DC 5,3 V, 9,5 W



Environmental features

• Operating temperature 0 – 50 °C


• Storage temperature - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.98 cm


• Height: 4.40 cm
