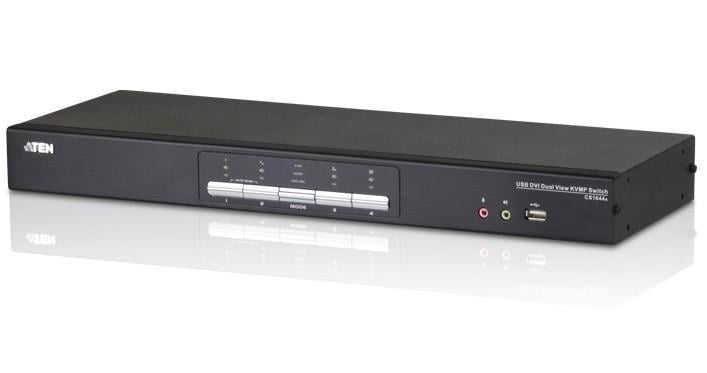

Switch KVMP USB DVI Dual View a 4 Porte - Aten IDATA CS- 1644 A

The KVMP USB DVI Dual View switch to 4 ports IDATA CS- 1644 A è a multi-application device that integrates a KVM switch to 4 ports with a USB hub to 2 ports. The latest version supports the functionalityà Quad View, allowing you to connect two KVM Dual View switches.



The new IDATA CS- 1644 A features multi-view functionality, which allow daisy connections of two switches to connect two, three or four screens in multi-monitor installations. It supports the advanced viewing 3 D Vision of nVidia to 120 Hz, which allows you to manage different visual effects 3 D. This feature allows you to manage all computers connected from a single console, saving so ì resources and space. Each computer can ò turn access to the connected peripherals; an ideal solution therefore for users who need special visual effects and multi-tasking on different machines. IDATA CS- 1644 A è perfect for graphic designers, banking and financial consultants, players and doctors, all figures that require high quality switch à able to provide colors, clarity and functionalityà amazing.



Features

• A dual-screen USB console controls two to four computers with double-screen and two other USB devices

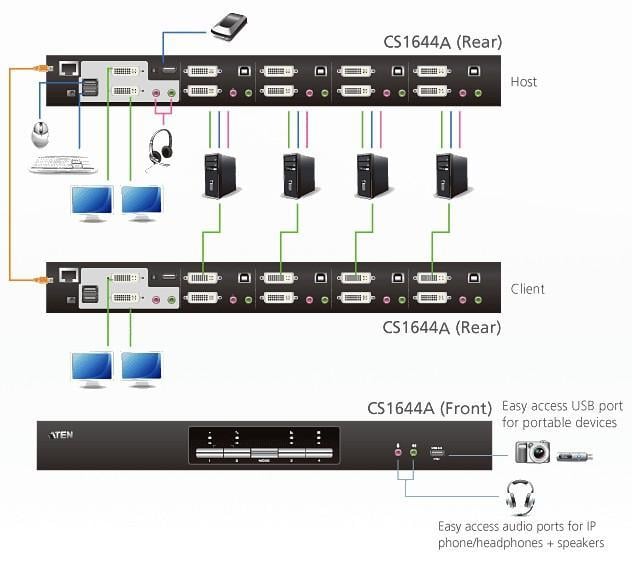

• Multi View: easy connection of two units; CS 1642 A/ 1644 A for a second double-screen installation controlled by a single connection


• Quality à higher video: 2560 x 1600 at 60 Hz (DVI Dual Link) and 3 D screens up to 1920 x 1200 at 120 Hz (DVI Single Link)


• Support widescreen resolutions


• Independent switching of KVM, USB and audio control


• Support for digital and analog DVI monitors: fully compliant with DVI specifications and HDCP compliant


• Multiplatform support: Windows 2000 /XP/Vista, Linux*, Mac, Sun and FreeBSD


• Mac/Sun keyboard support and emulation**


• DynaSync video exclusive technology from ATEN that eliminates all-time display problems and optimizes resolution when switching from door to door



* Supports the Linux 2.6 kernel and later versions. CS 1644 A è features an integrated USB 2.0 hub and does not support PCs or operating systems that do not support USB 2.0.

** Emulation of Mac keyboards via PC keyboard key combinations.

** Mac keyboards only work with their respective computers.



Technical specifications

• Computer connection: 4

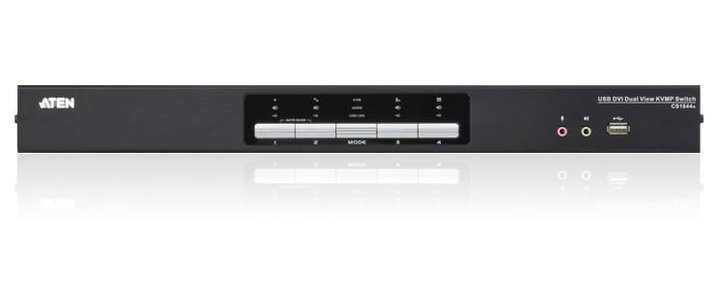

• Port selection: buttons; mouse; shortcut keys


• Connectors connection port to the console:



- Keyboard: 1 USB type A female (white, rear panel)

- Video: 2 DVI-I (white)

- Mouse: 1 USB type A female (white, rear panel)

- Speakers: 1 mini stereo female (green)

- Microphone: 1 mini stereo female (pink)

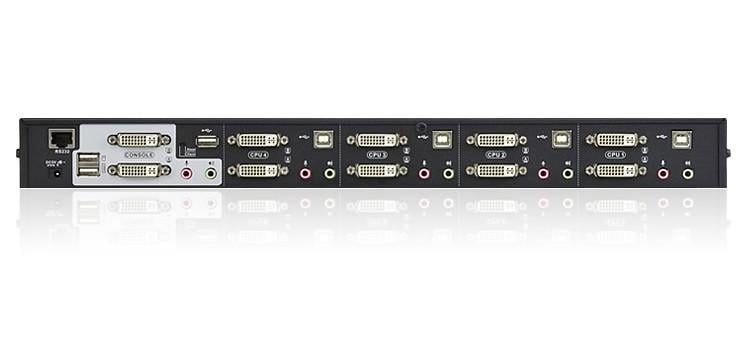

• KVM port connectors:



- Keyboard/Mouse: 4 USB type B female (white)

- Video: 8 DVI-I (white)

- Speakers: 4 mini stereo female (green)

- Microphone: 4 mini stereo female (pink)

• USB Hub 2.0: 2 USB type A female (black, 1 on front panel, 1 on rear panel)


• Mouse/keyboard emulation: USB


• Video: DVI Dual Link: DVI Dual Link: 2560 x 1600 at 60 Hz; 1920 x 1200 at 120 Hz (Screen 3 D)


• Power consumption: DC 5,3 V, 12,19 W



Environmental features

• Operating temperature: 0 / 50 °C


• Storage temperature: - 20 / 60 °C


• Humidità: 0 - 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Height: 4.40 cm


• Depthà: 15.98 cm



Package contents

• 1 x IDATA CS- 1644 A switch KVMP USB DVI Dual View to 4 ports


• 8 x custom cable set DVI-D Dual Link (1.8 m)


• 1 x power supply


• 1 x user guide
