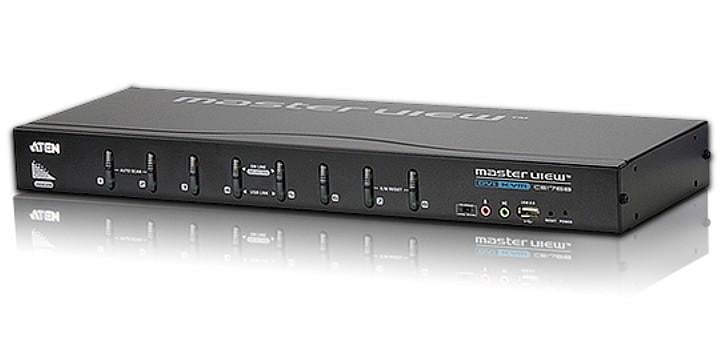

Switch USB KVM DVI to 8 ports - Aten IDATA CS- 1768

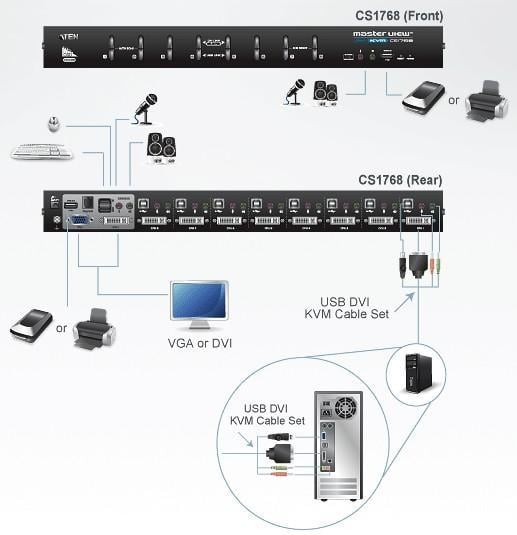

The KVM USB DVI switch to 8 ports IDATA CS- 1768 è a device to control up to 512 computer from a single console composed of USB keyboard, USB mouse and double monitor (DVI-I and VGA).

You can make cascade connections up to three levels, for a maximum of 73 CS 1768 that control up to 512 computers, all from the same starting console.

This switch also offers the Multi View functionality, which allows you to use standard USB cables to connect up to four quad view switches in multi-player installations where each è computer has more ù video cards.

In addition, IDATA CS- 1768 has the OSD function of ATEN to access an installation computer and the ability to save and restore the configuration of the OSD and its settings.

It transmits audio and supports multimedia keyboards. Two microphones provide audio input to each computer, while for the è output, two sets of speakers can be used on each computer (in turn).



Features

• A USB console controls eight computers with DVI Single Link or VGA interface and two other USB 2.0 devices


• Supports both digital video (DVI) and analogue video (VGA), even in combination with each other


• Possibility to cascade up to 3 levels to control up to 512 computers


• Multi View function: to stack up to four units à CS 1768 and display video of up to four monitors (dual view, triple view, quad view)


• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• OSD backup/restore function: admins can back up the switch configuration and user profiles


• Hub with 2 USB ports 2.0 included


• Fully compliant with USB 2.0 specifications


• Two levels of password permission (administrator/user) for increased security


• Languages for OSD include English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels

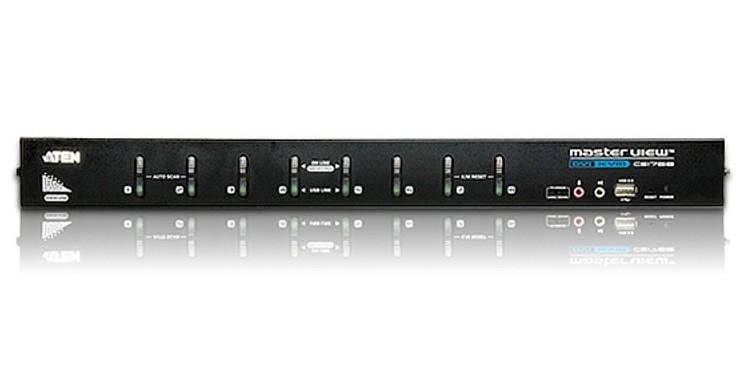

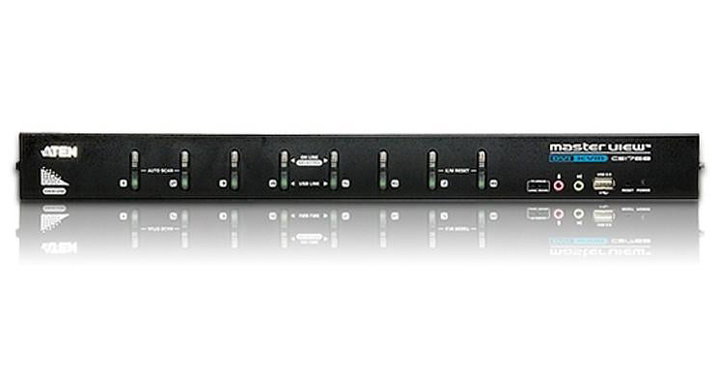

• Console audio ports on the front panel for easy access


• Multiplatform support: Windows, Linux, Mac and Sun


• Support widescreen resolutions


• Quality à top video: 1920 x 1200 (DVI Single Link); 2048 x 1536 (VGA); DDC 2 B


• Independent switching of KVM and USB control


• Support for digital and analog DVI monitors: fully compliant with DVI specifications


• HDCP compatible


• DynaSync video, ATEN's exclusive technology that eliminates all-time display problems and optimizes resolution when switching from door to door


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard map: supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese and Spanish


• Modelità automatic switching for monitoring all computers


• Modelità transmission: allows you to send commands from the console to all computers to perform simultaneous operations


• Updated Firmware



Note: Emulation of Sun/Mac keyboards via PC keyboard key combinations; Mac/Sun keyboards only work with their respective computers



Technical specifications

• Direct computer connection: 8


• Max connection in cascade: 512


• Port Selection: OSD, shortcut key, button


• Connector ports to the console:



- Keyboard: 1 USB type A female (black)

- Video: 1 HDB- 15 female (black) / 1 DVI-I female (white)

- Mouse: 1 USB type A female (black)

- Speakers: 2 mini stereo female (green, 1 on the front panel, 1 on the rear panel)

- Microphone: 2 mini stereo female (pink, 1 on the front panel, 1 on the rear panel)

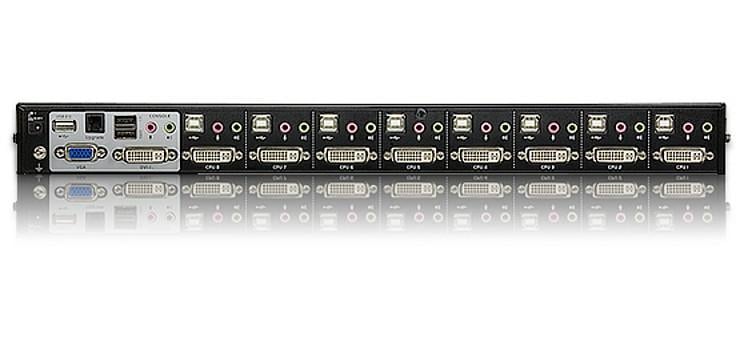

• KVM port connectors:



- Keyboard/Mouse: 8 USB type B female (white)

- Video: 8 DVI-I (white)

- Speakers: 8 mini stereo female (green)

- Microphone: 8 mini stereo male (pink)

• F/W update: 1 RJ- 11 female (black)


• Power supply: 1 DC connector


• USB hub 2.0: 2 USB type A female (white, 1 on the front panel, 1 on the rear panel)


• LED: Online, Selected, Power supply


• Keyboard/Mouse emulation: USB


• Video: DVI Single Link: 1920 x 1200 ; VGA: 2048 x 1536



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Height: 4.40 cm


• Depthà: 16.12 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 switch KVM USB DVI CS 1768 to 8 ports with kit for rack mounting


• 2 cable set KVM USB DVI-D 2 L- 7 D 02 U


• 1 cable for firmware upgrade


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 set of feet (4 pcs)


• 1 fixing kit with screws


• 1 user guide
