Switch USB-PS KVM 2 VGA to 16 ports - Aten IDATA CS- 1316

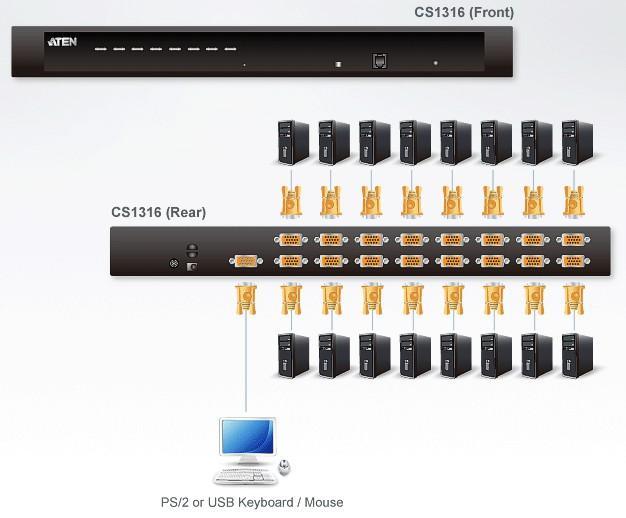

The IDATA CS- 1316 KVM switch allows you to control up to 256 computers with a single keyboard, screen and mouse (i.e. from a single console). Possibility to cascading additional 16 switches bringing così the total number of computers connected to 256 , controlled by a single keyboard-monitor-mouse console. The switch supports connections both USB and PS 2 for the console and computer.



Features

• A USB-PS 2 console controls 16 computer


• Waterfall connection up to 2 levels to control 256 computer


• Double interface: supports PS 2 or USB keyboard and mouse computers


• Support for different platforms - Windows 2000 /XP/Vista, Linux, Mac and Sun


• DynaSync Video: ATEN's exclusive technology that eliminates visualization problems at startup and optimizes resolution when switching from door to door


• Automatic detection of PS 2 and USB interfaces


• Emulation of USB mouse and keyboards or PS 2: computers start even when the control of the è console elsewhere


• Superior video quality: up to 2048 x 1536 ; DDC 2 B


• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator each with their own profile


• Modelità automatic switching for monitoring of computer selected by the user


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Updated Firmware


• No è software needed to be installed


• Designed for desk or rack mounting (1 U format)



Technical specifications

• Direct computer connection: 16


• Max connection in cascade: 256


• Port Selection: OSD, shortcut keys, buttons


• Connector ports to the console:



- Keyboard/Mouse/Video: 1 SPHD- 18 male (yellow)

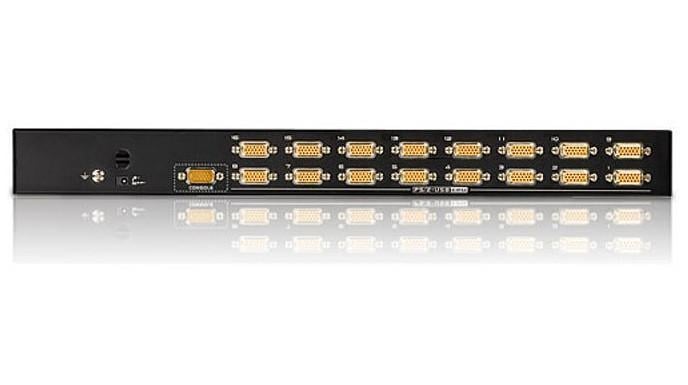

• KVM port connectors:



- Keyboard/Mouse/Video: 16 SPHD- 15 female (yellow)

• FW update: 1 RJ- 11 female (black)


• Power supply: 1 DC connector


• LED: Online, Selected, Power supply


• Keyboard/Mouse emulation PS 2 and USB


• Video: 2048 x 1536 ; DDC 2 B



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Height: 4.40 cm


• Depthà: 16.13 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 switch KVM CS 1316 with rack mounting kit


• 1 cable LIN 5 - 27 X 6 -U 21 G connection to the console


• 1 cable for firmware upgrade


• 1 set of feet (4 pcs)


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 assembly kit


• 1 user guide
