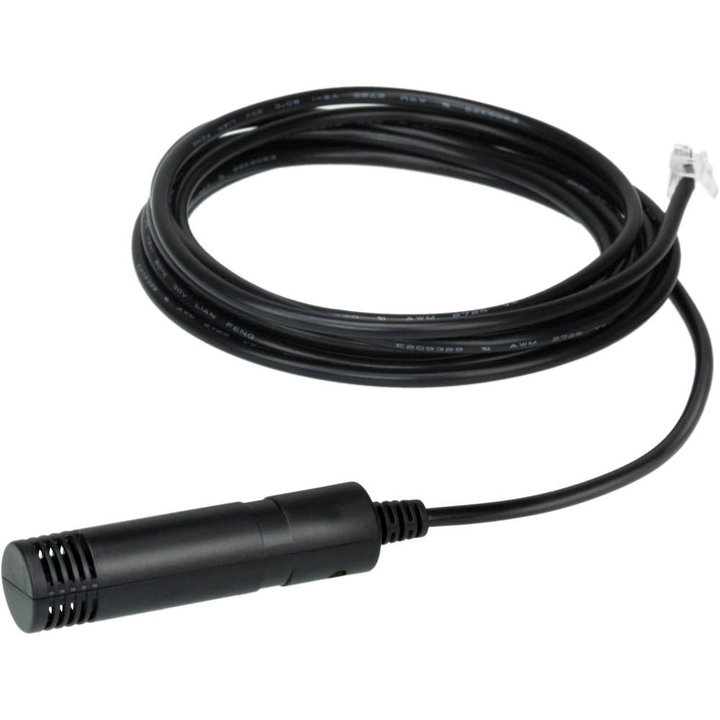

Temperature Sensor - ATEN I-CASE PE-EA1140

For environmental monitoring and management, ATEN provides probes that operate in tandem with PDUs, obtaining soì temperature measurement. It is possible to monitor environmental conditions with alarms based on minimum/maximum custom temperature thresholds.



*The è sensor is an optional accessory. ATEN PDUs can be used without environmental sensors. However, for a complete energy management of the data center and the full use of ATEN solutions, the installation of the sensors becomes necessary.



Features

• Measurement range: 0 – 40°C


• Measurement accuracy: +/- 1°C


• Compact design, cable from 3m embedded


• High sensitivity;


• Easy operation



Technical specifications

• Connector RJ-11 male


• Temperature measurement:



- Interval 0 – 40°C

- Accuracy +/- 1°C

• Power supply voltage 5VCC (max.)


• Power consumption 5mA max: (2mA med.)


• Cable length: 3m


• Material: plastic


• Color: black



Environmental features

• Operating temperature: 0 – 55°C


• Storage temperature: - 20 – 70 °C


• Humidità < 95% di umidità relativa



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 temperature sensor EA1140


• 1 sensor support


• 4 Bands


• 3String stickers
