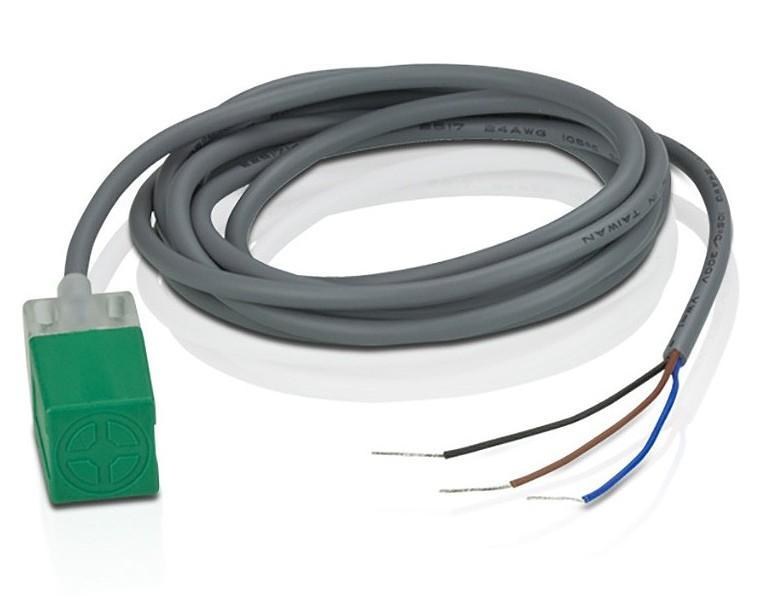

Inductive Proximity Sensor for Door - Aten I-CASE PE-EA1441

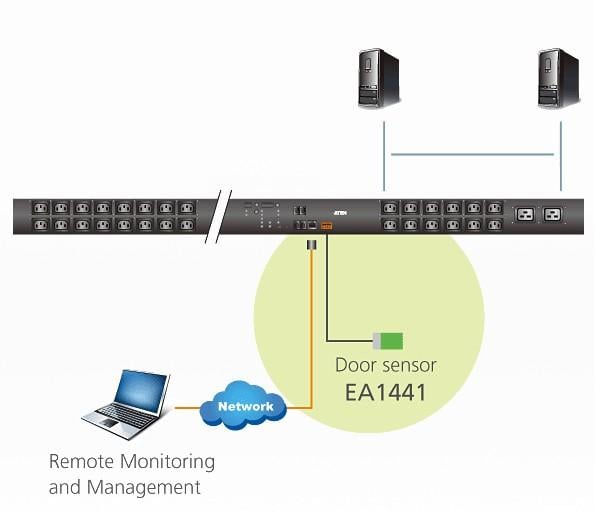

For data center security, ATEN provides door probes with inductive proximity sensors that operate in tandem with PDUs and allow monitoring of access to the rack-mounted case door, alerting the user when a door is opened. It is possible to monitor various conditions with alarms based on custom min/max thresholds.



* The sensor is an optional accessory; it is possible to use the ATEN PDU without port sensors. However, for complete data center security management and full utilization of ATEN solutions, sensor installation becomes necessary.



**Supports only the PE7/PE8/PE9 series



Features

• The inductive proximity sensor for the door allows monitoring of access to the rack-mounted case door, alerting the user when a door is opened


• High sensitivity


• Easy operation



Technical specifications

• Operating voltage from 10 to 30V DC


• Voltage ripple 20% peak-to-peak


• Current consumption 10mA max.


• Detection distance 5,0mm


• Hysteresis 10% of maximum detection distance


• Frequency response 800Hz min.


• Output method PNP


• Output status NO


• Output current 150mA max.


• Residual voltage 0,1V max.


• Leakage current 0,8mA max.


• Protection circuit: short circuit and reverse polarity protection


• Connection 3c/4,0


• Dielectric strength 2,5kV / 1 minute min.


• Insulation resistance 100 MOhm / 500VDC


• Operating conditions From -20°C to 80°C; relative humidity from 35% to 95%


• Protection class  IP-67
