Rack PDU multi-stake 16 C13 with Measurement - ATEN I-CASE PE-1216G

I-CASE PE-1216G è an ecological power distribution unit (PSU) at 16 NRGence line AC sockets to increase power usage efficiency in data centers.

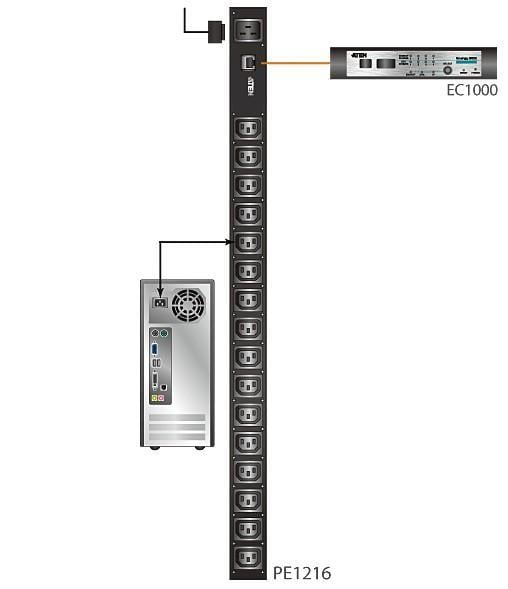

It can be easily integrated into an installation with the Energy Box EC 1000 that allows real-time monitoring of the PDU's current and environmental conditions from the panel of the 1000 EC on the rack or remotely via web interface



Thanks to the combination with the Energy Box EC1000 offers remote control of the power supply as well as the measurement of the power supply in real time that allows you to control and monitor the power status of the device connected to the PDU, both at PDU and gripping device level, from practically any position using a TCP/IP connection.



Technical specifications

• Nominal input voltage: 100 - 240V AC


• Maximum input current: 16A


• Input frequency: 50-60 Hz


• Input connection: IEC 60320 C20


• Input power: 3680 VA (maximum)


• Output type: Total: 16 x IEC320 C13


• Rated output voltage: 100 - 240V AC


• Maximum output current (output): 10A maximum


• Maximum output current (accumulator): 16A maximum


• Maximum output current (total): 16A maximum


• Lifesaving: 1 x Lifesaving without fuse 16A


• Measurement: Current level accumulator monitoring (via EC1000 Energy Box)


• Measurement accuracy: current range: 0,1 A ~ 1 A +/- 0,1 A, 1 A ~ 20 A +/- 1 %



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità storage: 0 - 80% of relative humidity, without condensation



Dimensions

• Width: 73.00 cm


• Depthà: 4.40 cm


• Height: 4.40 cm


• Cable length: 3m



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 PDU Energy PE1216


• 1 Power cable (310 cm – separate cable with power connectors C19 and C20)


• 1 Mounting kit


• 1 User guide
