Differential Pressure and Temperature Sensor - Aten I-CASE PE-EA1340

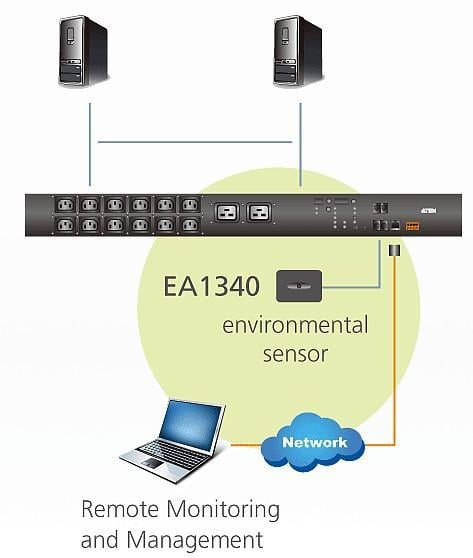

For environmental monitoring and management, ATEN provides probes that operate in tandem with the PDUs, thereby obtaining differential pressure and temperature measurement. Environmental conditions can be monitored with alarms based on customized minimum/maximum temperature and humidity thresholds.



* The sensor is an optional accessory; ATEN PDUs can also be used without environmental sensors. However, for complete data center energy management and full utilization of ATEN solutions, installation of sensors becomes necessary.



Features

• Measurement range: from -19 to 60°C (temperature); +-500 Pa (pressure)


• Compact design, built-in 3 m cable


• High sensitivity


• Easy operation



Technical specifications

• Connector RJ11-4P4C


• Measurement range 



- Pressure +-500 Pa

- Temperature from -19 to 60°C

• Resolution 



- Pressure 0,3 Pa

- Temperature 0,1°C

• Accuracy 



- Pressure +-1 % ,(from 15 to 35°C)

- C.T. -0,1 Pa/ °C

- Temperature +-1°C (from 0 to 40°C)

• Unit 



- Pressure Pa

- Temperature °C

• Power consumption: DC 5V (max) 3mA (typical)


• Cable length: 3m


• Material: plastic


• Color: black



Environmental features

• Operating temperature: 0 – 60°C


• Storage temperature: 0 – 40°C


• Humidity < 95% di umidità relativa



Package contents

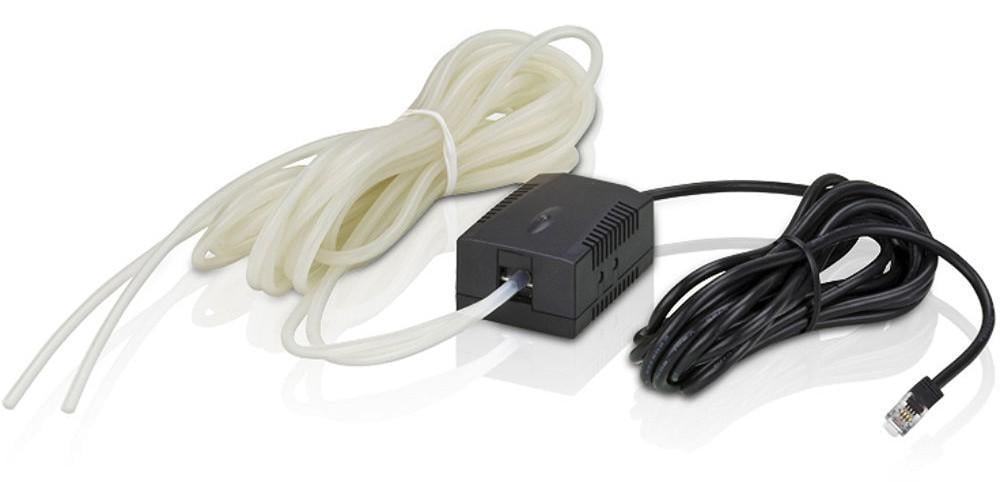

• 1x differential pressure and temperature sensor


• 2x pneumatic tubes
