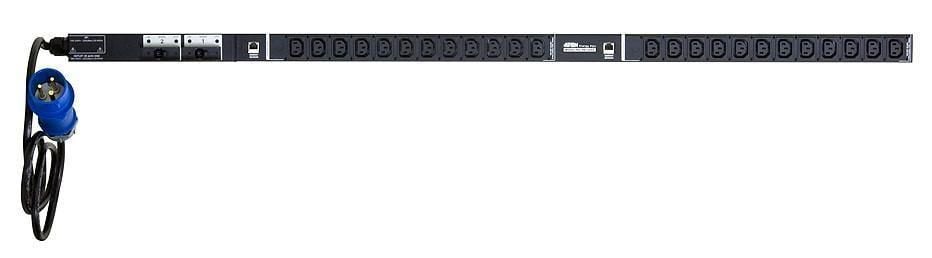

Rack PDU multi-stake 24 C13 with Measurement - ATEN I-CASE PE-1324G

I-CASE PE-1324G è an ecological power distribution unit (PSU) at 24 NRGence line AC sockets to increase power usage efficiency in data centers.



The PDU Energy PE1324 offers 24 AC sockets available in IEC configurations. Its compact design 0U allows you to mount it vertically outside the rack, allowing you to make better use of the available space but providing at the same time a good 24 AC sockets.

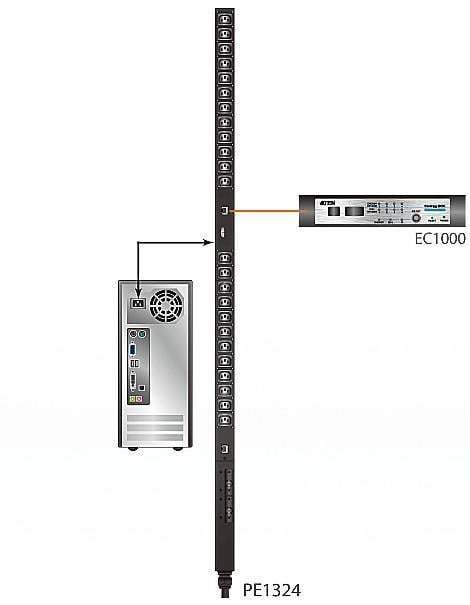

It can easily be integrated into an installation with the Energy Box I-CASE EC- 1000 , allowing you to monitor in real time the current and environmental conditions of the PDU from the front panel of the 1000 EC on the rack or remotely via web interface. An easy way to make the server room more environmentally friendly.



Technical specifications

• Nominal input voltage: 100 - 240V AC


• Maximum input current: 32A


• Input frequency: 50-60 Hz


• Input connection: IEC 60309 32A


• Input power: 7360 VA (maximum)


• Output type: Total: 24 x IEC320 C13



- Accumulator 1: Output 1 - 12; 12 x C13

- Accumulator 2: Output 13 - 24 ; 12 x C13

• Rated output voltage: 100 - 240V AC


• Maximum output current (output): 10A maximum


• Maximum output current (accumulator): 16A maximum


• Maximum output current (total): 32A maximum


• Lifesaving: 2 x Lifesaving UL489 16A


• Measurement: Current accumulator level monitoring (via EC1000 Energy Box)


• Measurement accuracy: Current range: 0,1 A ~ 1 A +/- 0,1 A, 1 A ~ 20 A +/- 1 %



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità storage: 0 - 80% of relative humidity, without condensation



Dimensions

• Width: 130.00 cm


• Depthà: 4.40 cm


• Height: 4.40 cm


• Cable length: 1,6m



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 PDU Energy PE1324 (fixed supply cable from 150 cm - IEC 60309 – connector from 32A)


• 1 Mounting kit


• 1 User guide
