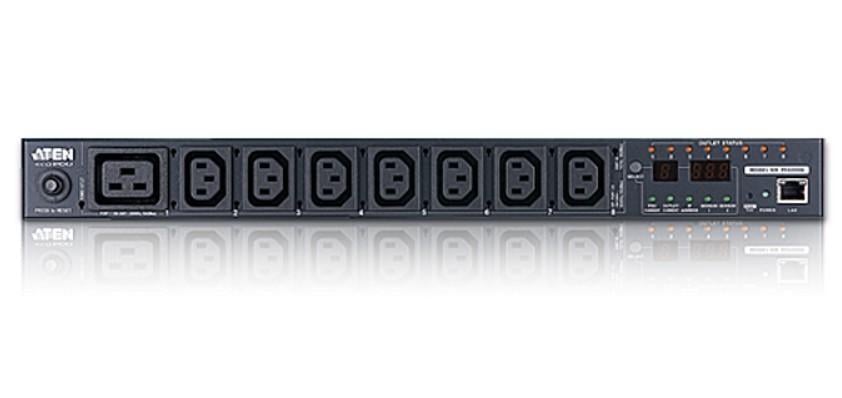

Rack PDU 7xC13+C19 PDU Measurement, Outlet Control PE6208GB - Aten I-CASE PE-6208GB

The PE6208 is a smart eco PDU that features 8 AC outlets available in IEC configurations. It provides centralized, secure, and intelligent power management for powering on, off, and cycling data center devices (servers, storage systems, KVM switches, network devices, serial devices, etc.). It also allows monitoring of the data center environment via sensors.
The eco PDUs offer remote power control with real-time measurements, allowing you to control and monitor the power status of devices connected to the PDUs at the PDU level, virtually from anywhere via TCP/IP connection.
The eco PDU supports any third-party V3 SNMP management software and eco Sensors (energy management software). eco Sensors offers a simple method to manage multiple devices, thanks to a user-friendly graphical user interface that allows you to configure a PDU device and monitor the power status of connected equipment. Thanks to eco Sensors, the sensor-ready eco PDU also offers comprehensive analysis reports broken down by department and location, providing precise real-time measurements of current, voltage, power, and watt-hours.
Thanks to advanced safety features and ease of operation, the eco PDU is the most convenient, comfortable and reliable way to remotely manage power in various IT installations and to allocate power resources as efficiently as possible.
Humidity/temperature sensors not included:

• I-CASE PE-EA1140 Temperature sensor

• I-CASE PE-EA1240 Temperature and humidity sensor

• I-CASE PE-EA1340 Differential pressure and temperature sensor


Power distribution

• Space-saving design for 1U rack mounting with rear mounting

• IEC outlet models

• The 3-digit, 7-segment LEDs on the front panel show current and IP address

• Remote monitoring of outlet status via browser

• Support for safe shutdown

• Separate power supply for the unit and its outlets. The user interface is accessible even in case of overload and activation of the device's circuit breaker.


Remote access

• Remote power control via TCP/IP and an embedded 10/100Mbps Ethernet port

• Network interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto-detection, Ping

• eco Sensors: eco PDU power management software

• SNMP Manager V3 support


Operation

• Scheduling control, IPV6, LDAP, Modbus (over TCP/IP), TACACS, Heart Beat (Watchdog), SSH, IEEE802.1x, rules, mail control, and automatic ping
• Remote control of output power (on, off, power reboot) for individual outlets

• Power-on sequence: users can set the power-on sequence and delay time for each port to allow equipment to be turned on in the correct order

• Ease of configuration and operation thanks to the browser-based interface
• Input: IEC 60320 C20, 100-240V~, 50/60Hz, 16A; input power: 3680 VA
• Output power outlets: IEC 7 IEC 60320 C13 (ports 2–8); 1 C19 (port 1)
• Multi-browser support (IE, Firefox, Chrome, Safari)

• RTC to keep timer active in case of power failure.

• Support for up to 8 user accounts and 1 administrator

• Proactive Overload Protection (POP) – automatically turns off outlets in case of current overloads to protect operating devices


Management

• Power status measurement at PDU and outlet level

• LED indicators for current and IP address at PDU level

• Current, voltage and kWh displayed in real time in a web interface for monitoring at PDU level

• Setting thresholds for current and voltage

• Ability to assign names to sockets

• User access assignment for individual outlets

• Event logging and syslog support

• Upgradable firmware

• Multilingual support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian


Security

• Power status measurement at PDU and outlet level

• Two-level password security

• Robust security features such as password protection and advanced encryption technologies: SSL at 128 bit

• Remote authentication support: RADIUS


eco Sensors energy management software

• Automatic discovery of all PE devices within the same intranet

• Real-time remote measurement and monitoring of power supply

• Real-time remote management of output outlets*

• Real-time remote monitoring of environmental sensors

• Tracking/monitoring of all PE devices

• Threshold exceeded alert via SMTP and Syslog

• Power analysis report


Technical specifications

• Output power outlets: 8

• Connectors:


Power input outlet: 1 IEC 60320 C20
Output power outlets: IEC 7 IEC 60320 C13 (ports 2–8); 1 C19 (port 1)
Sensor 2 RJ -11
LAN 1 RJ-45 (F)

• Switches:


Reset: 1 slightly recessed button
Power: 1 fuse-free circuit breaker

• Nominal input: from 100 to 240V~, 50/60Hz, 16A

• Input power: 3680 VA
• Nominal output: from 100 to 240 VAC; 50/60Hz, 10A (C13); 16A (C19)

LED

• Output status 8 (orange)
• Outlet / IP 1 digit 7 segments (orange)
• Current/outlet current/IP PDU 3 (green)
• Current/IP 3 digits 7 segments (orange)
• Power 1 (blue)
• 10/100 Mbps 1 (orange/green)
• Link 1 (green)
• Sensor 2 (green)

Environmental features

• Operating temperature: 0 - 50°C

• Storage temperature: -20 - 60°C

• Relative humidity from 0 to 80%, non-condensing


Dimensions

• Width: 43,24 cm

• Depth: 22,04 cm

• Height: 4,40 cm

• Power cable length: 3 m


Certifications

• CE

• FCC

• RoHS

• RAEE


Package contents

• 1 power distribution unit PE6208GB

• 1 power cable

• 1 rack mounting kit

• 1 instruction manual
