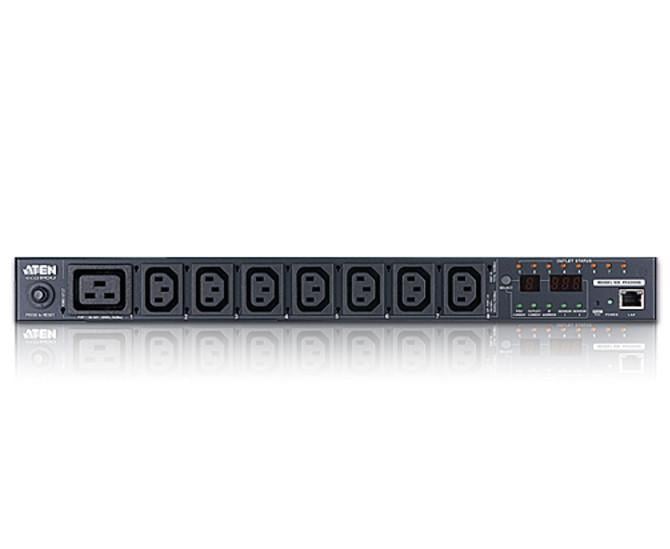

Rack PDU power strip 7xC13+C19 PDU Measurement, Socket Control PE8208 - Aten I-CASE PE-8208G

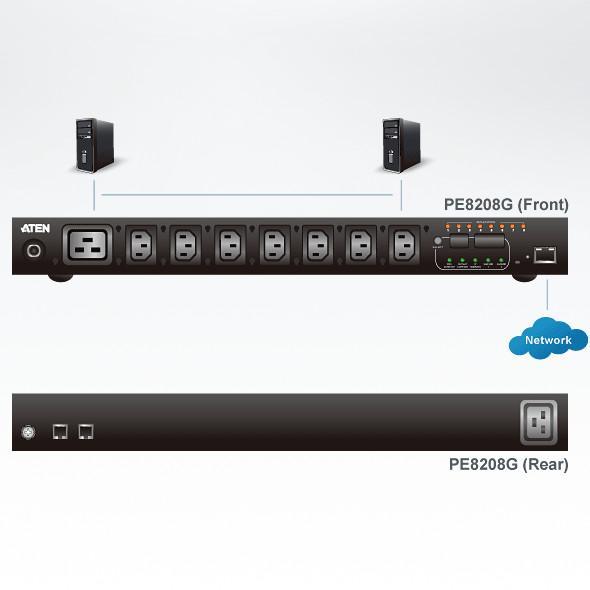

I-CASE PE-8208G è an intelligent PDU echo that has 8 AC sockets available in IEC configurations. It provides centralized, secure and intelligent power supply management with regard to the ignition, shutdown and cycle of data center devices (servers, storage systems, KVM switches, network devices, serial devices etc.). It also allows you to monitor the data center environment via sensors.

The eco PDUs offer remote control of the power supply with real-time measurements, allowing soì to control and monitor the power supply status of devices connected to PDUs at PDU level of socket, practically everywhere via TCP/IP connection.

The PDU supports any third-party V3 SNMP management software and eco Sensors (energy management software). eco Sensors offers an easy way to manage more ù devices, thanks to a user-friendly graphical user interface that allows you to configure a PDU device and monitor the power supply status of the equipment connected to it. Thanks to eco Sensors, the PDU eco designed for sensors also offers comprehensive analysis reports divided by department and location, providing precise measurements of current, voltage, power and watt hour in real time.

Thanks to the advanced safety features and the simplest à operation, the PDU è eco-eco is the most convenient, convenient and reliable way to remotely manage the power supply of different computer installations and allocate power resources as efficiently as possible.

Humidity sensors à/temperature not included:

• I-CASE PE-EA1140 Temperature sensor


• I-CASE PE-EA1240 Temperature and humidity sensor;


• I-CASE PE-EA1340 Differential pressure and temperature sensor



Distribution of power

• Design saves space for mounting in rack 1U with mounting on the back


• IEC socket models


• 3Digit LEDs and 7Segments on the front panel show current and IP address


• Remote monitoring of the status of the presets via browser


• Support for safe shutdown


• Separate power supply for the unit à and its sockets. The è user interface also accessible in case of overload and activation of the automatic switch of the device



Remote Access

• Remote control of power via TCP/IP and an Ethernet port from 10 / 100 Mbps built-in


• Network interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, Auto Detection, Ping


• eco Sensors: eco PDU power management software


• Support SNMP Manager V3



Operation

• Remote control of the output power supply (ignition, shutdown, power restart) for individual sockets


• Switch-on sequence: Users can set the ignition sequence and delay time for each port so that the equipment can be switched on in the right order


• Easy à configuration and operation thanks to browser-based interface


• Multibrowser support (IE, Firefox, Chrome, Safari)


• RTC to keep the timer active in the absence of power.


• Support up to 8 user account and 1 admin



Management

• PDU level feeding status measurement and sockets


• LED indicators for current and IP address at socket level


• Current, voltage, and kWH displayed in real time in a web interface for grip level monitoring


• Setting thresholds for current and voltage


• Possibility of assigning names to tricks


• Assignment of user access for individual sockets


• Event recording and syslog support


• Updated Firmware


• Multilingual support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian



Security

• Two-level password security


• Sturdy security features such as password protection and advanced encryption technologies: SSL to 128 bit


• Remote authentication support: RADIUS



Eco Sensors Energy Management Software

• Automatic discovery of all PE devices within the same intranet


• Real-time measurement and monitoring of power supply remotely


• Remote real-time output socket management*


• Remote Real-time Monitoring of Environmental Sensors


• Tracking/Monitoring of all PE devices


• Notice exceeding thresholds via SMTP and Syslog


• Feed Analysis Report



Output sockets for power supply

• Direct: 8



Connectors

• Input socket for power supply: 1 IEC 320 C20


• Output sockets: for power supply: IEC: 7 IEC 320 C 13 (doors 2 – 8); 1 C 19 (door 1)


• Sensor: 2 RJ -11


• LAN: 1 RJ-45 (F)



LED

• 8 exit state (orange)


• Take / IP 1 digit 7 segments (orange)


• Current/current socket/IP PDU 3 (green)


• Current/IP 3 digits 7 segments (orange)


• Power supply 1 (blue)


• 10 / 100 Mbps 1 (orange/green)


• Link 1 (green)


• 2 (green) sensor



Switches

• Restore: 1 button slightly recessed


• Power supply: 1 automatic switch without fuse



Nominal input

• 100 to 240 V~, 50 / 60 Hz, 16 A



Load Capacity

• 3840W



Nominal output

• For door: 100 to 240 V~, 50 / 60 Hz, 10 A (C 13 )


• For door: 100 to 240 V~, 50 / 60 Hz, 16 A (C 19 )


• Total: 100 to 240 V~; 50 / 60 Hz, 16 A



Environmental conditions

• Operating temperature 0 - 50°C


• Storage temperature -20 - 60°C


• Humidità relative from 0 to 80 %, without condensation



Proprietà physical

• Power cord length 3 meters


• Case: Metal


• Weight 2.87 kg


• Dimensions: (length x width.x height.) 43.24 x 21.93 x 4.40 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 unità PE power distribution8208


• 1 power cable


• 1 rack mounting kit


• 1 Software CD


• 1 user guide
