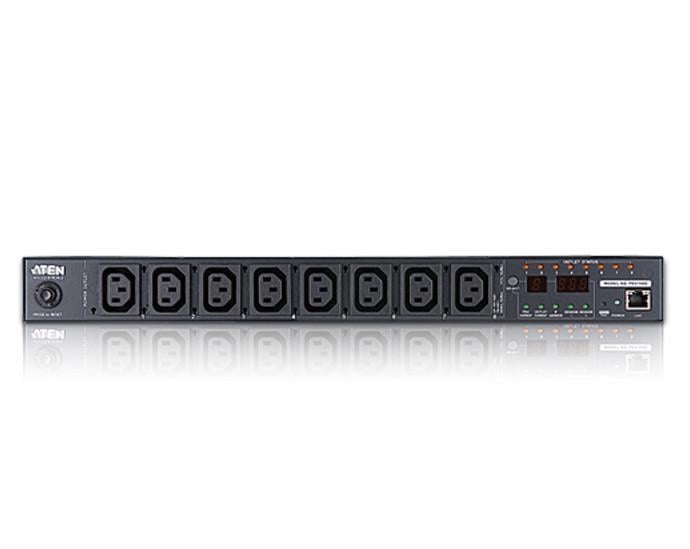

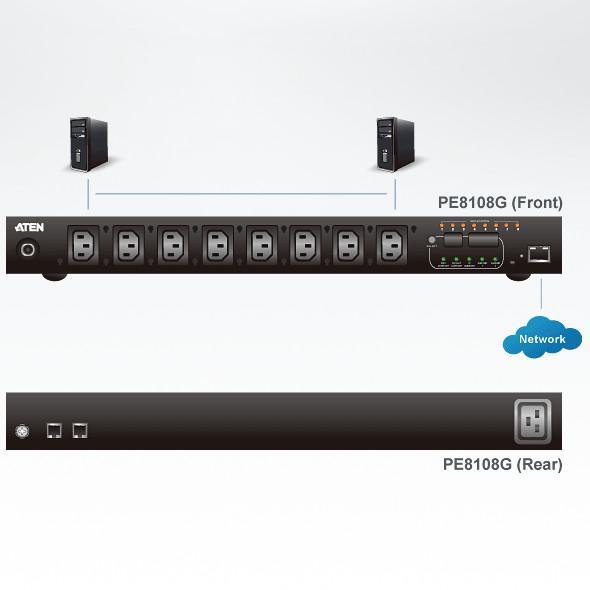

Rack PDU Power Strip 8x C13 PDU Measurement, Outlet Control - Aten I-CASE PE-8108G

I-CASE PE-8108G is an intelligent eco PDU that features 8 AC outlets available in IEC configurations. It provides centralized, secure and intelligent power management for powering on, off and cycling data center devices (servers, storage systems, KVM switches, network devices, serial devices, etc.). It also allows monitoring of the data center environment via sensors.

Eco PDUs offer remote power control with real-time measurements, thus allowing you to control and monitor the power status of devices connected to the PDUs at the outlet level, virtually from anywhere via TCP/IP connection.

The eco PDU supports any third-party V3 SNMP management software and eco Sensors (energy management software). eco Sensors offers a simple method to manage multiple devices, thanks to a user-friendly graphical user interface that allows you to configure a PDU device and monitor the power status of connected equipment. Thanks to eco Sensors, the sensor-ready eco PDU also offers comprehensive analysis reports broken down by department and location, providing precise real-time measurements of current, voltage, power, and watt-hours.

Thanks to advanced safety features and ease of operation, the eco PDU is the most convenient, comfortable and reliable way to remotely manage power in various IT installations and to allocate power resources as efficiently as possible.

Humidity/temperature sensors not included:

• I-CASE PE-EA1140 Temperature sensor


• I-CASE PE-EA1240 Temperature and humidity sensor


• I-CASE PE-EA1340 Differential pressure and temperature sensor



Power distribution

• Space-saving design for 1U rack mounting with rear mounting


• IEC outlet models


• The 3-digit, 7-segment LEDs on the front panel show current and IP address


• Remote monitoring of outlet status via browser


• Support for safe shutdown


• Separate power supply for the unit and its outlets. The user interface is accessible even in case of overload and activation of the device's circuit breaker.



Remote access

• Remote power control via TCP/IP and an embedded 10/100Mbps Ethernet port


• Network interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto-detection, Ping


• eco Sensors: eco PDU power management software


• SNMP Manager V3 support



Operation

• Remote control of output power (on, off, power reboot) for individual outlets


• Power-on sequence: users can set the power-on sequence and delay time for each port to allow equipment to be turned on in the correct order


• Ease of configuration and operation thanks to the browser-based interface


• Multi-browser support (IE, Firefox, Chrome, Safari)


• RTC to keep timer active in case of power failure.


• Support for up to 8 user accounts and 1 administrator



Management

• Power status measurement at PDU and outlet level


• LED indicators for current and IP address at outlet level


• Current, voltage and kWh displayed in real time in a web interface for outlet-level monitoring (PE8108 / PE8208)


• Setting thresholds for current and voltage


• Ability to assign names to sockets


• User access assignment for individual outlets


• Event logging and syslog support


• Upgradable firmware


• Multilingual support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian



Security

• Two-level password security


• Robust security features such as password protection and advanced encryption technologies: SSL at 128 bit


• Remote authentication support: RADIUS



eco Sensors energy management software

• Automatic discovery of all PE devices within the same intranet


• Real-time remote measurement and monitoring of power supply


• Real-time remote management of output outlets*


• Real-time remote monitoring of environmental sensors


• Tracking/monitoring of all PE devices


• Threshold exceeded alert via SMTP and Syslog


• Power analysis report



Output power outlets

• Direct: 8



Connectors

• Input power inlet: 1 IEC 320 C20


• Output power outlets: IEC: 8 IEC 320 C13


• Sensor: 2 RJ -11


• LAN: 1 RJ-45 (F)



LED

• Output status: 8 (orange)


• Socket / IP: 1 digit 7 segments (orange)


• Current/outlet current/PDU IP: 3 (green)


• Current/IP: 3 digits 7 segments (orange)


• Power: 1 (blue)


• 10/100 Mbps: 1 (orange/green)


• Link: 1 (green)


• Sensor: 2 (green)



Switches

• Reset: 1 slightly recessed button


• Power: 1 fuse-free circuit breaker



Nominal input

• From 100 to 240V~, 50/60Hz, 10A



Load capacity

• 2400W



Rated output

• Per port: From 100 to 240V~; 50/60Hz, 10A


• Total: From 100 to 240V~; 50/60Hz, 10A



Environmental conditions

• Operating temperature: 0 - 50°C


• Storage temperature: -20 - 60°C


• Humidity: Relative humidity from 0 to 80%, non-condensing



Physical properties

• Power cable length: 3 meters


• Case: Metal


• Weight: 2.87 kg


• Dimensions (length x width x height): 43.24 x 21.93 x 4.40 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 power distribution units PE8108G


• 1 power cable


• 1 rack mounting kit


• 1 CD software


• 1 user guide
