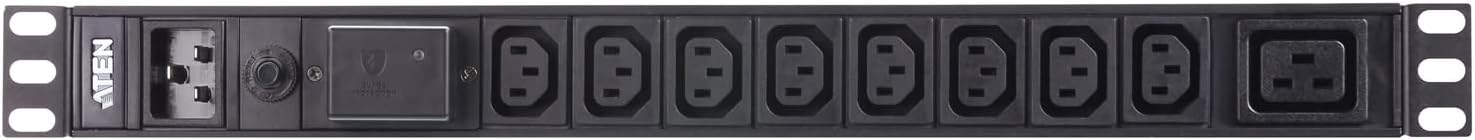

Rack PDU Multi-Station 1U 9 Overvoltage Protection Captures - I-CASE PE-0209SG

I-CASE PE- 0209 SG è a power distribution unit (PDU) for mounting on 1 U rack to 9 sockets offering IEC and NEMA sockets. Distributes the power supply to 9 taken from a single plug with unfiltered electrical pass-through. The PE 0209 S also offers overvoltage protection to protect equipment from damage in case of power surges and surges. The integrated overvoltage protection includes an LED indicator that allows you to know the state of the equipment.

Note: The warranty does not cover accessories outside the product, such as the overvoltage protection module.

The aluminium housing increases the life of the units; thanks to a sturdy case created with a shock-resistant material to ensure maximum durabilityà. The basic PDU 1U can ò be easily installed on a wall, wooden furniture or workstations.

•

• Design for mounting on racks of type 1 U in order to occupy less space

• IEC or NEMA output models

• Overvoltage protection

• Aluminum material

• Works with data centers, server rooms and telecommunications equipment


Technical Specifications

•

• Nominal input voltage: 100 - 240V AC

• Maximum input current: 16 A (maximum)

• Input frequency: 50 - 60 Hz

• Input connection: 16A

• Input power: 3680 VA (maximum)

• Output type: (8) IEC C 13 + (1) IEC C 19

• Maximum output current (output): IEC C13: Maximum 10 A, IEC C19: Maximum 16 A

• Maximum output current (accumulator): 16 A (maximum)

• Maximum output current (total): 16 A (maximum)

• Overcurrent Protection Device (OPD)


Dimensions

•

• Width: 48,20 cm

• Height: 4,44 cm

• Depthà: 4,50 cm


•

• CE

• RoHS

• RAEE


Package contents

•

• 1x PDU 1U I-CASE PE-0209SG

• 1x User manual
