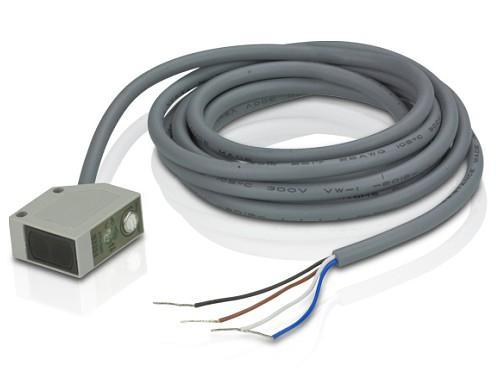

Optical Door Open Sensor - Aten I-CASE PE-EA1440

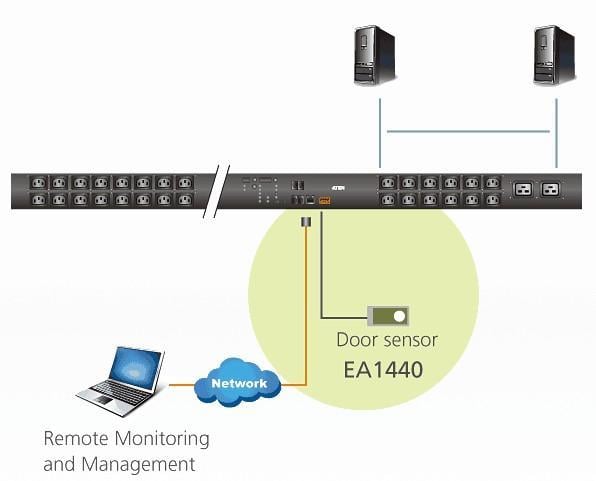

For data center security, ATEN provides door probes with optical sensors that work in tandem with PDUs and allow monitoring of the rack-mounted case door access, alerting the user when a door is opened. It is possible to monitor various conditions with alarms based on customized min/max thresholds.



* The sensor is an optional accessory; it is possible to use the ATEN PDU without port sensors. However, for complete data center security management and full utilization of ATEN solutions, sensor installation becomes necessary.



**Supports only the PE7/PE8/PE9 series



Features

• The optical door sensor allows monitoring of the rack-mounted case door access, alerting the user when a door is opened


• High sensitivity


• Easy operation



Technical specifications

• Detection distance: 10cm


• Operating voltage from 10 to 30 VCC; ripple < 20% da picco a picco


• Current consumption 30mA max.


• Output method: two outputs NPN & PNP


• Output state: normally open circuit type NO


• Output current: 150mA max.


• Leakage current: 0,8mA max.


• Residual voltage: 0,6V max.


• Protection circuit: short circuit and reverse polarity protection


• Response time: 1ms max.


• Sensitivity adjuster: rotary potentiometer from 270°


• Hysteresis 10% of the maximum detection distance


• Infrared LED emitter


• Lighting: sunlight < 10.000 Lux ; luce artificiale < 5.000 Lux


• Material: plastic



Certifications

• CE


• RAEE



Package contents

• 1 x Temperature sensor


• 1 x Adjustment tool


• 2 x Screws


• 1 x Bracket


• 1 x Velcro
